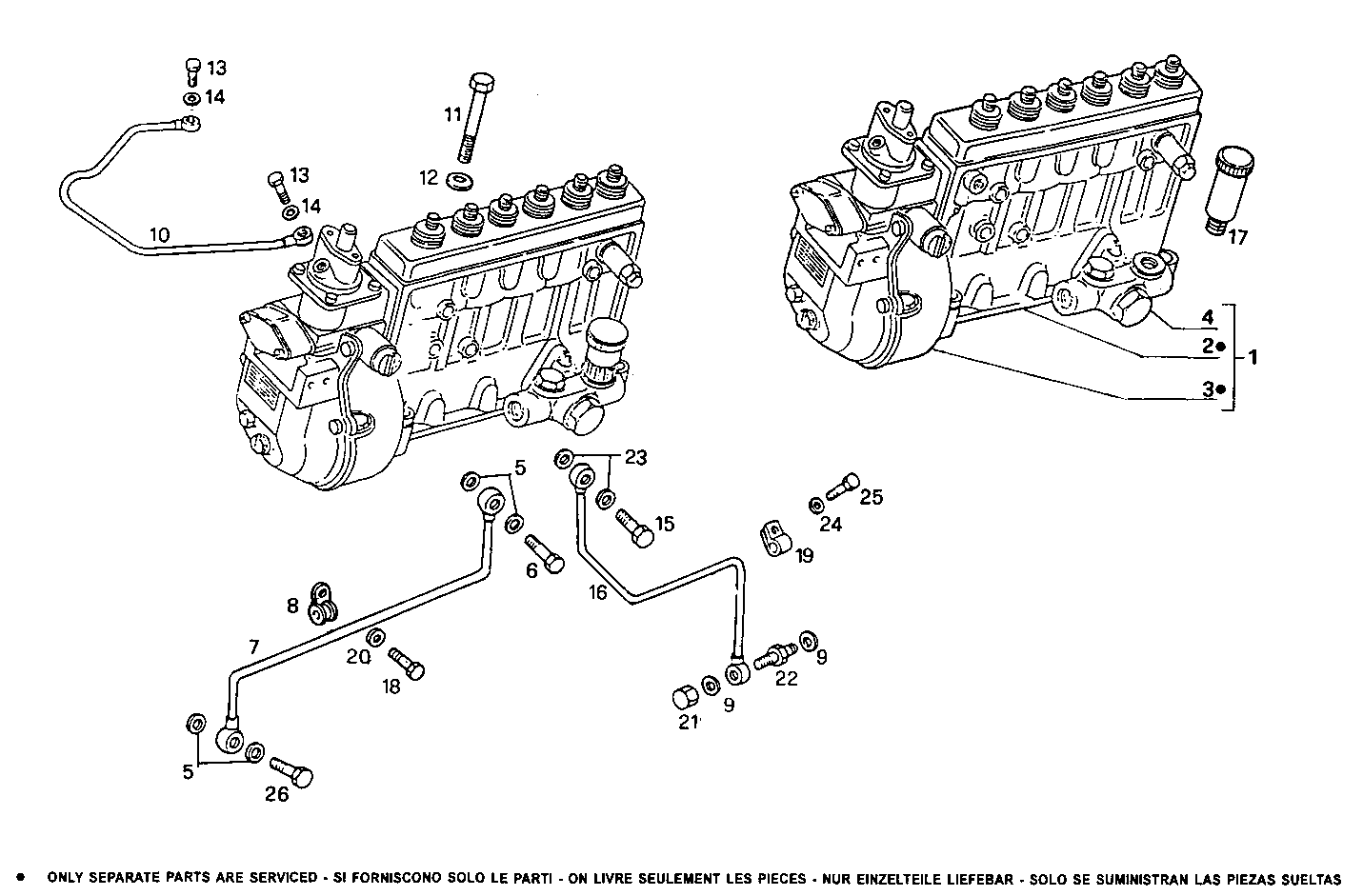

| Item |
Part number |
Description |
|
1 |
8029781 |
INLINE INJECT.PUMP ASSY |
|
4 |
8092637 |
FUEL PUMP OPT. |
|
5 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
6 |
98479387 |
SCREW CONNECTOR [from 301968] |
|
7 |
99431265 |
HYDRAULIC LINE |
|
8 |
99431539 |
PIPE CLIP VALEO 10"1/2 |
|
9 |
4837613 |
GASKET [up to ...] |
|
10 |
8020612 |
OIL LINE |
|
11 |
15971621 |
HEXAGON BOLT M10X1,25X90 MM |
|
12 |
11198374 |
SPRING WASHER Ø10X20 MM |
|
13 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
14 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
15 |
4864079 |
SCREW CONNECTOR M10X1 |
|
16 |
98443555 |
PIPE |
|
17 |
8011481 |
HAND PUMP |
|
18 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
19 |
17316190 |
PIPE CLIP Ø6 MM |
|
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
21 |
11902117 |
PLUG M10X1,25 |
|
22 |
4621393 |
THREADED UNION |
|
23 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
25 |
16605424 |
SCREW M8X16 MM (8.8) |
|
26 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
