8210SRi40.00

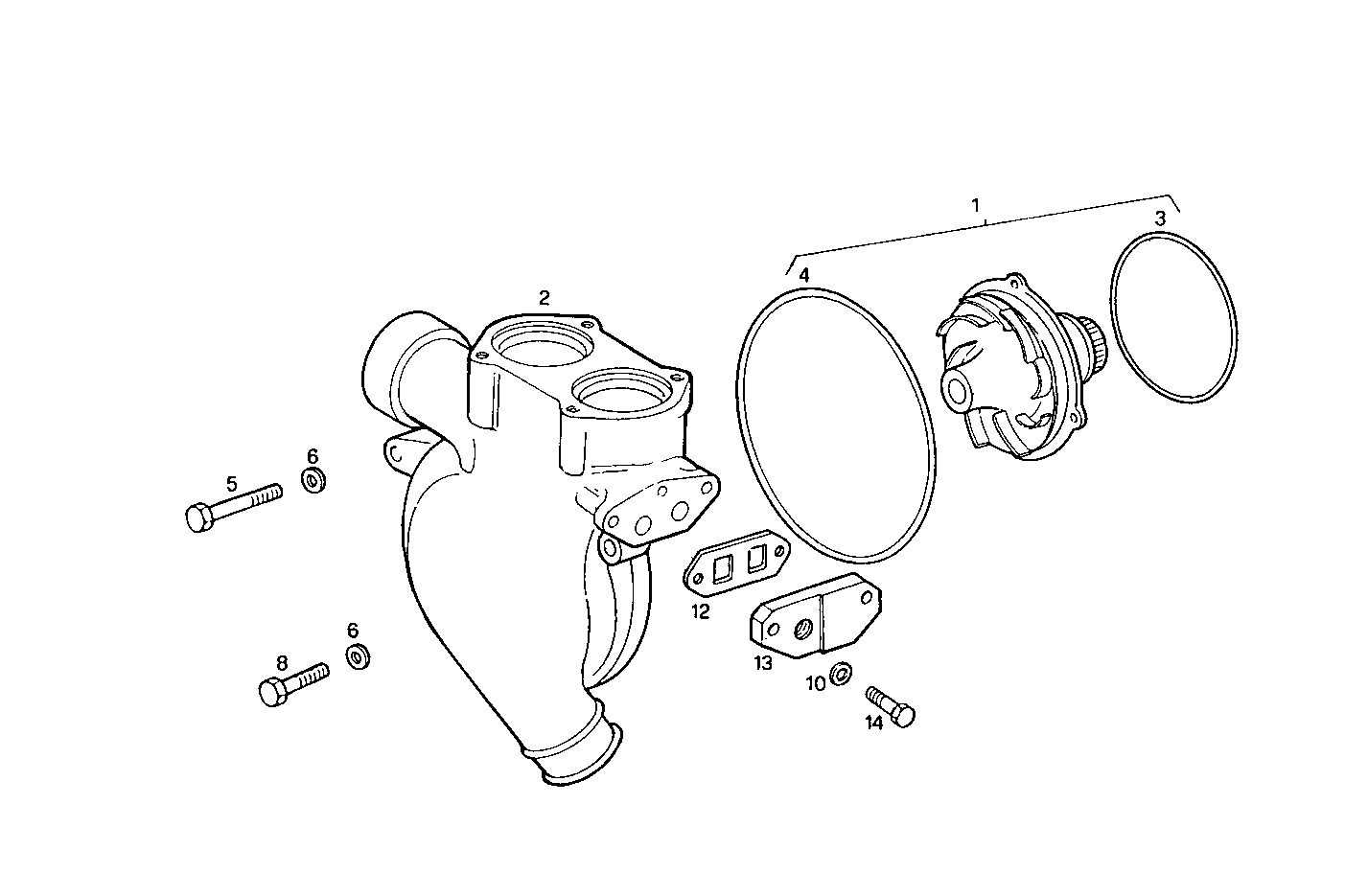

3200.077 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 500350785 | WATER PUMP |
| 2 | 99450904 | WATER PUMP HOUSING M8X1,25X30 MM |
| 3 | 17285281 | O-RING Ø71,12 MM SP=2,62 MM |
| 4 | 98461200 | O-RING Ø120,32 MM SP=2,62 |
| 5 | 15972824 | SCREW M10X1,25X150 |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 15972224 | HEXAGON BOLT M10X1,25X120 MM |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 61318823 | FLAT ENGINE GASKET |
| 13 | 8024591 | FLANGE |
| 14 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
