| Item |
Part number |
Description |
|

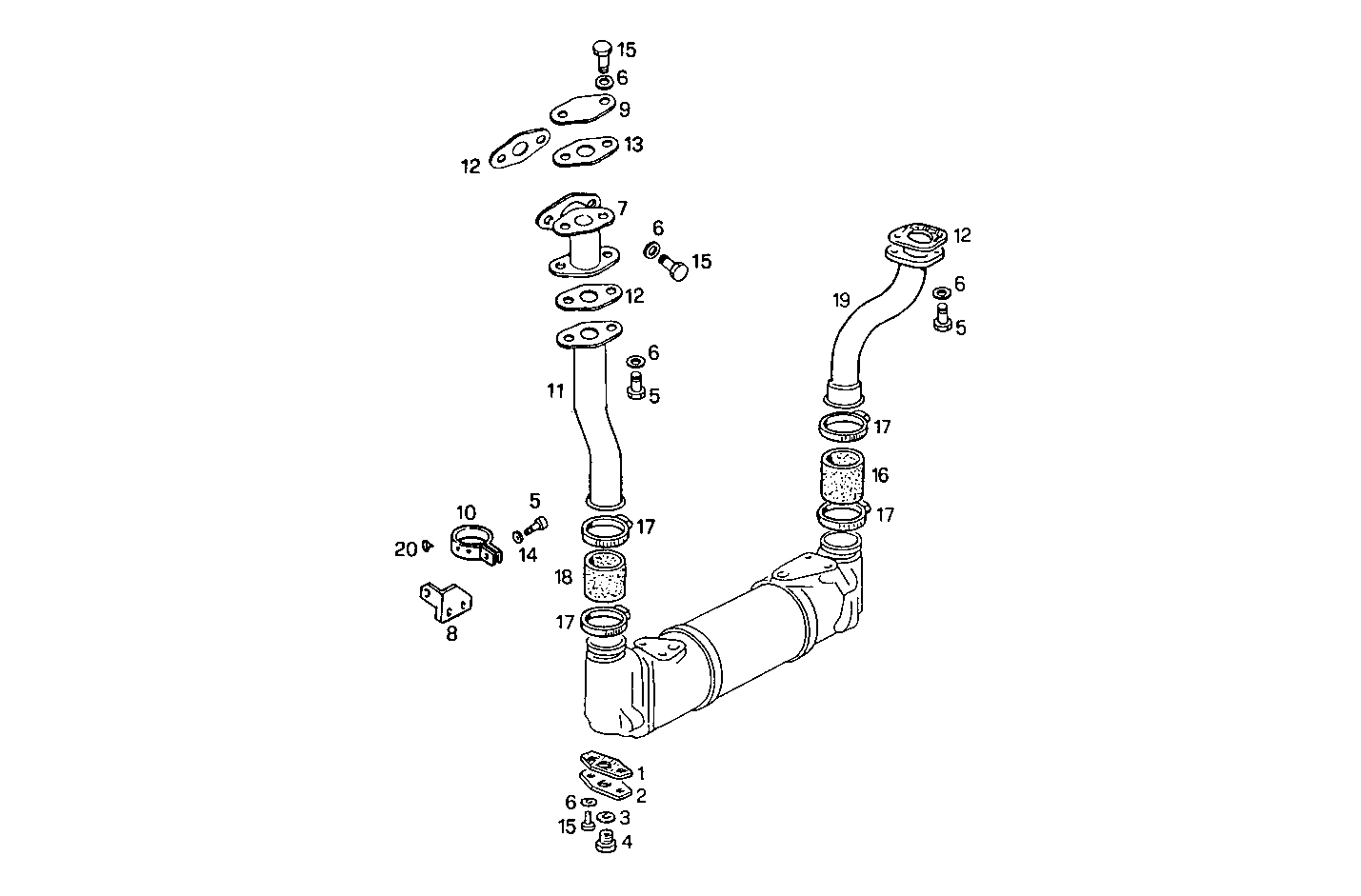

1 |
4863948 |
FLAT ENGINE GASKET |
|
2 |
4872744 |
COVER |
|
3 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
4 |
16992411 |
THREADED PLUG M16X1,5 |
|
5 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
6 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
7 |
4651305 |
INTAKE ELBOW |
|
8 |
4830268 |
FASTENING BRACKET |
|
9 |
1365519 |
FLANGE |
|
10 |
4640545 |
CLIP |
|
11 |
8028472 |
WATER PIPE |
|
12 |
4863951 |
FLAT ENGINE GASKET |
|
13 |
4863974 |
FLAT ENGINE GASKET |
|
14 |
17089574 |
WASHER Ø8X16 MM |
|
15 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
16 |
98437153 |
WATER HOSE |
|
17 |
17764892 |
PIPE CLIP Ø40-60 MM |
|
18 |
4863960 |
WATER HOSE |
|
19 |
4709713 |
WATER PIPE |
|
20 |
4565875 |
RUBBER PAD |
