8210SRM36.10

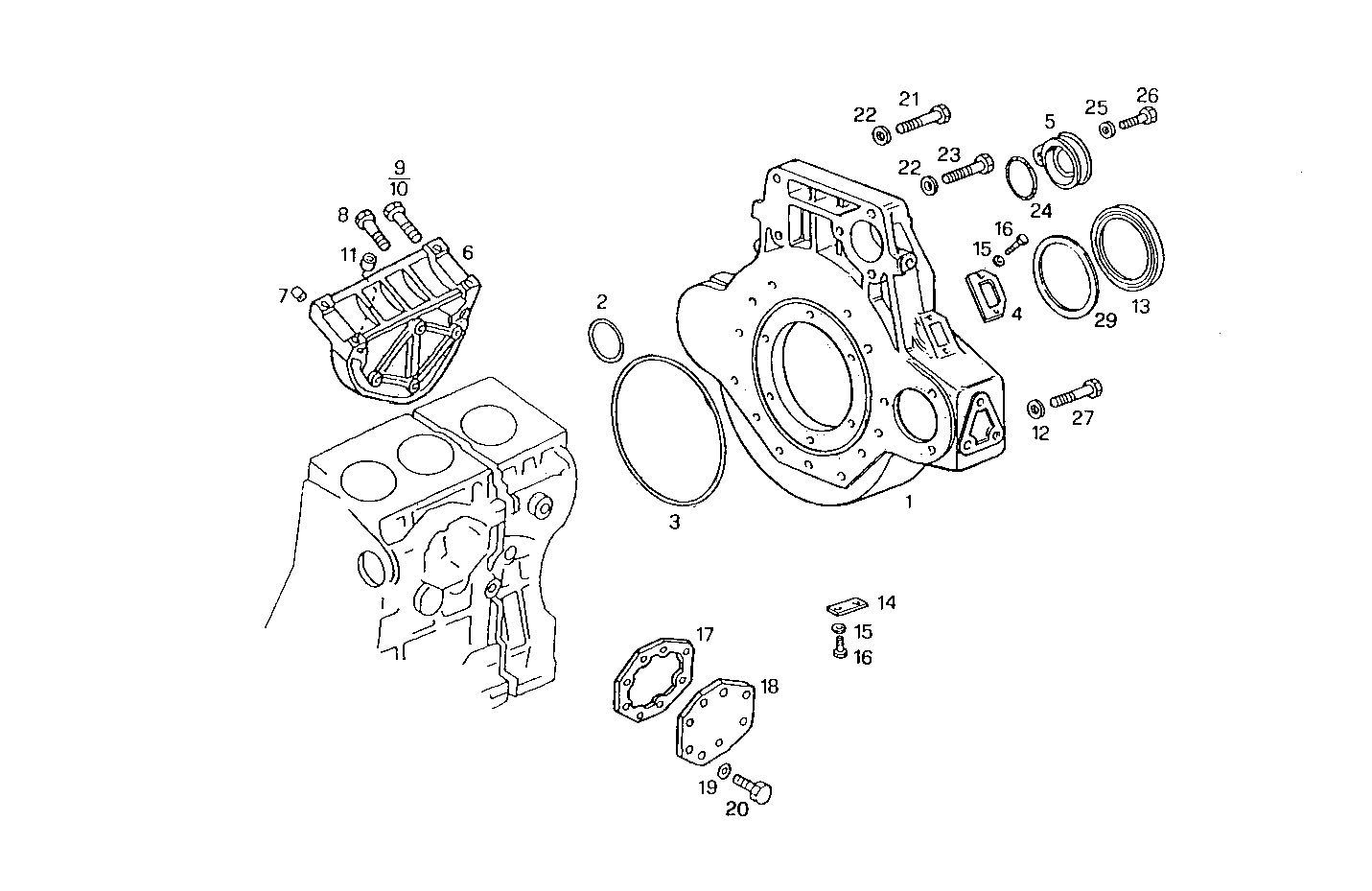

0430.000/02 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4649782 FLYWHEEL HOUSING ASSY
2 98464890 O-RING Ø74,6 MM SP=3,53 MM
3 14476581 O-RING SP=6,98 MM
4 4558988 REAR C.CASE COVER
5 4651691 COVER
6 4643582 SUPPORT
7 10837710 DOWEL PIN Ø10 MM
8 16326524 SCREW
9 16326824 LOCKING SCREW M12X60 MM
10 16327024 LOCKING SCREW M12X70 MM
11 4626942 DOWEL PIN
12 4837398 WASHER Ø12X28 MM SP=4 MM
13 40101433 SHAFT SEAL
14 4623266 STOP PLATE
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 16605424 SCREW M8X16 MM (8.8)
17 4863958 FLAT ENGINE GASKET
18 4530113 COVER
19 17088474 WASHER Ø6X12 MM
20 16603624 HEXAGON BOLT M6X16 MM (8.8)
21 15860130 HEXAGON BOLT M8X20 MM
22 4604279 SPRING WASHER Ø14X32 MM SP=4 MM
23 15977531 SCREW M14X1,5X60
24 17284281 O-RING Ø55,24X2,62 MM
25 17090174 SPRING WASHER Ø10X20 MM
26 15004021 HEXAGON BOLT M10X1,25X25 MM
27 15570731 SCREW
29 4692004 RING
