8210SRM36.10

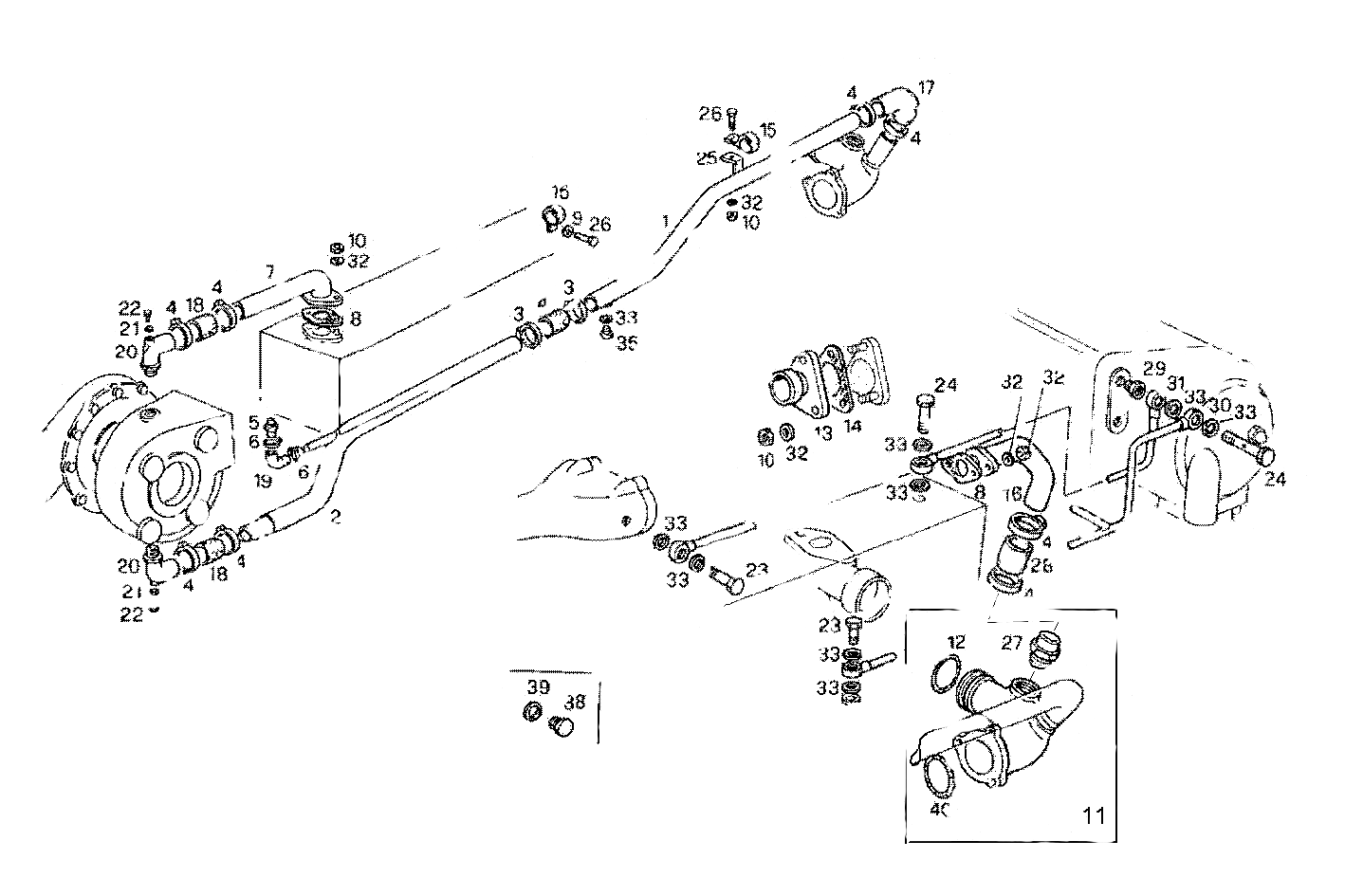

3210.034/03 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8110620 WATER PIPE
2 8110621 WATER PIPE
3 8110617 RUBBER SLEEVE
4 12177090 CLIP Ø32-52 MM
5 8114298 PIPE SOCKET [up to 15-12-03]
5 8024797 PIPE SOCKET M30X1,5
6 17764592 CLIP Ø20/32 MM
6 17764593 CLIP Ø20/32 MM
6 17764693 CLIP Ø25/40 MM
7 8109301 WATER PIPE
8 4918835 GASKET
9 11194079 SPRING WASHER Ø8X16 MM SP=1,9 MM
10 17037931 HEXAGON NUT M8X1,25
11 8110450 WATER PIPE
12 14471581 O-RING SP=5,33 MM
13 8110234 FLANGE
14 4533087 FLAT ENGINE GASKET
15 4928851 CLIP
16 8110631 WATER PIPE
17 8110497 CONNECTOR SLEEVE
18 4778438 RUBBER SLEEVE WATER
19 4780206 RUBBER SLEEVE
19 99452230 RUBBER SLEEVE Ø50 MM
20 8110480 PIPE SOCKET
21 10298360 SEAL GASKET Ø10X16 MM SP=1 MM
22 11903140 PLUG M10X1,25
23 4864082 BANJO BOLT M12X1,5X25 MM
24 4930504 SCREW CONNECTOR
25 8100819 RETAINER
26 16605524 HEXAGON BOLT M8X20 MM
27 8110595 PIPE SOCKET
28 8110724 RUBBER SLEEVE
29 4927823 SCREW CONNECTOR
30 8111157 WATER PIPE
31 8110657 WATER PIPE
33 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
34 16605624 HEXAGON BOLT M8X25 MM (8.8)
34 4629165 SCREW CONNECTOR M12X1,5X37 MM
35 10300511 LOCK PLUG M12X1,5
38 10300940 PLUG M8
39 10260060 SEAL GASKET Ø8X12X1 MM
40 17290181 O-RING Ø59,92 MM SP=3,53 MM
