8210SRM36.10

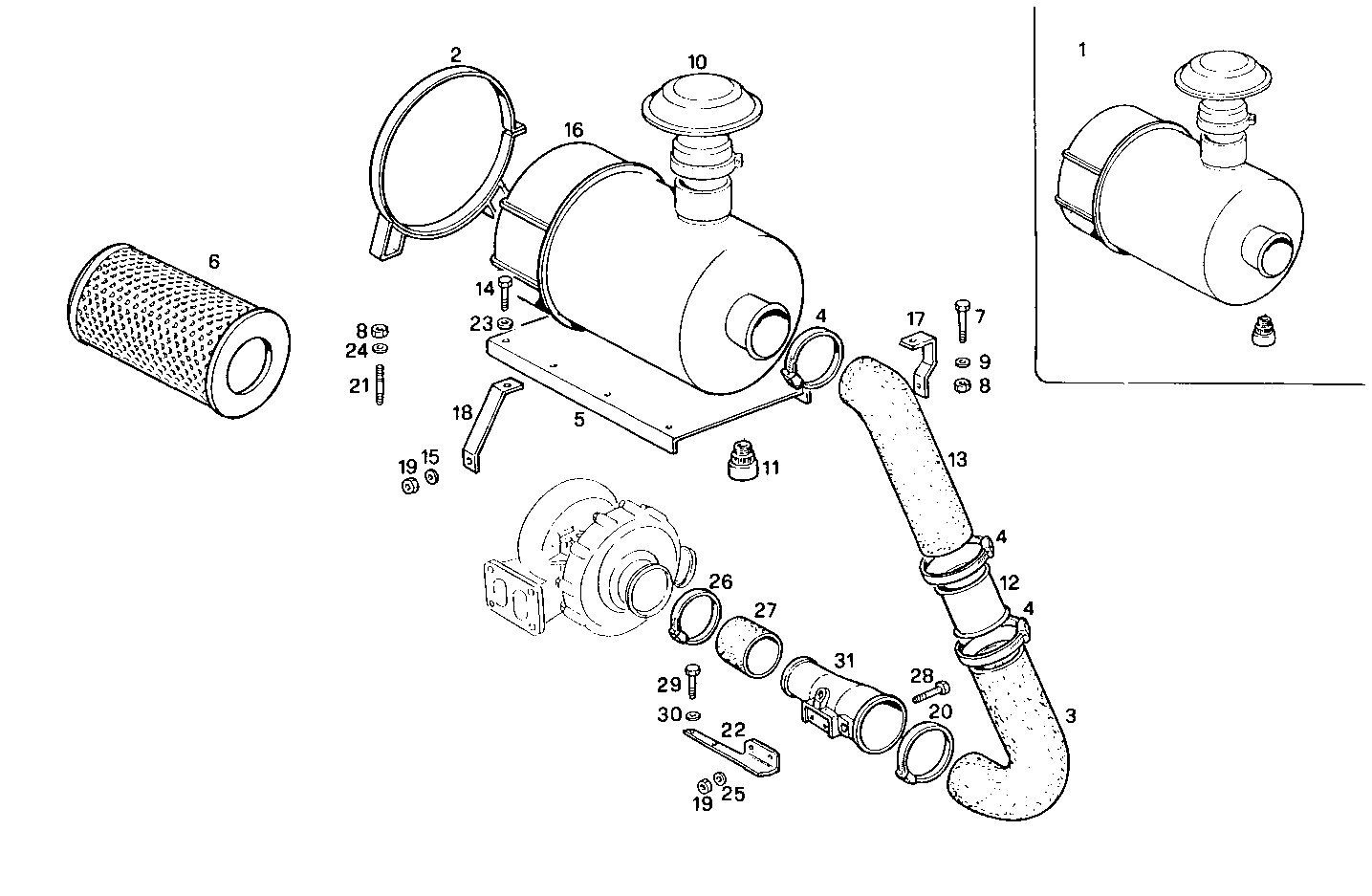

A21170042 DRY AIR CLEANER - with electric clogging gauge

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8107808 AIR CLEANER
2 8105666 RETAINER
3 8113939 FILTER HOSE
4 17766093 CLIP Ø160/180 MM
5 8005146 SUPPORT
6 1904550 AIR FILTER ELEMENT
7 15004021 HEXAGON BOLT M10X1,25X25 MM
8 12164711 HEXAGON NUT M10X1,25
9 11198479 SPRING WASHER Ø10X27 MM SP=2,8
10 8105664 COVER
11 2427063 AIR PRESSURE GAUGE
12 8113940 AIR PIPE/DUCT
13 8113938 FILTER HOSE
14 15540321 HEXAGON BOLT M12X1,25X25 MM
15 11198179 WASHER Ø8X22X2,2 MM
16 8105663 AIR CLEANER
17 8114110 RETAINER
18 8114102 RETAINER
19 17037931 HEXAGON NUT M8X1,25
20 17765793 CLIP Ø130/150 MM
21 13449321 STUD M10X1,25X15X20 MM
22 8113937 RETAINER
23 11190879 SPRING WASHER Ø12X30X3,0 MM
24 11190579 SPRING WASHER Ø10X20 MM SP=2,3
25 11198079 SPRING WASHER Ø8,2 MM
26 8005839 CLIP
27 8030531 TURBOCHARGER HOSE
28 16043821 HEXAGON BOLT M8X30 MM
29 16043621 HEXAGON BOLT M8X25 MM
31 4817877 AIR PIPE/DUCT [from 205659]
