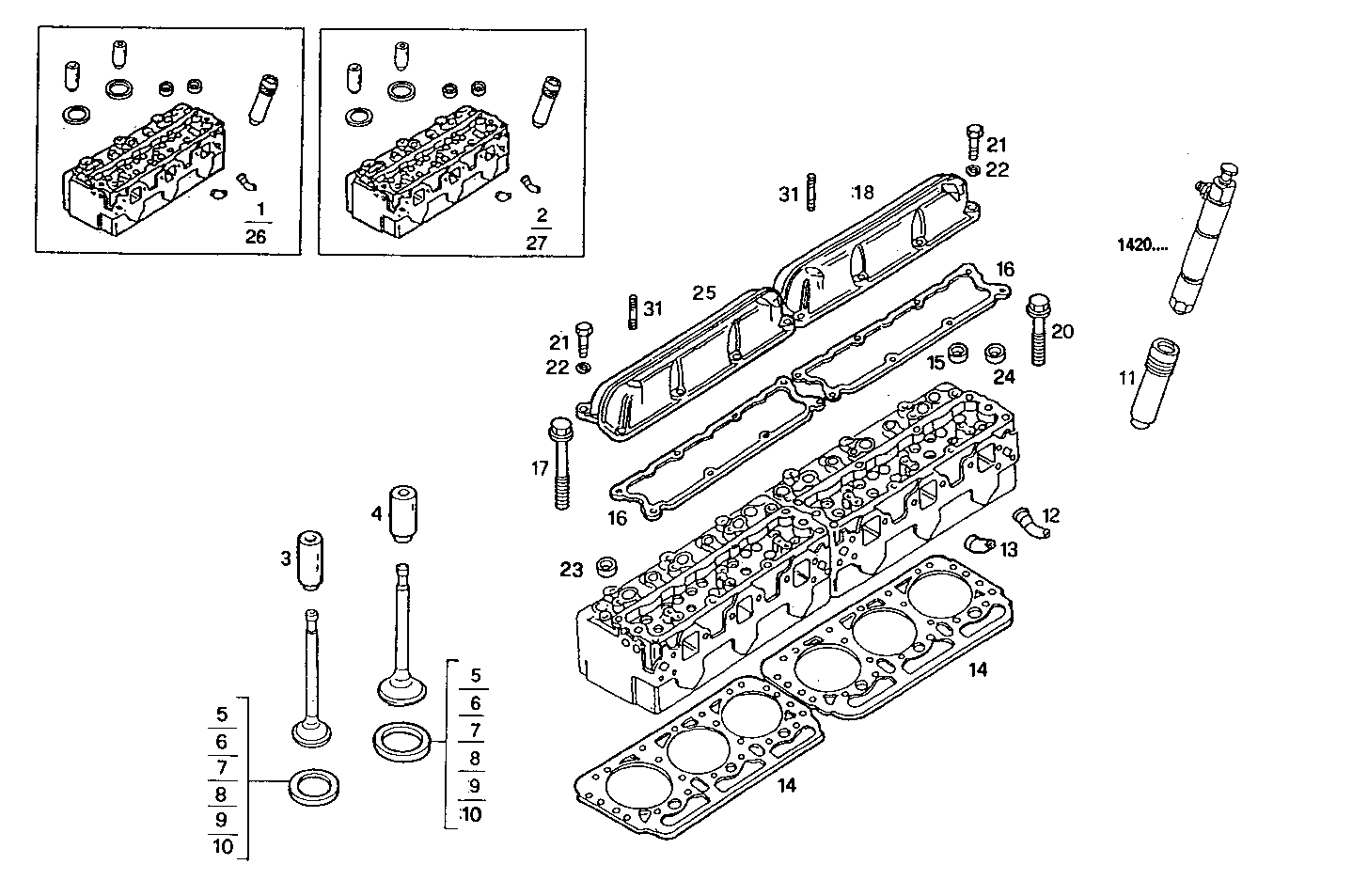

| Item |
Part number |
Description |
|
1 |
4792355 |
CYLINDER HEAD ASSY FRONT [up to 258269] |
|
2 |
4792356 |
CYLINDER HEAD ASSY REAR [up to 258269] |
|
3 |
4630923 |
VALVE GUIDE |
|
4 |
4648237 |
VALVE GUIDE |
|
5 |
4673863 |
VALVE SEAT STD. |
|
6 |
4673866 |
VALVE SEAT +0.20 |
|
7 |
4673867 |
VALVE SEAT +0.05 |
|
8 |
4849707 |
VALVE SEAT STD. [from 258270] |
|
9 |
4849715 |
VALVE SEAT +0.20 [from 258270] |
|
10 |
4849716 |
VALVE SEAT +0.05 [from 258270] |
|
11 |
4673598 |
NOZZLE HOLDER SEAT |
|
12 |
4638192 |
PIPE |
|
13 |
4623879 |
PIPE |
|
14 |
99484354 |
CYL.HEAD GASKET |
|
15 |
16991070 |
LOCK PLUG Ø32 MM |
|
16 |
98480127 |
HEAD COVER GASKET [from 08-97] |
|
17 |
4769616 |
CYL.HEAD STUD |
|
18 |
8111179 |
CYL. HEAD COVER |
|
20 |
4769615 |
SCREW |
|
21 |
16606424 |
HEXAGON BOLT M8X65 MM |
|
22 |
17094914 |
WASHER 8x16 |
|
23 |
14324801 |
LOCK PLUG M12X1,5 |
|
24 |
14282370 |
LOCK PLUG Ø25 MM |
|
25 |
98474814 |
CYL. HEAD COVER |
|
26 |
500330966 |
CYLINDER HEAD ASSY FRONT [from 01-99] |
|
27 |
500330967 |
CYLINDER HEAD ASSY REAR [from 01-99] |
|
31 |
13543324 |
STUD M8X16X20 |
