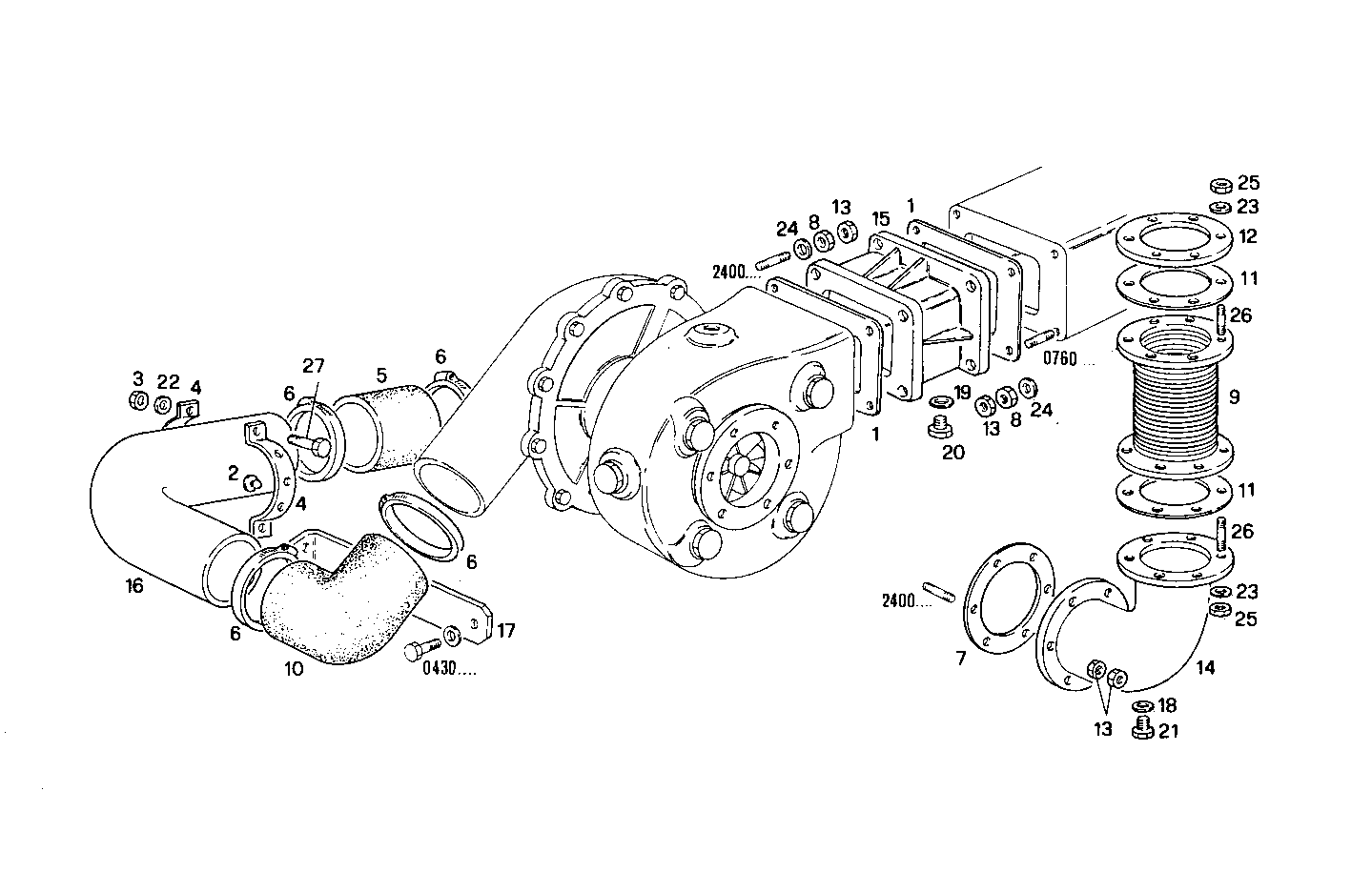

| Item |
Part number |
Description |
|
1 |
4512366 |
GASKET |
|
2 |
1366290 |
RUBBER LUG |
|
3 |
17037931 |
HEXAGON NUT M8X1,25 |
|
4 |
4736656 |
CLIP |
|
5 |
4773335 |
TURBOCHARGER HOSE |
|
6 |
4788410 |
CLIP Ø92/98 MM |
|
7 |
4873910 |
GASKET |
|
8 |
4927248 |
NUT M10X1,25 |
|
9 |
8101671 |
EXHAUST BELLOWS |
|
10 |
4918966 |
RUBBER SLEEVE |
|
11 |
8009600 |
GASKET |
|
12 |
8103591 |
FLANGE |
|
13 |
8100961 |
NUT M10X1,25 |
|
14 |
8104510 |
EXHAUST ELBOW |
|
15 |
8109096 |
EXHAUST ELBOW |
|
16 |
8005759 |
INTAKE ELBOW |
|
17 |
8109403 |
RETAINER |
|
18 |
10260160 |
SEAL GASKET Ø10X14 MM SP=1 MM |
|
19 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
20 |
10300540 |
PLUG M12X1,5 |
|
21 |
11903111 |
LOCK PLUG M10X1,25 |
|
22 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
23 |
11190579 |
SPRING WASHER Ø10X20 MM SP=2,3 |
|
24 |
12638601 |
WASHER Ø10X18 MM |
|
25 |
17038221 |
HEXAGON NUT M10 |
|
26 |
13449524 |
STUD M10X1,25X15X25 |
|
27 |
16043621 |
HEXAGON BOLT M8X25 MM |
