8210SRM36.12

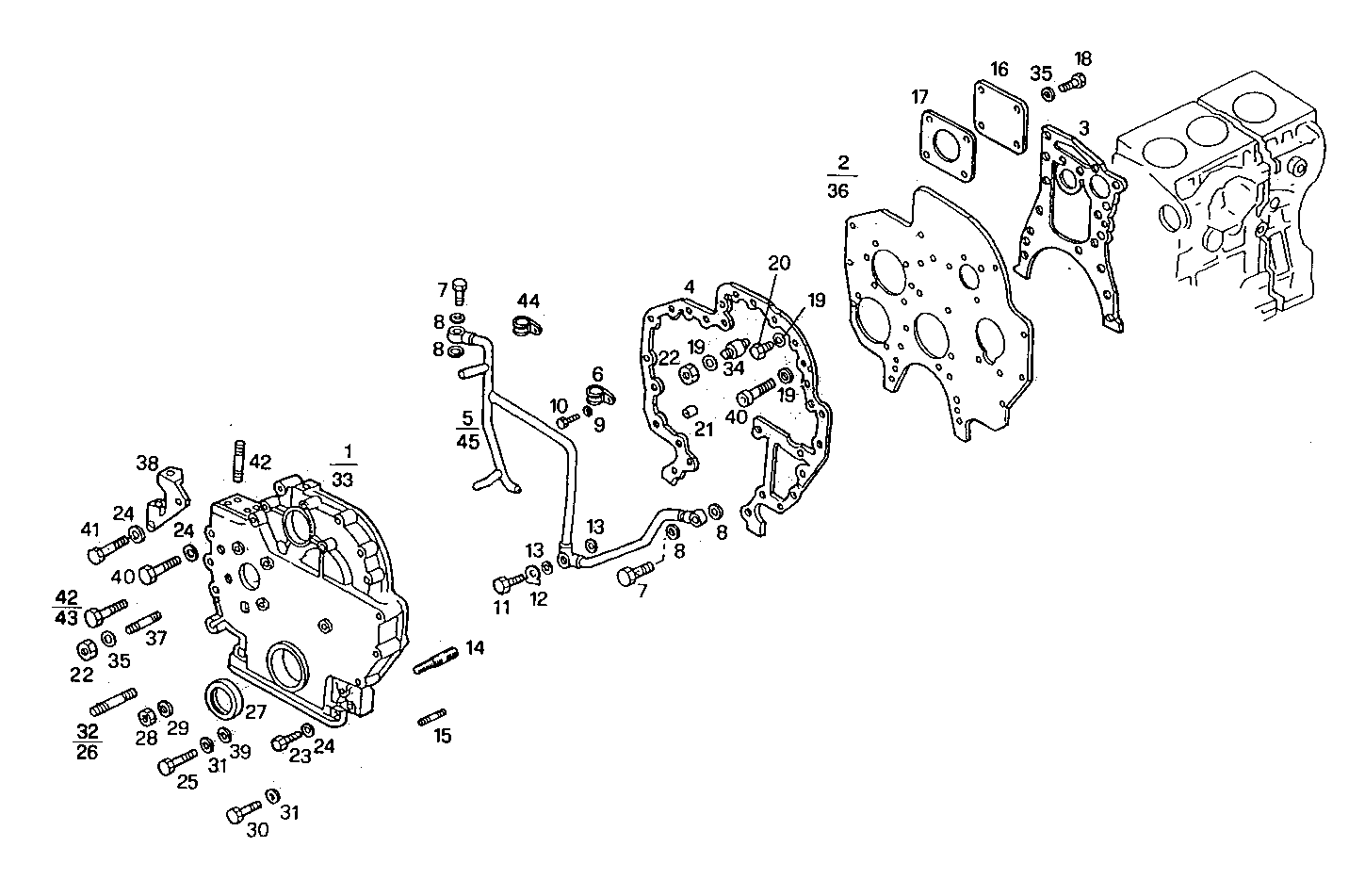

0430.055/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 98420717 FRONT C.CASE COVER ASSY [up to ...]
2 4715165 PLATE [up to ...]
3 99431449 FLAT ENGINE GASKET
4 98431737 FLAT ENGINE GASKET [from ...]
5 4842376 HYDRAULIC LINE [up to 419249]
6 852410 FASTENING BRACKET
7 4707984 SCREW CONNECTOR
8 10262760 SEAL GASKET Ø8,2 MM
9 17094914 WASHER 8x16
10 16042924 SCREW M8X1,25X10 MM
11 4679620 SCREW CONNECTOR
12 852409 LOCKING PLATE Ø10,5 MM
13 4858606 GASKET Ø10X14X1 MM
14 4628504 STUD
15 4666138 STUD
16 8110851 COVER
17 98424208 GASKET
18 15970624 HEXAGON BOLT M12X1,25X22 MM
19 17090274 WASHER Ø10X20 MM
20 15970730 HEXAGON BOLT M10X25 MM
21 10837810 DOWEL PIN Ø12 MM
22 17038221 HEXAGON NUT M10
23 16606424 HEXAGON BOLT M8X65 MM
24 17094924 WASHER Ø8X16 MM
25 16045124 HEXAGON BOLT M8X95
26 13454624 STUD M10X25X75
27 98467211 WASHER FRONT
28 17038521 HEXAGON NUT M12X1,5
29 12646904 WASHER
30 15971724 HEXAGON BOLT M10X1,25X95 MM
31 17095104 WASHER Ø10X21X2 MM
32 13453724 STUD M10X25X30
33 98430321 FRONT C.CASE COVER ASSY [from ...]
34 13449330 STUD M10X15X20 MM
35 17090174 SPRING WASHER Ø10X20 MM
36 98430318 PLATE [from ...]
37 13450524 STUD
38 4805220 PLATE
39 11190174 WASHER
40 14307430 SOCKET-HEAD SCREW M10X1,25X25 MM
41 16606524 HEXAGON BOLT M8X70 MM
42 15972321 HEXAGON BOLT M10X125 MM
43 15972221 SCREW M10X1,25X120
44 4656139 FASTENING BRACKET
45 500302886 HYDRAULIC LINE [from 419250]
