8210SRM36.12

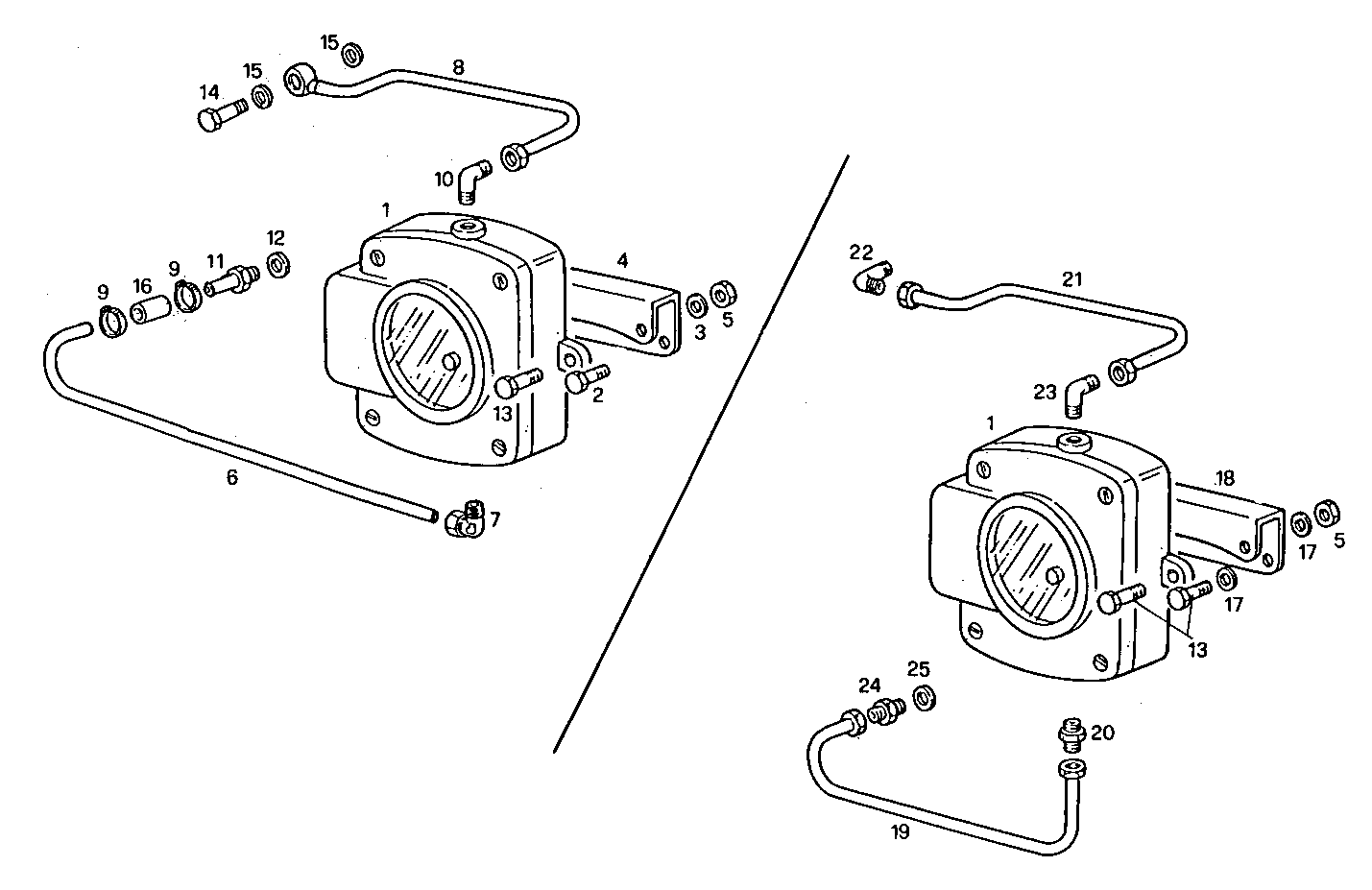

5610.001 INSTRUMENTS

Iveco/FPT INSTRUMENTS

Item Part number Description
1 8111513 TRANSMITTER [up to 08-94]
2 16043621 HEXAGON BOLT M8X25 MM
3 11194079 SPRING WASHER Ø8X16 MM SP=1,9 MM
4 8103332 RETAINER [up to 09-89]
5 17037931 HEXAGON NUT M8X1,25
6 8113338 WATER PIPE [up to 09-89]
7 8111456 PIPE SOCKET
8 8113337 WATER PIPE [up to 09-89]
9 12176090 CLIP DIA 25/40 [up to 09-89]
10 8111313 PIPE SOCKET [up to 08-94]
11 8109345 PIPE SOCKET [up to 09-89]
12 10263160 SEAL GASKET Ø18X24 MM SP=1 MM
13 16043521 SCREW M8X22
14 10181701 SCREW CONNECTOR [up to 09-89]
15 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
16 8109346 RUBBER SLEEVE
17 11193879 SPRING WASHER Ø8X16 MM
18 8005358 RETAINER [from 09-89]
19 8005360 WATER PIPE [from 09-89]
20 8005782 PIPE SOCKET
21 8005359 WATER PIPE [from 09-89]
22 8112247 PIPE SOCKET
23 8111410 PIPE SOCKET [from 09-89]
24 4741602 THREADED UNION LEFT
25 10257460 SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...]
