8210SRM36.12

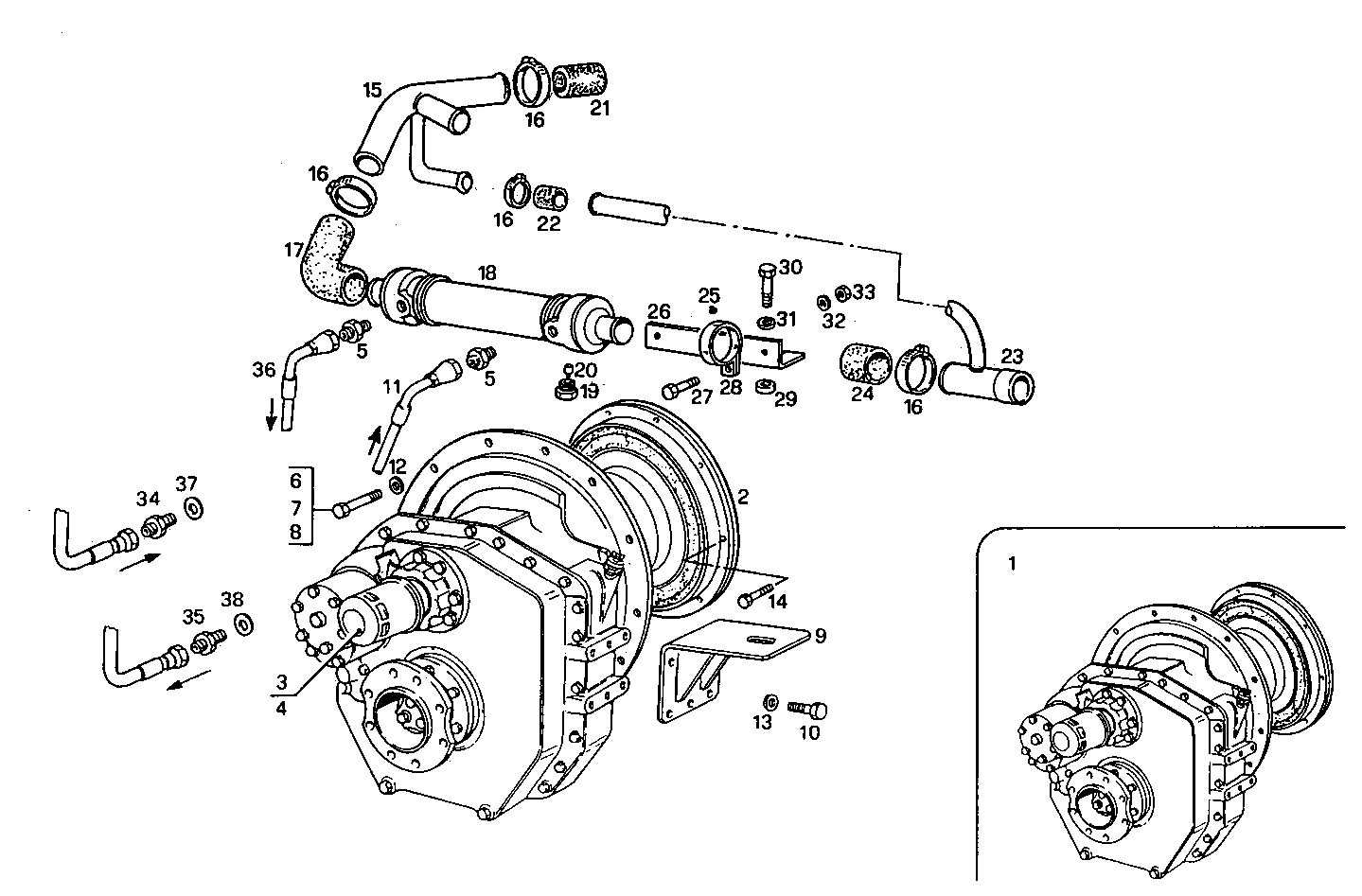

A50410004 MARINE GEAR ZF-MPM IRM 320 A-1 - ratio 2.52:1 with R.I.N.A. test

Iveco/FPT MARINE GEAR ZF-MPM IRM 320 A-1

Item Part number Description
1 8023476 MARINE GEAR 2,52:1
2 8023060 FLEXIBLE COUPLING
3 8111320 OIL FILTER CARTRIDGE
4 8111321 OIL FILTER CARTRIDGE
5 4932262 PIPE SOCKET
6 11306921 SCREW M10X1,25X30
7 10923621 HEXAGON BOLT M10X1,25X35 MM
8 11307021 HEXAGON BOLT M10X40 MM
9 8108819 SUPPORT
10 4932875 SCREW M16X2X45
11 8105226 HOSE
12 17090174 SPRING WASHER Ø10X20 MM
13 11200279 SPRING WASHER Ø17 MM
14 14474421 SCREW M12X35
15 8112191 WATER PIPE
16 17765093 CLIP Ø60/80 MM
17 8112192 RUBBER SLEEVE
18 8109142 MARINE GEAR OIL HEAT EXCH ASSY
19 8105276 PLUG M16
20 8105277 SACRIFICAL ANODE Ø14 MM
21 8112176 RUBBER SLEEVE
22 8110724 RUBBER SLEEVE
23 8111659 WATER PIPE
24 4765112 RUBBER SLEEVE
25 4565875 RUBBER PAD
26 8105222 RETAINER
27 15540421 SCREW M12X1,25X30
28 8104042 CLIP
29 4932695 WASHER
30 4928414 SCREW
31 11190579 SPRING WASHER Ø10X20 MM SP=2,3
32 11198679 SPRING WASHER Ø13 MM
33 16101511 HEXAGON NUT M12X1,25
34 8026716 PIPE SOCKET
35 8026676 PIPE SOCKET
36 8105620 HOSE
37 11271460 GASKET Ø21X26X1,5 MM
38 10263460 WASHER Ø22X28X1,5 MM
