8210SRM36.12

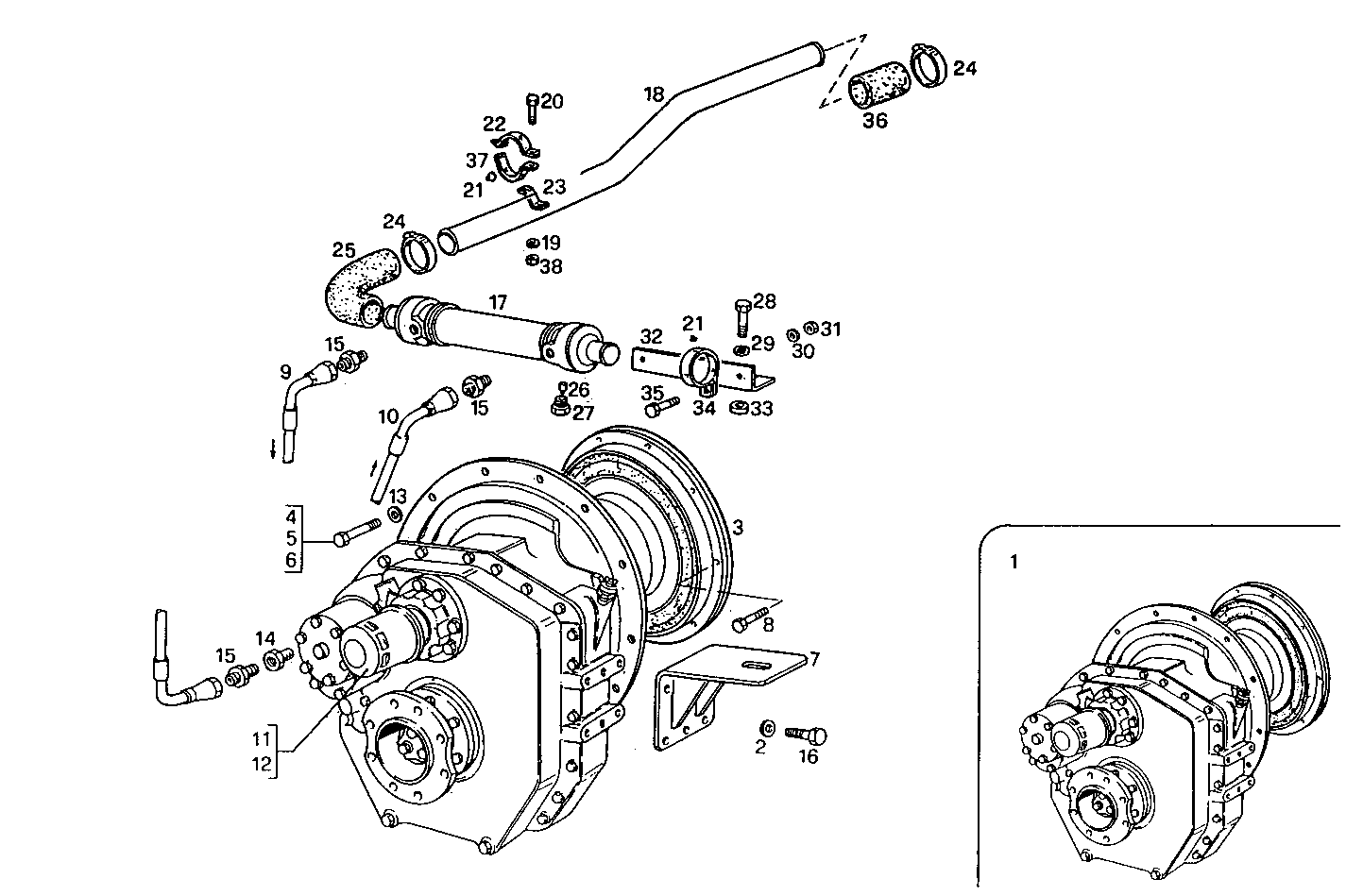

A50560023 MARINE GEAR ZF-MPM IRM 320-1 - ratio 2.96:1 with R.I.N.A. test

Iveco/FPT MARINE GEAR ZF-MPM IRM 320-1

Item Part number Description
1 8026499 MARINE GEAR 2,96:1
2 11200279 SPRING WASHER Ø17 MM
3 8023074 FLEXIBLE COUPLING
4 11306921 SCREW M10X1,25X30
5 15970921 HEXAGON BOLT M10X1,25X35 MM
6 10923621 HEXAGON BOLT M10X1,25X35 MM
7 8108819 SUPPORT
8 14274421 LOCKING SCREW M8X60 MM
9 8105620 HOSE
10 8105226 HOSE
11 8007794 OIL FILTER CARTRIDGE ALTERNATIVE USE
12 8007795 OIL FILTER CARTRIDGE ALTERNATIVE USE
13 17090174 SPRING WASHER Ø10X20 MM
14 4935508 PIPE SOCKET
15 4932262 PIPE SOCKET
16 4932875 SCREW M16X2X45
17 8109142 MARINE GEAR OIL HEAT EXCH ASSY
18 8013909 SEA WATER PIPE
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 4565875 RUBBER PAD
22 8113295 CLAMP Ø50 MM
23 8006219 RETAINER
24 17764993 CLIP Ø50/70 MM
25 8110487 WATER HOSE
26 8105277 SACRIFICAL ANODE Ø14 MM
27 8105276 PLUG M16
28 16607924 HEXAGON BOLT M10X1,5X40 MM
29 11190579 SPRING WASHER Ø10X20 MM SP=2,3
30 11198679 SPRING WASHER Ø13 MM
31 16101511 HEXAGON NUT M12X1,25
32 8105222 RETAINER
33 4932695 WASHER
34 8104042 CLIP
35 15540421 SCREW M12X1,25X30
36 4765112 RUBBER SLEEVE
37 8113296 CLAMP Ø50 MM
38 17037931 HEXAGON NUT M8X1,25
