8210SRM36.32

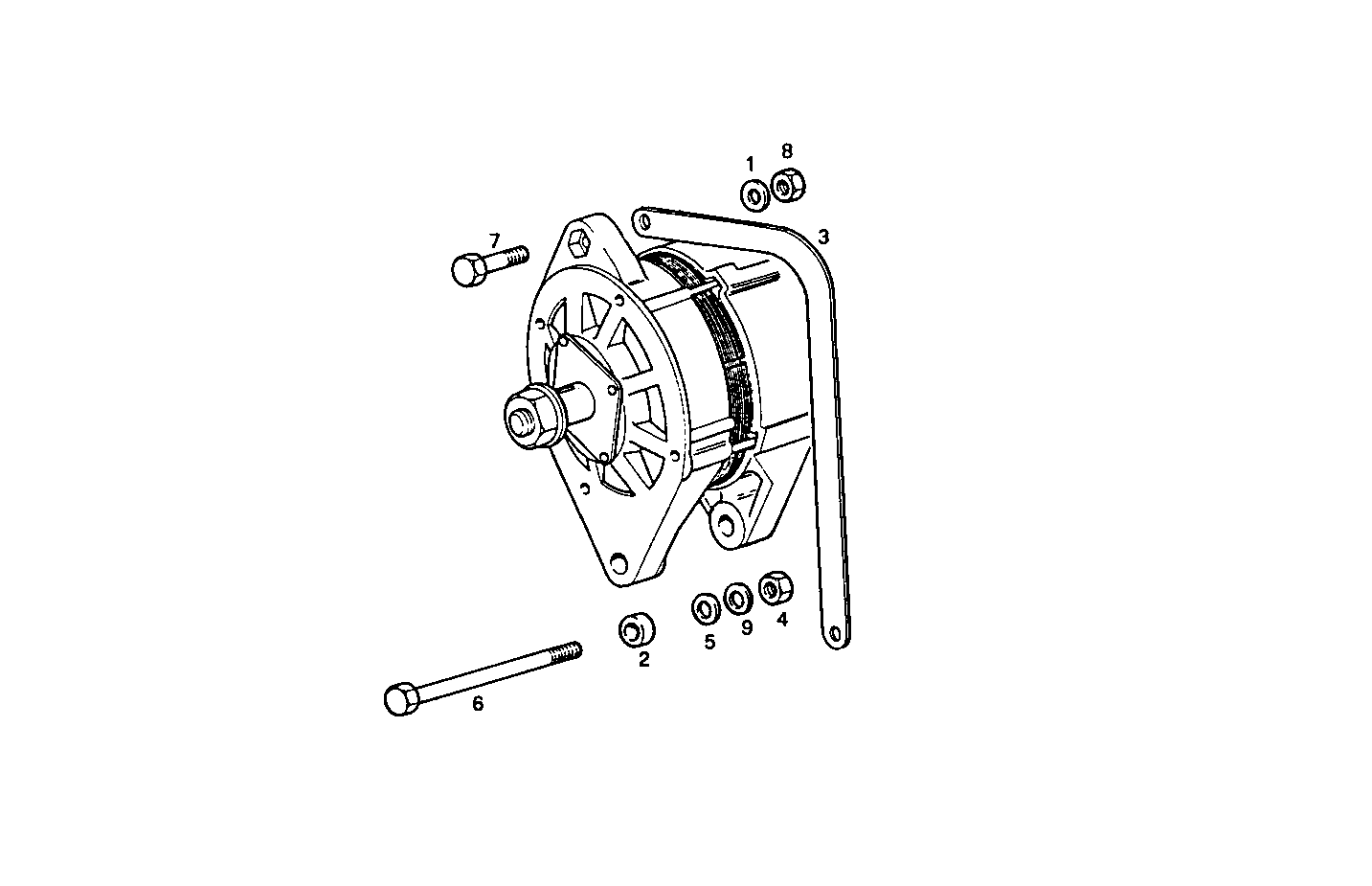

4010.018 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4513436 | SUPPORT RING Ø10X21X2 MM |
| 2 | 4831069 | SPACING BAR |
| 3 | 8113451 | BELT TENSIONER |
| 4 | 16101511 | HEXAGON NUT M12X1,25 |
| 5 | 11198679 | SPRING WASHER Ø13 MM |
| 6 | 15541821 | HEXAGON BOLT M12X1,25X120 MM [up to 565948] |
| 7 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 8 | 12164711 | HEXAGON NUT M10X1,25 |
| 9 | 12646901 | WASHER Ø12X28 MM |
