8210SRM36.32

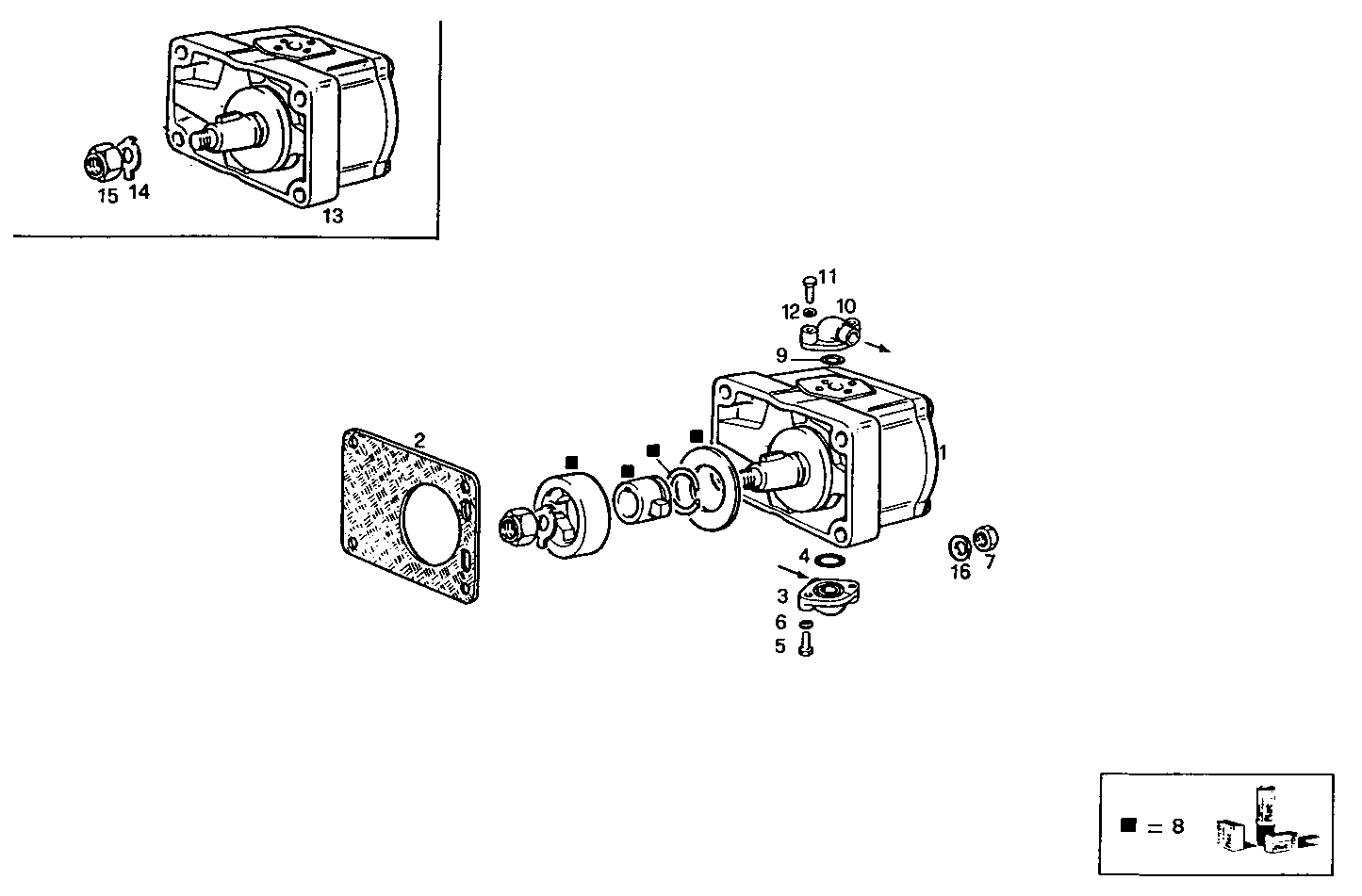

A09040014/01 LEFT FRONT HYDRAULIC PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 5169772 | HYDRAULIC PUMP ASSY PLESSEY A31 |
| 2 | 4863974 | FLAT ENGINE GASKET |
| 3 | 4670953 | PIPE SOCKET |
| 4 | 14457280 | O-RING Ø2,62X15,54 MM |
| 5 | 14305521 | SCREW M6X30 |
| 6 | 11197771 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 8090343 | KIT-HYDRAULIC PUMP |
| 9 | 14457680 | O-RING Ø21,89 MM |
| 10 | 4690715 | PIPE SOCKET |
| 11 | 14306621 | SCREW M8X35 |
| 12 | 11193871 | WASHER Ø8X16X1,4 MM |
| 13 | 5179719 | HYDRAULIC PUMP ASSY BOSCH |
| 14 | 8273920 | WASHER BOSCH |
| 15 | 8273919 | NUT BOSCH |
| 16 | 17088474 | WASHER Ø6X12 MM |
