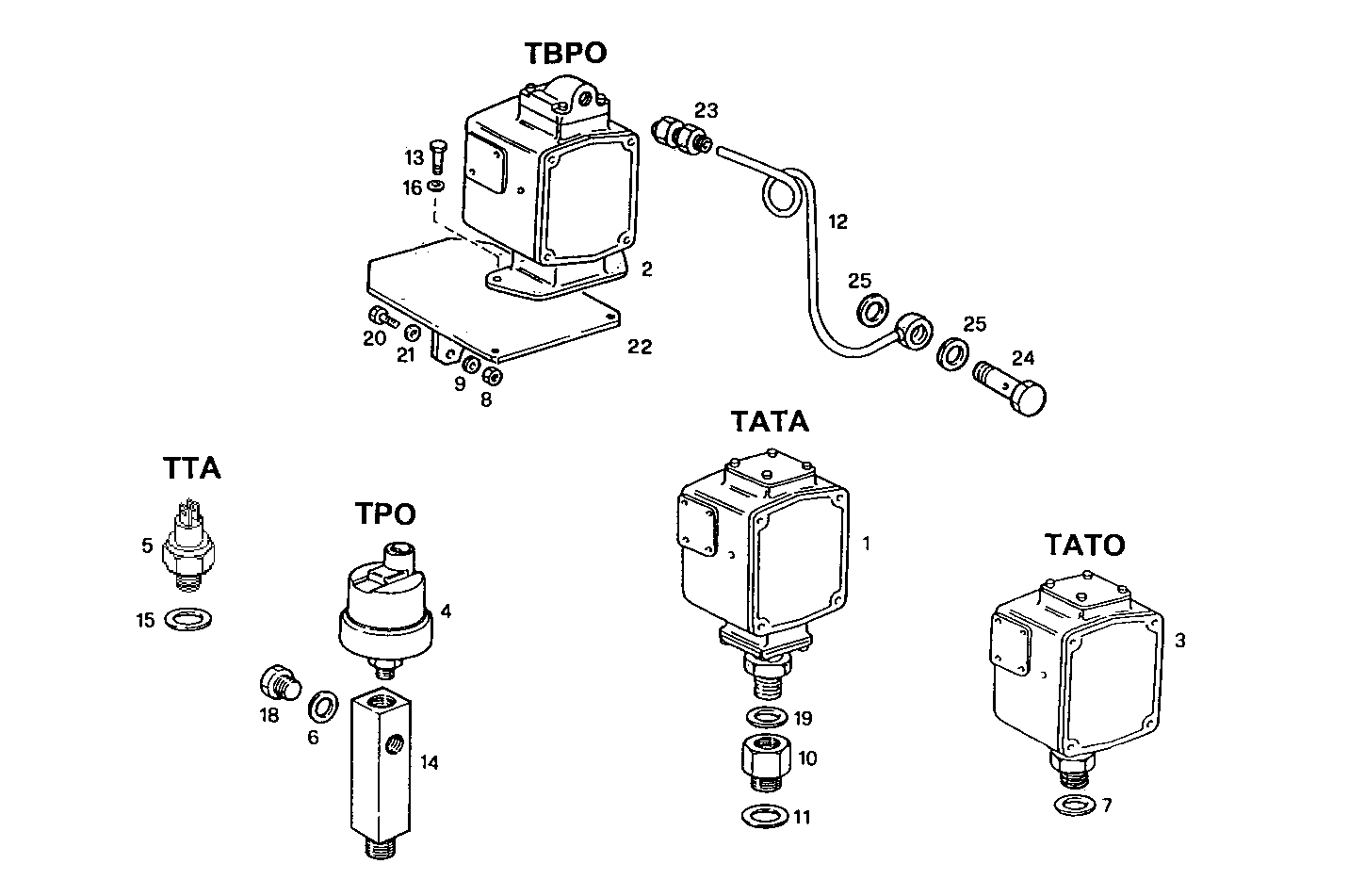

| Item |
Part number |
Description |
|
1 |
8110740 |
TRANSMITTER TATA |
|
2 |
8110739 |
TRANSMITTER TBPO |
|
3 |
8111450 |
TRANSMITTER TATO |
|
4 |
8100417 |
TRANSMITTER TPO |
|
5 |
8100418 |
TRANSMITTER TTA |
|
6 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
7 |
11271460 |
GASKET �21X26X1,5 MM |
|
8 |
17037931 |
HEXAGON NUT M8X1,25 |
|
9 |
17089474 |
SPRING WASHER �8X16 MM SP=1,4 MM |
|
10 |
8021213 |
PIPE SOCKET |
|
11 |
98429281 |
SEAL GASKET �24X31 MM SP=1,5 MM |
|
12 |
8023724 |
OIL LINE |
|
13 |
17133314 |
SCREW M6X20 |
|
14 |
4929576 |
PIPE SOCKET |
|
16 |
17088474 |
WASHER �6X12 MM |
|
17 |
8024485 |
WATER PIPE |
|
18 |
16992111 |
THREADED PLUG M10X1 |
|
20 |
15214224 |
SCREW M8x1,25x85 |
|
21 |
17094904 |
WASHER �8X16X1,6 MM |
|
22 |
8111084 |
RETAINER |
|
23 |
8111316 |
PIPE SOCKET |
|
24 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
25 |
4858607 |
WASHER �12X17 MM SP=1,5 MM |
