8210SRM38.10

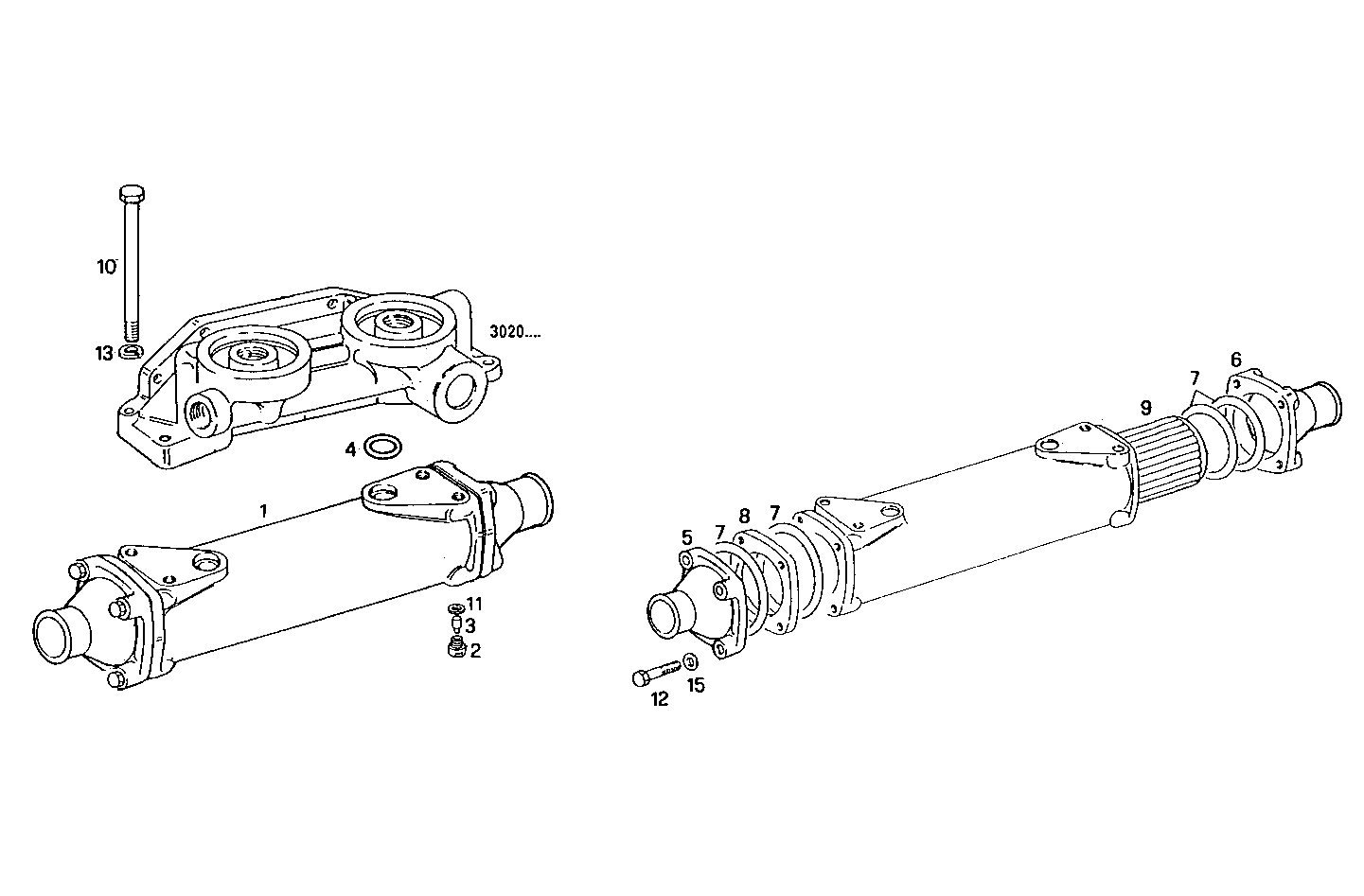

3100.049 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8011652 | HEAT EXCHANGER ASSY |
| 2 | 4917793 | PLUG M18 |
| 3 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 4 | 17282581 | O-RING Ø28,24 MM SP=2,62 MM |
| 5 | 8019072 | HEAT EXCHANG.COVER |
| 6 | 8019073 | HEAT EXCHANG.COVER |
| 7 | 8019074 | O-RING |
| 8 | 4837668 | SPACING BAR |
| 9 | 4837665 | TUBE STACK |
| 10 | 11307024 | SCREW M10X1,25X40 MM |
| 11 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 12 | 16690824 | CYLIND-HEAD SCREW M8X35 MM |
| 13 | 11198374 | SPRING WASHER Ø10X20 MM |
| 14 | 11198074 | SPRING WASHER Ø8X15 MM |
| 15 | 17800474 | WASHER Ø8X15X1,0 MM |
