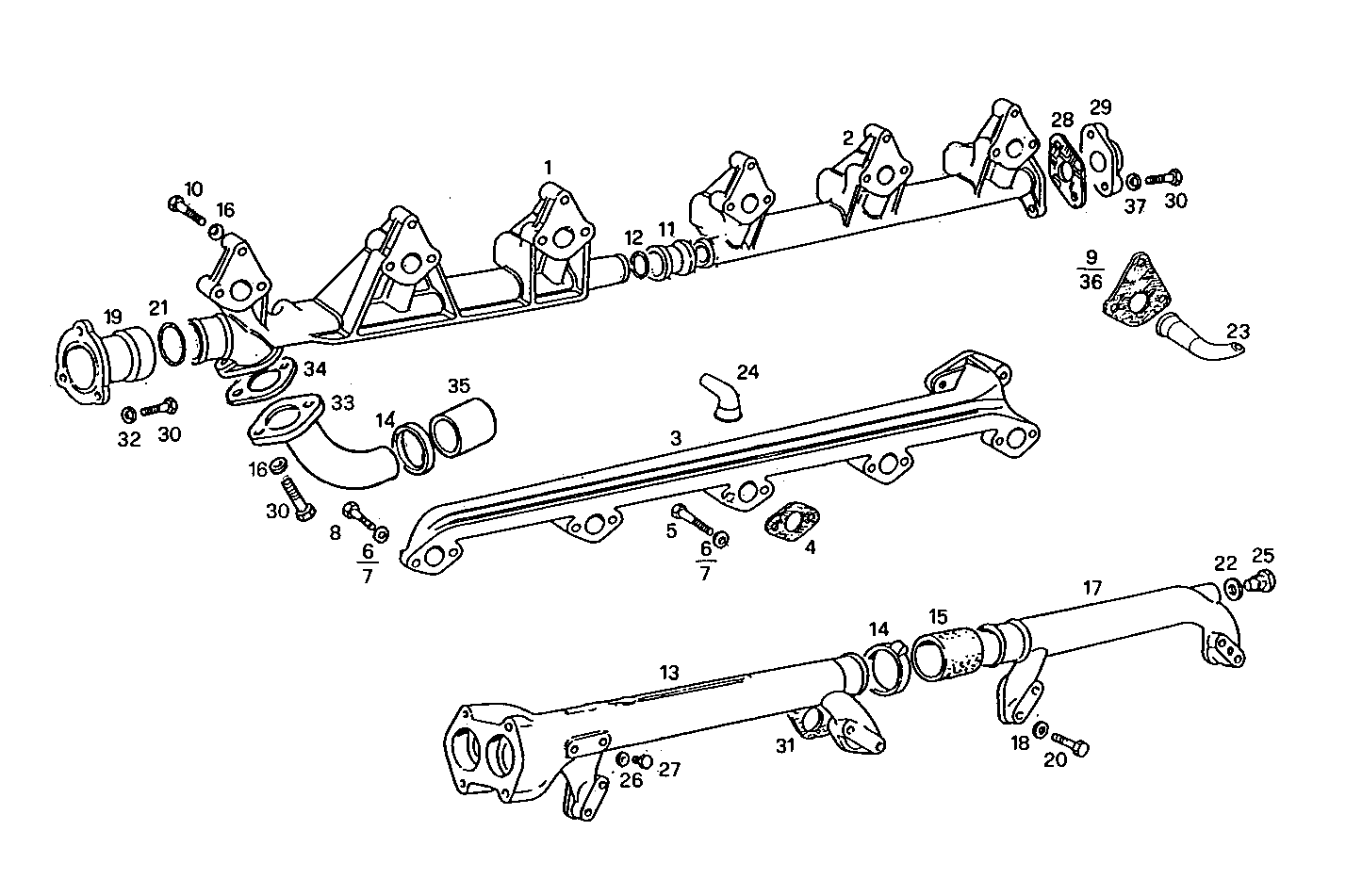

| Item |
Part number |
Description |
|
1 |
4778955 |
WATER MANIFOLD |
|
2 |
4762646 |
WATER MANIFOLD |
|
3 |
4641230 |
WATER MANIFOLD |
|
4 |
500308780 |
FLAT ENGINE GASKET |
|
5 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
6 |
4852210 |
WASHER |
|
7 |
4852211 |
WASHER |
|
8 |
16606024 |
SCREW M8X45 MM |
|
9 |
4852099 |
FLAT ENGINE GASKET |
|
10 |
16605924 |
SCREW M8X40 MM |
|
11 |
4762647 |
CONNECTOR SLEEVE |
|
12 |
98458442 |
O-RING Ø24,99 MM SP=3,53 MM [from 657424] |
|
13 |
98427299 |
WATER MANIFOLD |
|
14 |
17764992 |
CLIP Ø50-70 MM |
|
15 |
98421377 |
RUBBER SLEEVE Ø51 MM |
|
16 |
17094914 |
WASHER 8x16 |
|
17 |
4616590 |
WATER MANIFOLD REAR |
|
18 |
17095114 |
WASHER Ø10X21 MM |
|
19 |
4799657 |
WATER PIPE |
|
20 |
15888734 |
HEXAGON BOLT M10X1,25X55 MM |
|
21 |
98461203 |
O-RING |
|
22 |
10260360 |
SEAL GASKET Ø24,3 MM |
|
23 |
4623879 |
PIPE |
|
24 |
4638192 |
PIPE |
|
25 |
4871068 |
PLUG ASSY |
|
26 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
27 |
10304911 |
THREADED PLUG M20X1,5 |
|
28 |
874308 |
GASKET |
|
29 |
4641223 |
LINE |
|
30 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
31 |
4852097 |
FLAT ENGINE GASKET |
|
32 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
33 |
8011664 |
WATER PIPE |
|
34 |
4863951 |
FLAT ENGINE GASKET |
|
35 |
8110206 |
WATER HOSE |
|
36 |
99456733 |
FLAT ENGINE GASKET |
|
37 |
17089574 |
WASHER Ø8X16 MM |
