8210SRM38.10

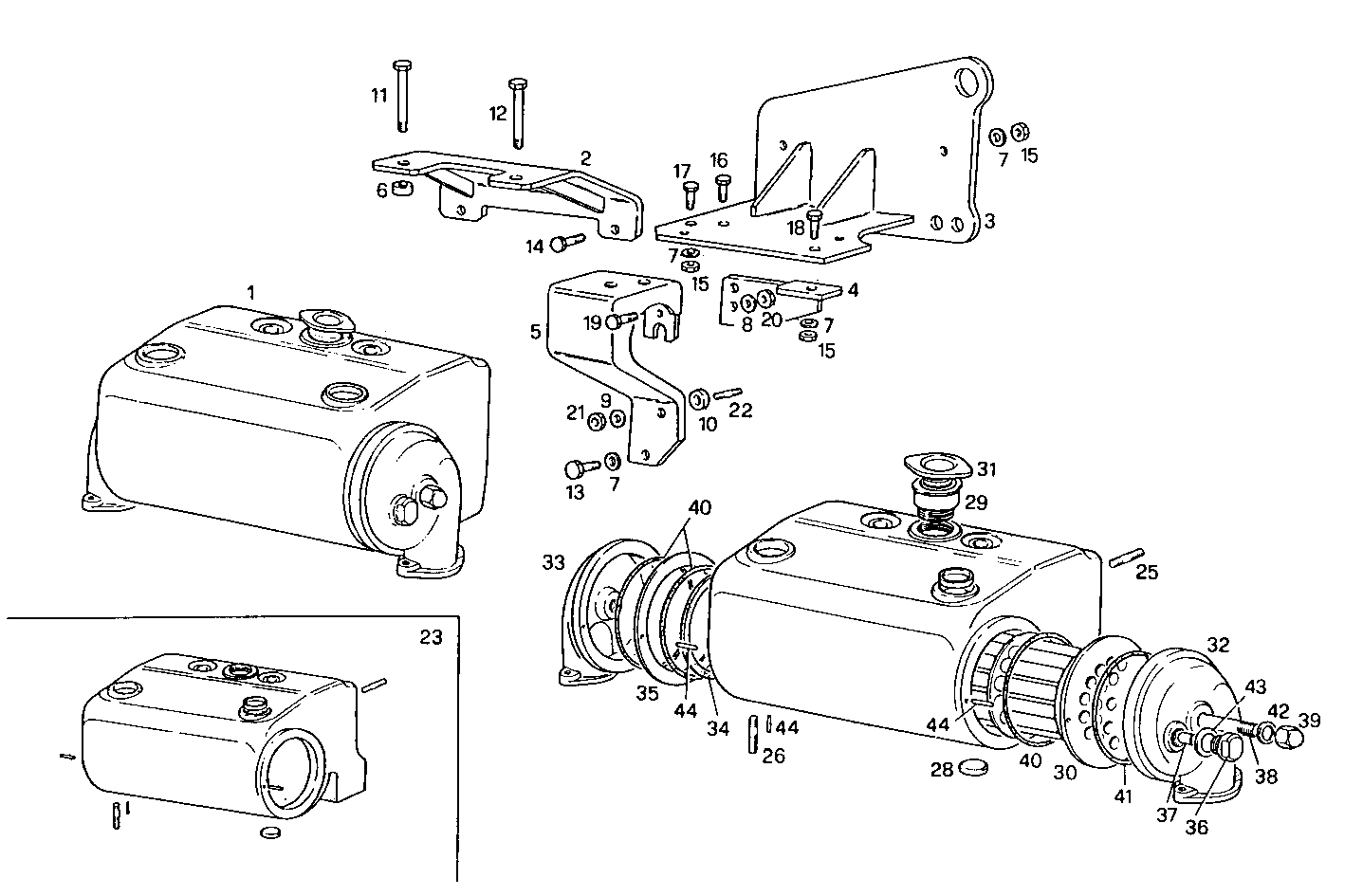

3370.015 FRESH WATER - SEA WATER HEAT EXCHANGER

Iveco/FPT FRESH WATER - SEA WATER HEAT EXCHANGER

Item Part number Description
1 8005323 WATER/SEA WATER HEAT EXCH ASSY
2 8110357 RETAINER
3 8110356 RETAINER
4 8110358 RETAINER
5 8110355 SUPPORT
6 8109399 SPACING BAR
7 11198379 SPRING WASHER Ø10X20 MM SP=2,6
8 11194079 SPRING WASHER Ø8X16 MM SP=1,9 MM
9 11198679 SPRING WASHER Ø13 MM
10 10730701 WASHER Ø12,2 MM
11 11288021 HEXAGON BOLT M10X1,25X60 MM
12 11234721 HEXAGON BOLT M10X1,25X45 MM
13 15972321 HEXAGON BOLT M10X125 MM
14 11306921 SCREW M10X1,25X30
15 12164711 HEXAGON NUT M10X1,25
16 15973221 HEXAGON BOLT M10X190 MM
17 15970921 HEXAGON BOLT M10X1,25X35 MM
18 15969821 SCREW M10X1,25X220
19 16043621 HEXAGON BOLT M8X25 MM
20 17037931 HEXAGON NUT M8X1,25
21 17038221 HEXAGON NUT M10
22 13450521 STUD M10X15X70
23 8005324 HEAT EXANGER BODY ASSY
24 8005353 HEAT EXANGER BODY
25 13543321 STUD M8X16X20 MM
26 13543621 STUD M8X16X30 MM
27 14282970 LOCK PLUG Ø45 MM
28 14282770 LOCK PLUG Ø36 MM
29 4934521 PIPE SOCKET
30 4932010 TUBE STACK
31 4927808 PLUG 0,5 BAR
32 8109337 HEAT EXCHANG.COVER
33 8103480 HEAT EXCHANG.COVER
34 8005302 GASKET
35 8103454 SPACING BAR
36 8101771 PLUG M28
37 8101772 SACRIFICAL ANODE Ø20 MM
38 4918894 TIE ROD
39 4918893 NUT
40 14467381 O-RING Ø3,53X142,5 MM
41 14467581 O-RING SP=3,53 MM
42 10280060 WASHER Ø14X20 MM SP=1,5 MM
43 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
44 14163770 PIN
