8210SRM38.10

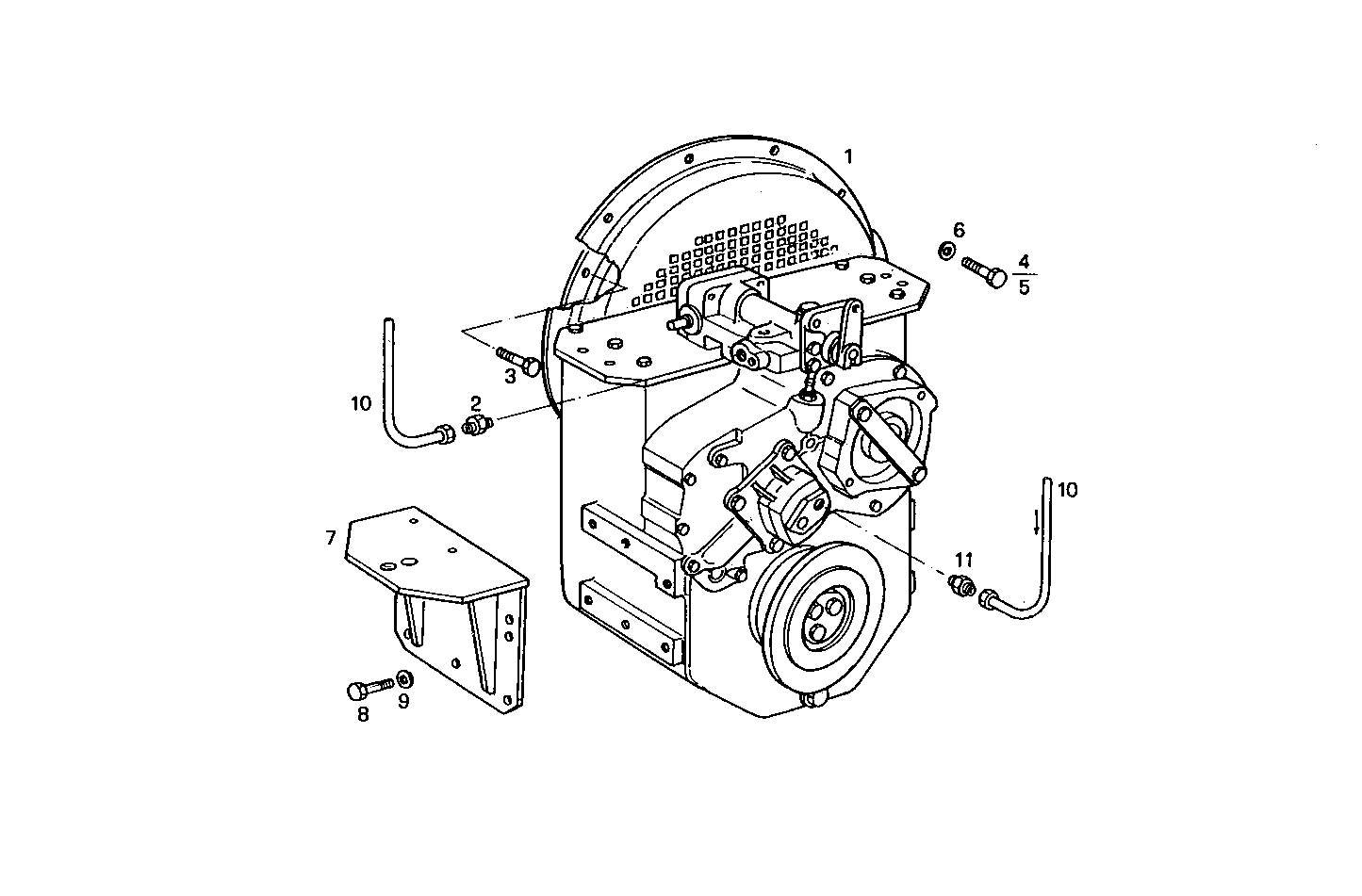

A51580005 MARINE GEAR TWIN DISC MG 5111 - ratio 4.95:1

Iveco/FPT MARINE GEAR TWIN DISC MG 5111

Item Part number Description
1 8010376 MARINE GEAR 4,95:1
2 8017553 PIPE SOCKET [up to 05-98]
3 14274621 LOCKING SCREW M12X1,25X35
4 11306921 SCREW M10X1,25X30
5 15970921 HEXAGON BOLT M10X1,25X35 MM
6 17090174 SPRING WASHER Ø10X20 MM
7 8010464 SUPPORT
8 4933337 SCREW
9 17092374 SPRING WASHER Ø16X34X3,6 MM
10 8113774 HOSE
11 8113794 PIPE SOCKET
