8210SRM40.30A550

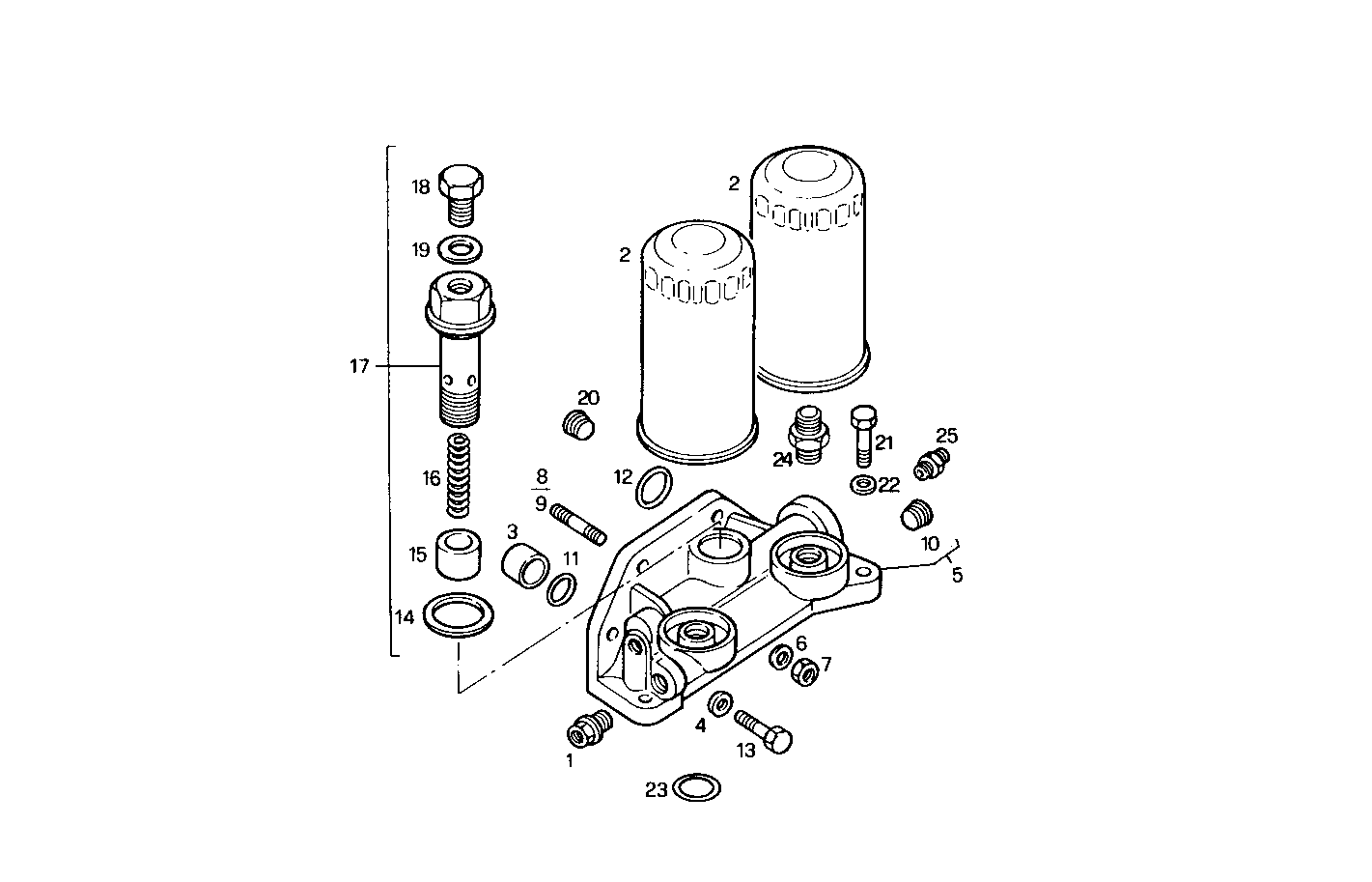

3020.060 OIL FILTERS
| Item | Part number | Description |
|---|---|---|
| 1 | 573251 | THREADED PLUG |
| 2 | 1903629 | OIL FILTER CARTRIDGE |
| 3 | 4538571 | CENTERING BUSH |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 4851933 | OIL FILTER SUPPORT ASSY |
| 6 | 17095104 | WASHER Ø10X21X2 MM |
| 7 | 17038221 | HEXAGON NUT M10 |
| 8 | 13449730 | STUD M10X15X30 MM |
| 9 | 13449931 | STUD |
| 10 | 10268450 | LOCK PLUG M20X1,5 |
| 11 | 17282581 | O-RING Ø28,24 MM SP=2,62 MM |
| 12 | 4838502 | SEAL GASKET |
| 13 | 15972821 | HEXAGON BOLT M10X150 MM |
| 14 | 4636458 | SEAL GASKET |
| 15 | 4636399 | VALVE |
| 16 | 4636397 | SPRING |
| 17 | 4649718 | OIL PUMP VALVE ASSY |
| 18 | 4649719 | SCREW CAP/PLUG |
| 19 | 10263460 | WASHER Ø22X28X1,5 MM |
| 20 | 14326150 | LOCK PLUG |
| 21 | 11306921 | SCREW M10X1,25X30 |
| 22 | 17090274 | WASHER Ø10X20 MM |
| 23 | 17282781 | O-RING Ø31,42 MM SP=2,62 MM |
| 24 | 4741301 | THREADED UNION ASSY |
| 25 | 10270150 | LOCK PLUG M24X1,5 |
