8210SRM40.30A550

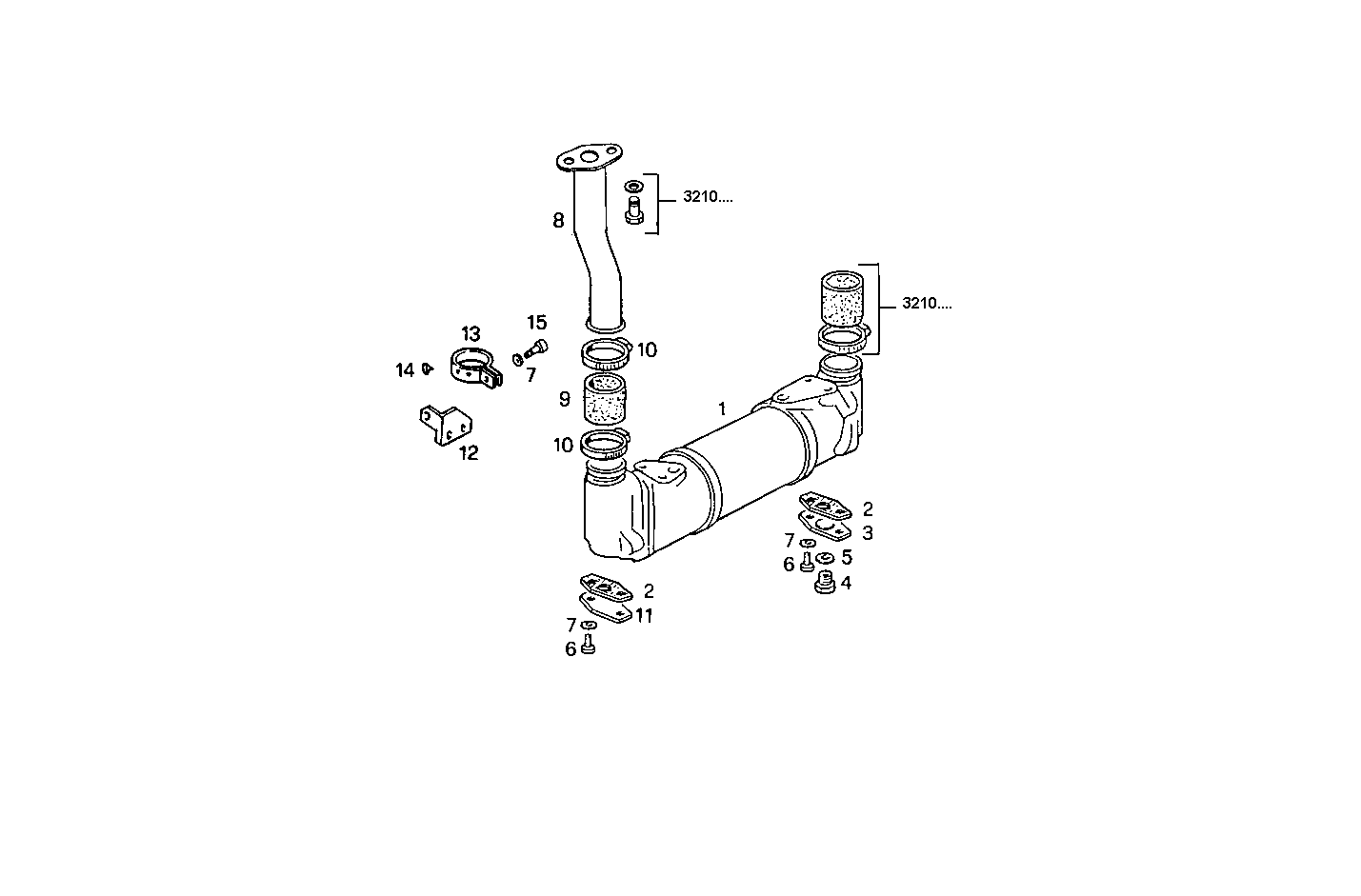

3100.084 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 4803814 | HEAT EXCHANGER ASSY MOTA |
| 2 | 4863948 | FLAT ENGINE GASKET |
| 3 | 4872744 | COVER |
| 4 | 16992411 | THREADED PLUG M16X1,5 |
| 5 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 6 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 8028472 | WATER PIPE |
| 9 | 4863960 | WATER HOSE |
| 10 | 17764892 | PIPE CLIP Ø40-60 MM |
| 11 | 593763 | FLANGE |
| 12 | 4830268 | FASTENING BRACKET |
| 13 | 4640545 | CLIP |
| 14 | 4565875 | RUBBER PAD |
| 15 | 16605734 | HEXAGON BOLT M8X30 MM |
