8210SRM40.30A550

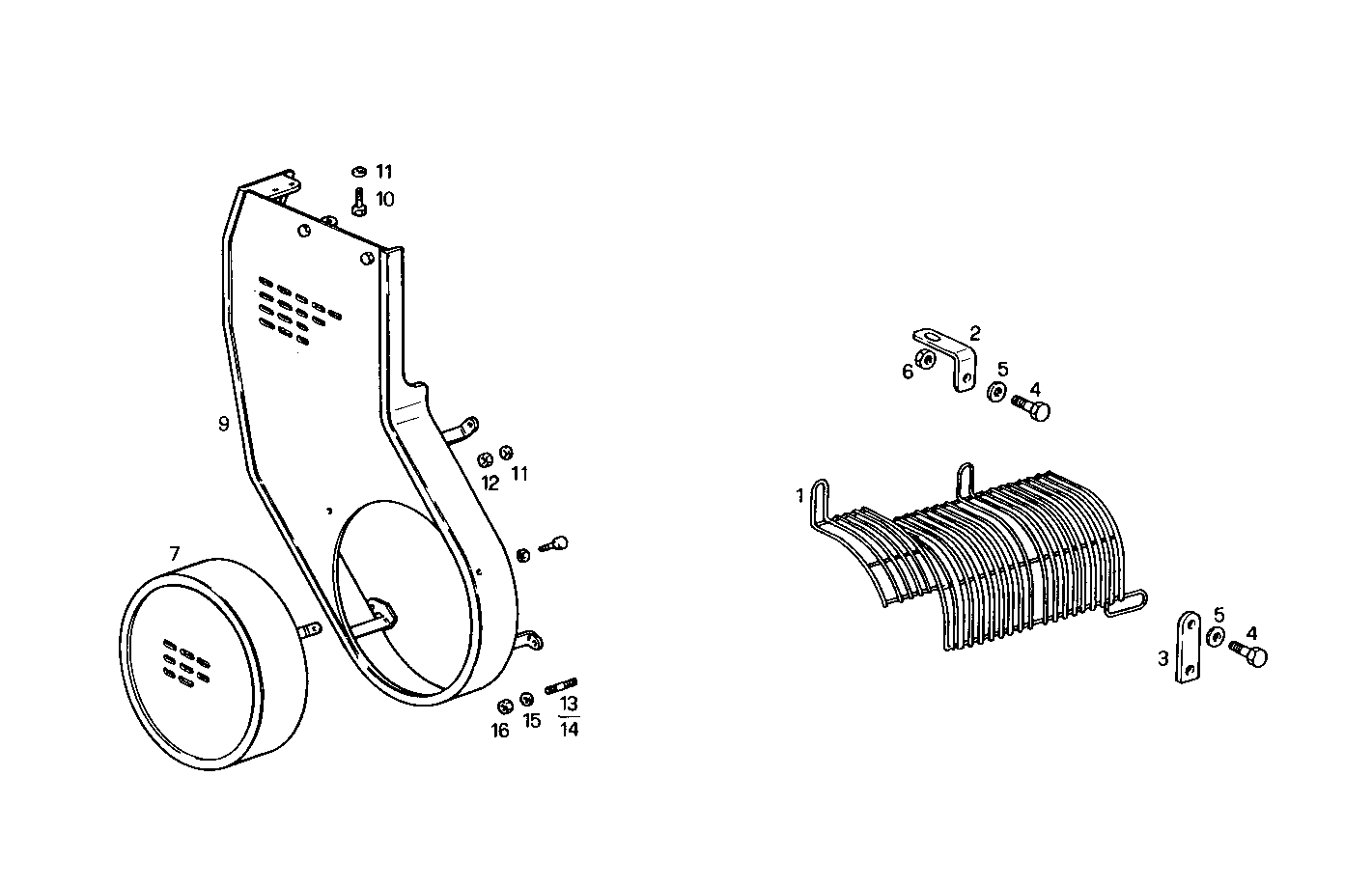

5770.027 SHIELDS

Iveco/FPT SHIELDS

Item Part number Description
1 8103003 PROTECTION
2 8017670 RETAINER
3 4716869 RETAINER
4 16605424 SCREW M8X16 MM (8.8)
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 17037931 HEXAGON NUT M8X1,25
7 8020634 PROTECTION
8 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
9 8025237 PROTECTION
10 16607624 SCREW M10X25
11 17090474 SPRING WASHER Ø10X27 MM SP=2,5
12 17038211 NUT M10X1,25
13 13552621 STUD M12X1,25X40
14 13552021 STUD M12X1,25X20
15 17091074 WASHER Ø12X24X2,8 MM
16 17038621 NUT M12
