8210SRM45.10

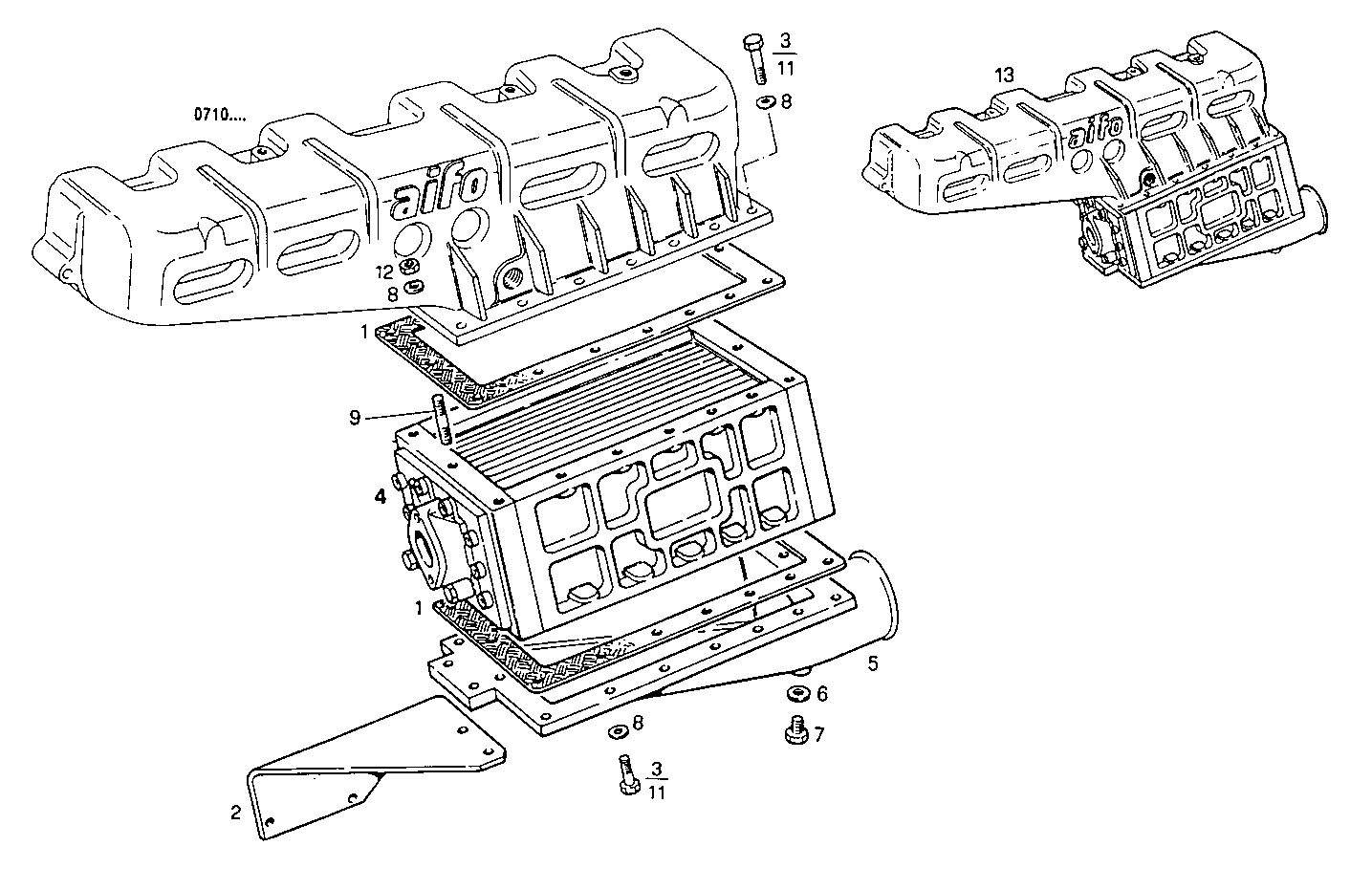

2460.031 AIR - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8008906 | GASKET |
| 2 | 8024557 | RETAINER |
| 3 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 4 | 8022764 | AIR/WATER HEAT EXCHANGER ASSY |
| 5 | 8109190 | AIR HOOD |
| 6 | 4858605 | WASHER Ø8X12 MM |
| 7 | 10300940 | PLUG M8 |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 16729424 | STUD M8X1,25X25 |
| 11 | 16605734 | HEXAGON BOLT M8X30 MM |
| 12 | 17037931 | HEXAGON NUT M8X1,25 |
| 13 | 8077086 | AIR/WATER HEAT EXCHANGER ASSY |
