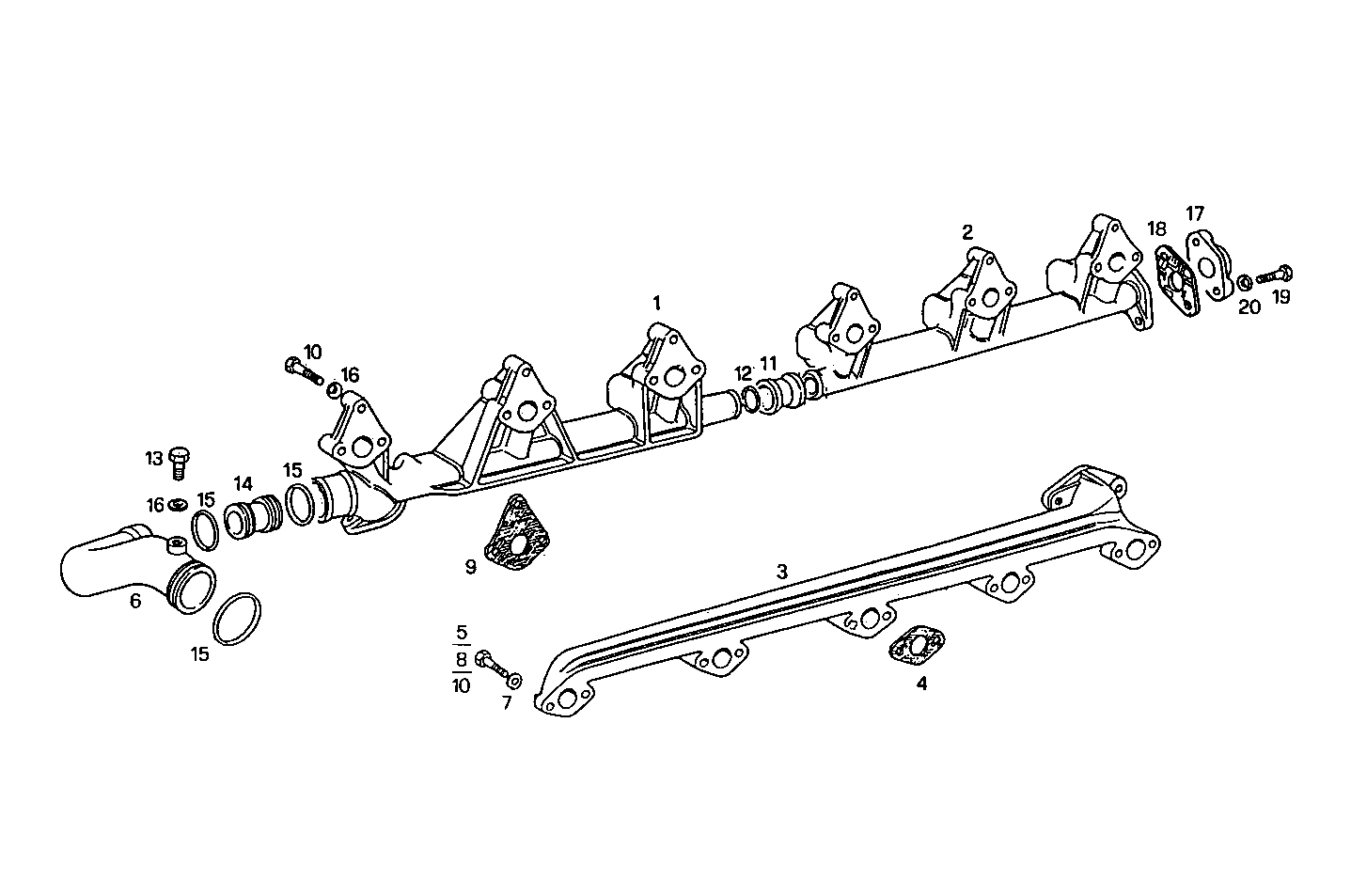

| Item |
Part number |
Description |
|
1 |
4778955 |
WATER MANIFOLD |
|
2 |
4762646 |
WATER MANIFOLD |
|
3 |
98471454 |
WATER MANIFOLD |
|
4 |
500308780 |
FLAT ENGINE GASKET |
|
5 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
6 |
98478087 |
WATER PIPE |
|
7 |
4852211 |
WASHER |
|
8 |
16606024 |
SCREW M8X45 MM |
|
9 |
4852099 |
FLAT ENGINE GASKET |
|
10 |
16605924 |
SCREW M8X40 MM |
|
11 |
4762647 |
CONNECTOR SLEEVE |
|
12 |
98458442 |
O-RING Ø24,99 MM SP=3,53 MM [from 657424] |
|
13 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
14 |
4859434 |
CONNECTOR SLEEVE [from 301481] |
|
15 |
500349805 |
O-RING Ø56,52X5,33 MM |
|
16 |
17094914 |
WASHER 8x16 |
|
17 |
1365519 |
FLANGE |
|
18 |
4863947 |
FLAT ENGINE GASKET |
|
19 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
20 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
