8210SRM45.31

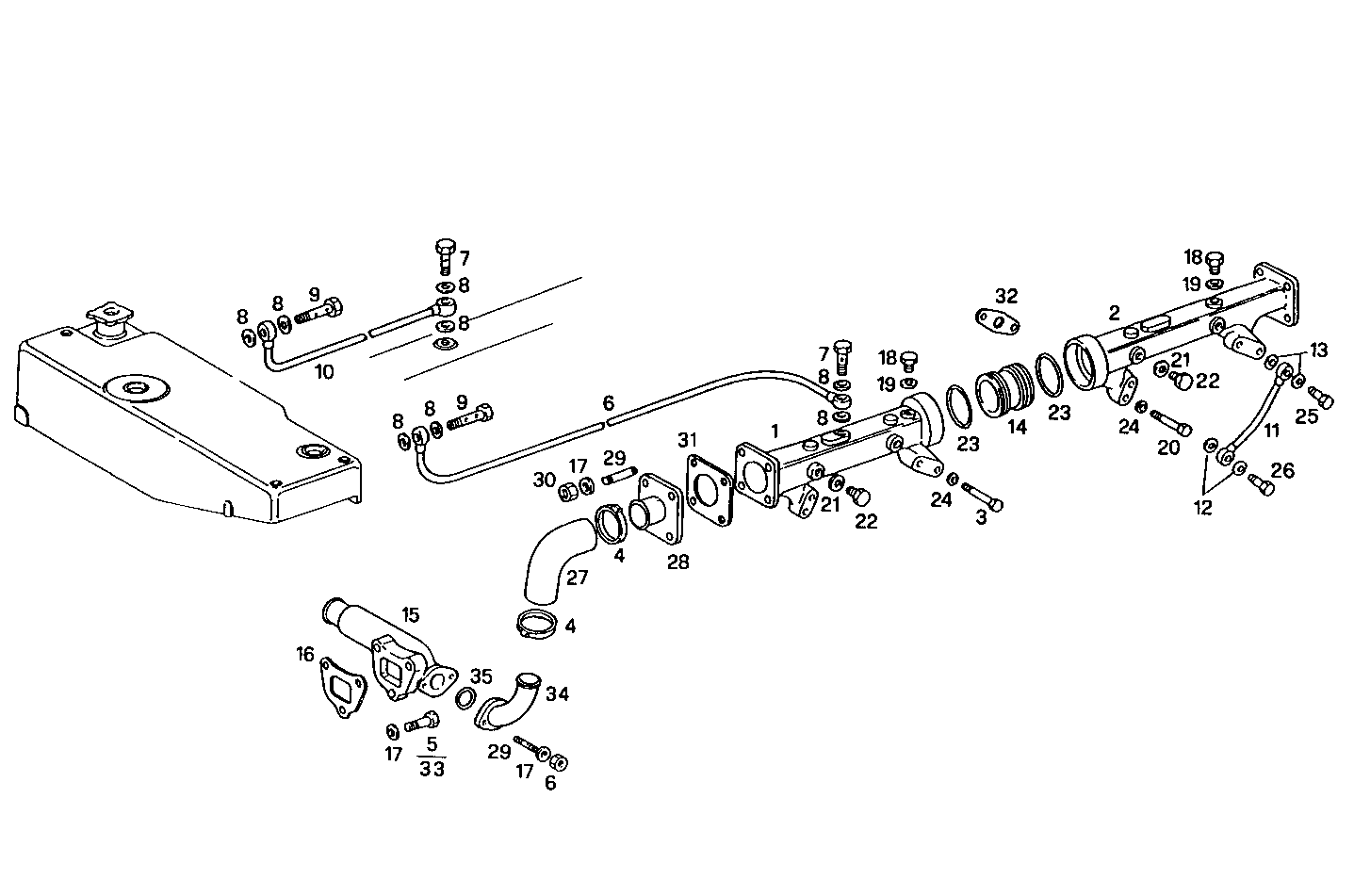

3210.232/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8028919 WATER MANIFOLD
2 8028920 WATER MANIFOLD
3 15888721 HEXAGON BOLT M10X1,25X55 MM
4 17764793 CLIP Ø32/50 MM
5 16606124 HEXAGON BOLT M8X50 MM
6 8018769 FUEL LINE L=240 MM
7 4864082 BANJO BOLT M12X1,5X25 MM
8 4858607 WASHER Ø12X17 MM SP=1,5 MM
9 8009696 SCREW CONNECTOR M12X1,5X25
10 8017577 AIR PIPE/DUCT L=380MM
11 8012899 WATER PIPE
13 4858606 GASKET Ø10X14X1 MM
14 4859434 CONNECTOR SLEEVE [from 301481]
15 8030041 WATER PIPE
16 61318850 FLAT ENGINE GASKET
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 16992311 LOCK PLUG M14X1,5
19 4858608 SEAL GASKET dia.14x19,5x1,5
20 11343821 HEXAGON BOLT M10X1,25X50 MM
21 4858609 WASHER Ø16X22 MM SP=1,5 MM
22 16992411 THREADED PLUG M16X1,5
23 98461203 O-RING
24 17095104 WASHER Ø10X21X2 MM
25 8015164 SCREW CONNECTOR
27 8030051 RUBBER SLEEVE
28 8028993 WATER PIPE
29 16746624 STUD M8X20 MM (8.8)
30 17037931 HEXAGON NUT M8X1,25
31 4857375 GASKET
32 99435380 FLAT ENGINE GASKET Ø50 MM
33 16605524 HEXAGON BOLT M8X20 MM
34 8030025 WATER PIPE
35 17289481 O-RING Ø37,69 MM SP=3,53 MM
