8210SRM45.31

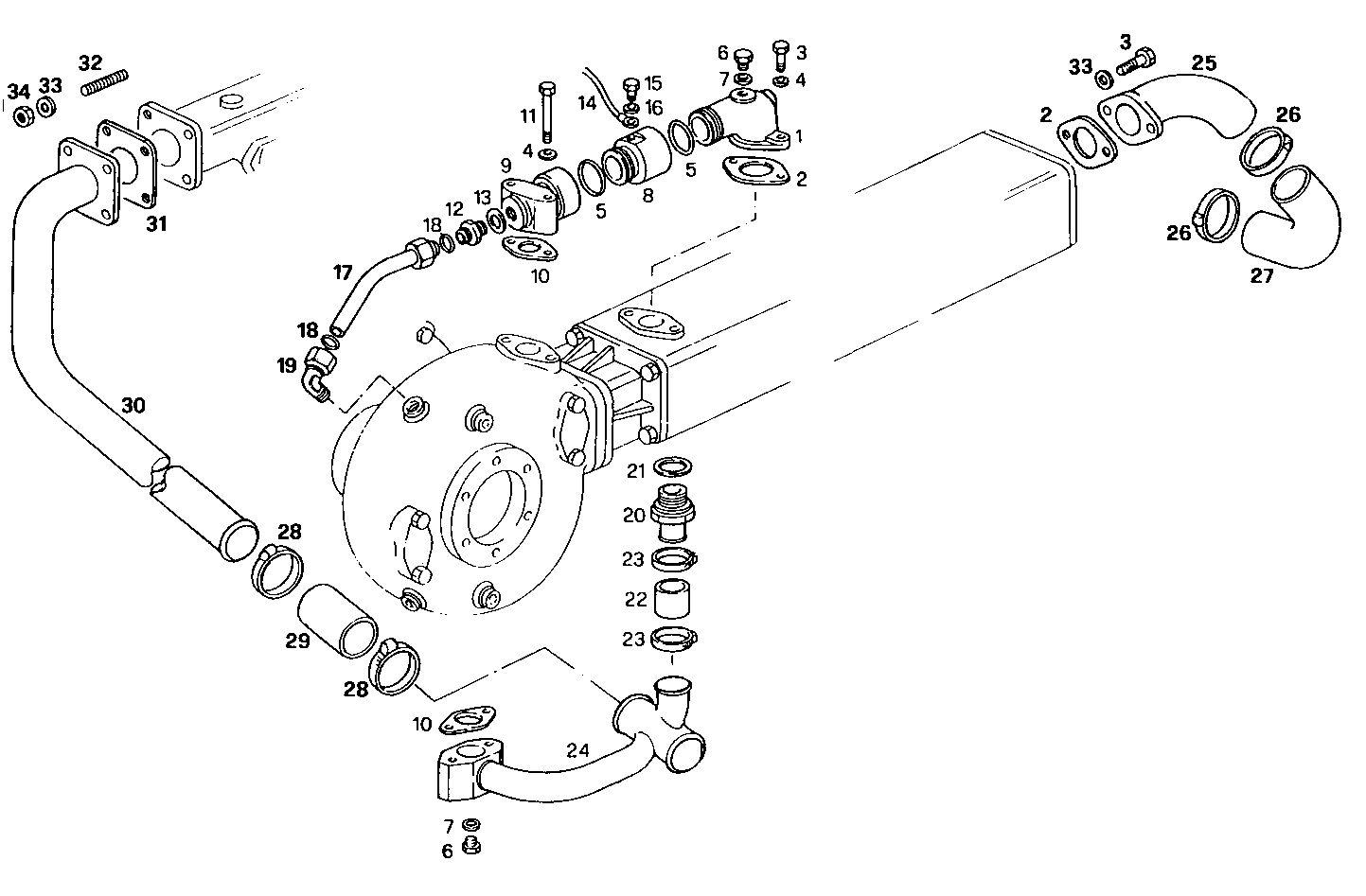

3210.232/04 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8024495 INTAKE ELBOW
2 8009640 GASKET
3 16605624 HEXAGON BOLT M8X25 MM (8.8)
4 17094904 WASHER Ø8X16X1,6 MM
5 17289081 O-RING Ø31,34X3,53 MM
6 16992211 THREADED PLUG M12X1,5
7 4858607 WASHER Ø12X17 MM SP=1,5 MM
8 8024590 CONNECTOR SLEEVE
9 8024496 WATER PIPE
10 98482697 GASKET
11 16606124 HEXAGON BOLT M8X50 MM
12 16509311 SWIVEL COUPLING
13 4858610 WASHER Ø18X24 MM SP=1,5 MM
14 8113786 ENGINE HARNESS GND
15 15857521 SCREW
16 17094704 WASHER Ø6X12X1,6 MM
17 8024589 WATER PIPE
18 8024649 O-RING Ø12 MM
19 8111454 PIPE SOCKET M22X1,5
20 8024797 PIPE SOCKET M30X1,5
21 10303460 SEAL GASKET Ø30x36x1,5 MM
22 8105610 RUBBER SLEEVE
23 17764693 CLIP Ø25/40 MM
24 8028996 WATER PIPE
25 8030046 WATER PIPE
26 17764893 CLIP Ø40/60 MM
27 98433199 CONNECTOR SLEEVE
29 4863960 WATER HOSE
30 8028995 WATER PIPE
31 4857375 GASKET
32 16746624 STUD M8X20 MM (8.8)
33 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
34 17037931 HEXAGON NUT M8X1,25
