8210SRM45.31

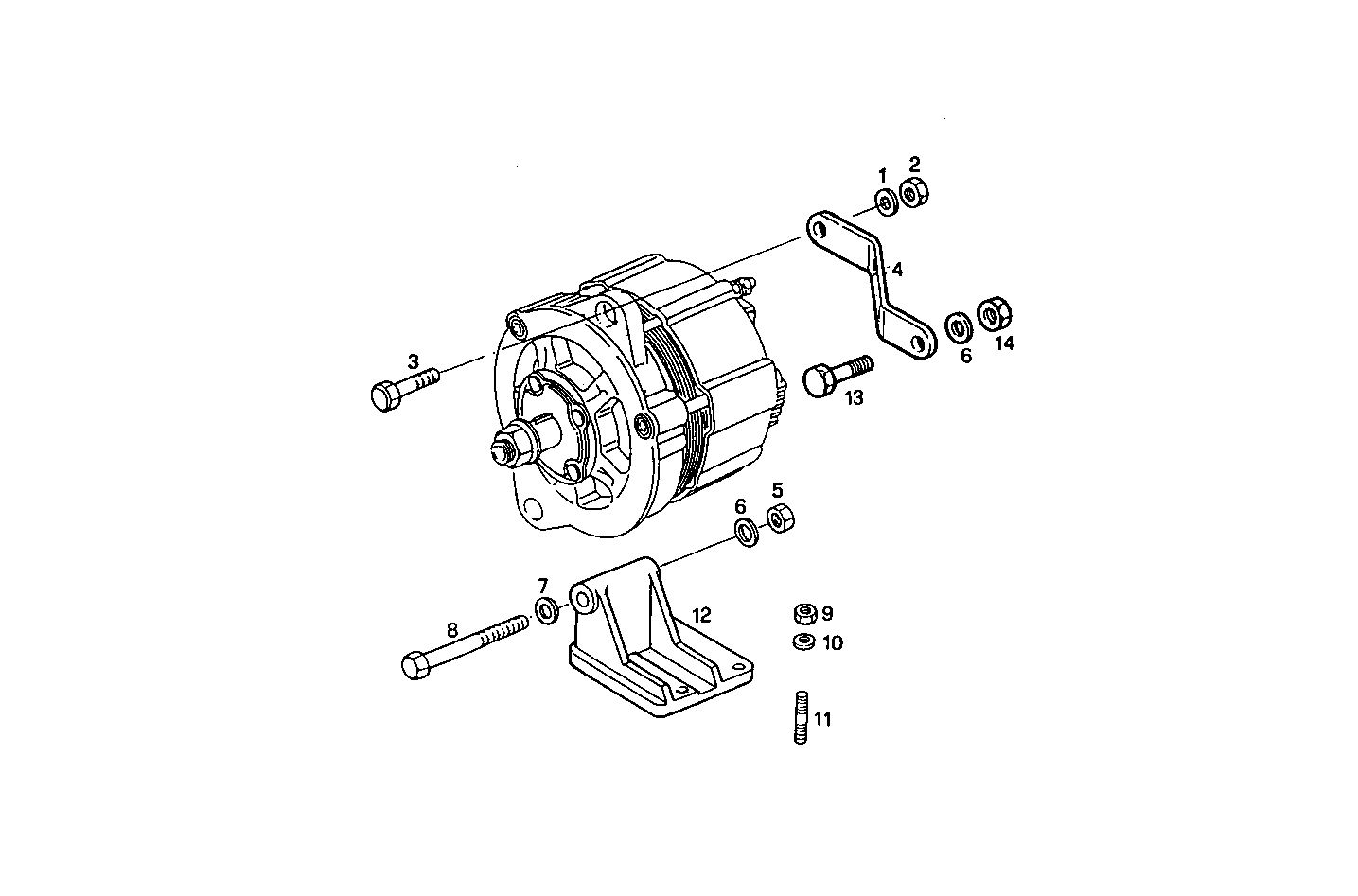

4010.118 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 17095104 | WASHER Ø10X21X2 MM |
| 2 | 17157221 | NUT M10X1,25 |
| 3 | 11307021 | HEXAGON BOLT M10X40 MM |
| 4 | 8024623 | BELT TENSIONER [from 09-98] |
| 5 | 17157521 | NUT M12X1,25 |
| 6 | 17091074 | WASHER Ø12X24X2,8 MM |
| 7 | 12646921 | WASHER Ø12X28 MM |
| 8 | 15541821 | HEXAGON BOLT M12X1,25X120 MM [up to 565948] |
| 9 | 17038221 | HEXAGON NUT M10 |
| 10 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 11 | 13449521 | STUD M10X15X25 |
| 12 | 4838279 | GENERATOR SUPPORT |
| 13 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
| 14 | 17038421 | HEXAGON NUT M12 (8) |
