8210SRM45.31

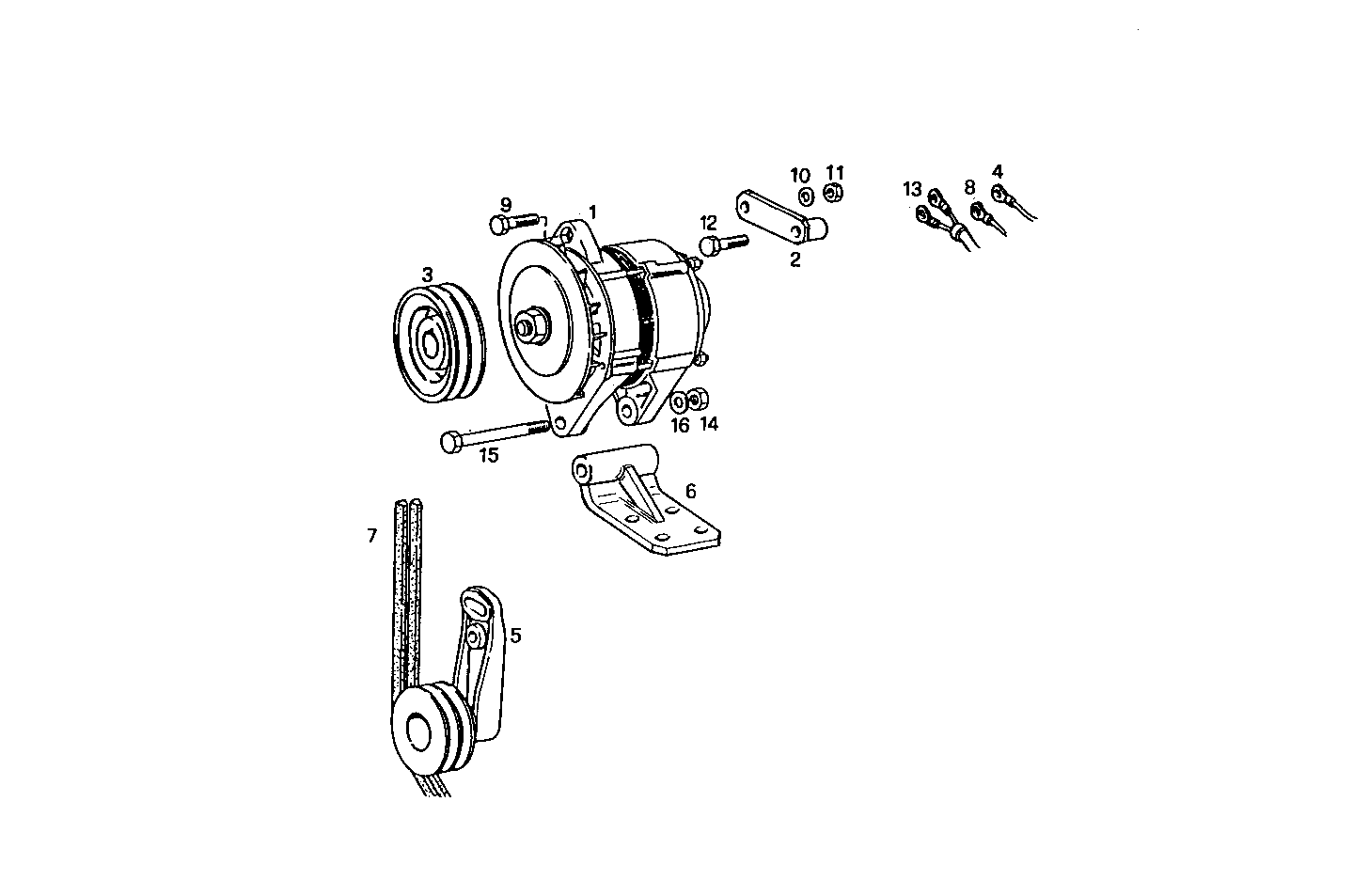

A14090005 SELF-REGULATED ALTERNATOR - 24V 100A - poles system
| Item | Part number | Description |
|---|---|---|
| 1 | 4798922 | ALTERNATOR ASSY |
| 2 | 8030383 | TENSIONER |
| 3 | 8105844 | PULLEY |
| 4 | 8009673 | EARTH WIRE |
| 5 | 8005562 | BELT TENSIONER |
| 6 | 8030374 | SUPPORT |
| 7 | 4829323 | V-BELT KIT |
| 8 | 8019531 | WIRE/CABLE W |
| 9 | 4785419 | HEXAGON BOLT |
| 10 | 4035499 | WASHER |
| 11 | 17153021 | HEXAGON NUT M10X1,25 |
| 12 | 16611821 | SCREW |
| 13 | 8113047 | WIRE/CABLE |
| 14 | 17153321 | HEXAGON NUT M12X1,25 |
| 15 | 4604245 | HEXAGON BOLT |
| 16 | 17095304 | WASHER Ø12X24 MM |
