8210SRM45.31
A16030004 SENDER UNITS FOR GENERATOR UNIT - with R.I.N.A. test

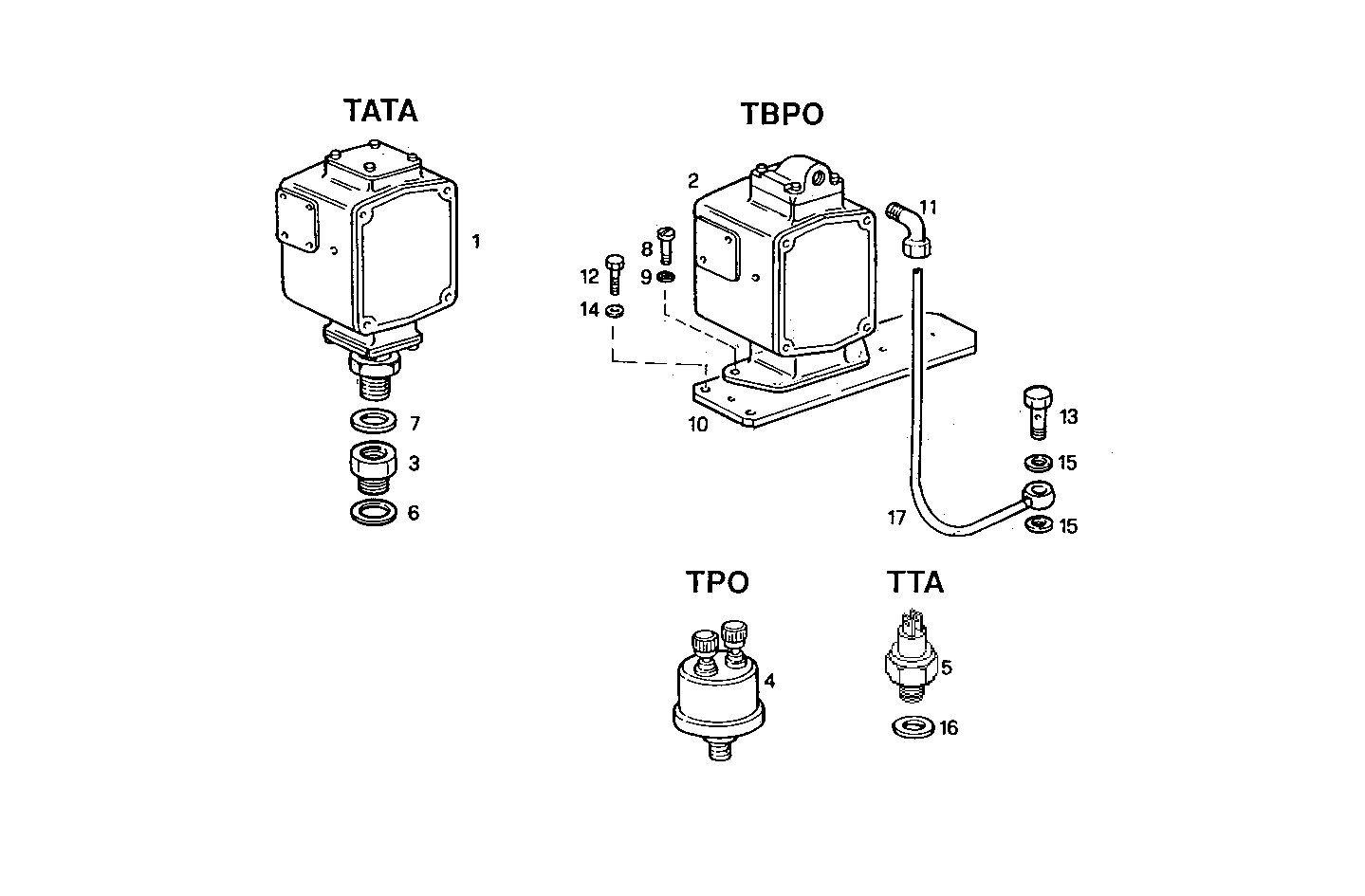

Iveco/FPT SENDER UNITS FOR GENERATOR UNIT

Item Part number Description
1 8110742 TRANSMITTER
2 8110741 TRANSMITTER TBPO
3 8021213 PIPE SOCKET
4 8100417 TRANSMITTER TPO
5 8100418 TRANSMITTER TTA
6 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
7 11271460 GASKET Ø21X26X1,5 MM
8 17133314 SCREW M6X20
9 17088474 WASHER Ø6X12 MM
10 8029370 RETAINER
11 8111261 PIPE SOCKET Ø1/8'' MM
12 16607824 HEXAGON BOLT M10X35 MM (8.8)
13 4864081 SCREW CONNECTOR
14 17090374 WASHER
15 4858606 GASKET Ø10X14X1 MM
16 4858608 SEAL GASKET dia.14x19,5x1,5
17 8028772 OIL LINE
