8280SRC20.00

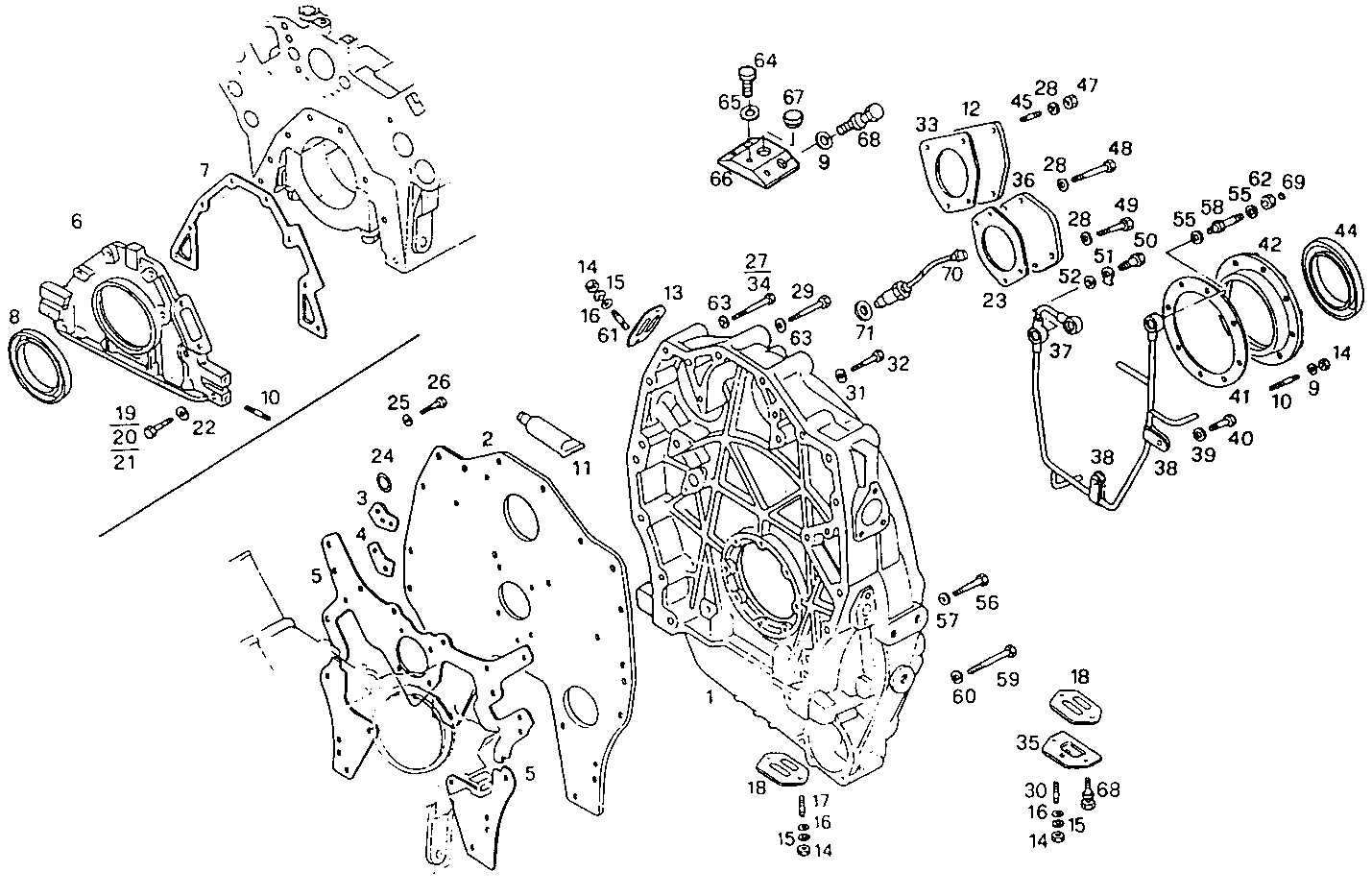

0430.185 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 500313061 REAR C.CASE COVER ASSY
2 4831136 PLATE
3 4831139 PLATE LEFT
4 4831138 PLATE RIGHT
5 4804903 FLAT ENGINE GASKET
6 99440758 FRONT C.CASE COVER ASSY [from 235184]
7 4863506 FLAT ENGINE GASKET
8 98499175 SHAFT SEAL
9 17094911 WASHER Ø8X16X1,6 MM
10 13543121 STUD M8X16 MM
11 1905685 ADHESIVE/STICKER LOCTITE
12 4695673 COVER
13 4695921 COVER
14 17037931 HEXAGON NUT M8X1,25
15 17089574 WASHER Ø8X16 MM
16 17094914 WASHER 8x16
17 13516521 STUD M8X12 MM
18 4706083 COVER
19 16606024 SCREW M8X45 MM
20 16605924 SCREW M8X40 MM
21 16605824 HEXAGON BOLT M8X35 MM
23 4863534 GASKET
24 14457181 O-RING Ø13,94 MM SP=2,62 MM
25 17090274 WASHER Ø10X20 MM
26 15970730 HEXAGON BOLT M10X25 MM
27 15972521 HEXAGON BOLT M10X135 MM
29 15972721 HEXAGON BOLT M10X145 MM
30 13543221 STUD M8X16X18 MM
31 17095314 WASHER Ø12X24 MM [up to ...]
32 15541630 HEXAGON BOLT M12X100 MM
33 4863515 FLAT ENGINE GASKET
34 15971821 SCREW M10X1,25X100
35 99447987 CONNECTING PLATE Ø12 MM
36 4729849 COVER
37 4687527 OIL LINE
38 852410 FASTENING BRACKET
39 13550301 WASHER Ø8,15 MM
40 16042921 SCREW M8X10
41 4863494 FLAT ENGINE GASKET
42 4729209 SUPPORT
44 98499177 SHAFT SEAL
45 13546721 STUD M10X1,25X40
47 17038221 HEXAGON NUT M10
48 15970021 HEXAGON BOLT M10X1,25X155 MM
49 15972321 HEXAGON BOLT M10X125 MM
50 4503811 SCREW CONNECTOR M10X1,25
51 852409 LOCKING PLATE Ø10,5 MM
52 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
55 10298360 SEAL GASKET Ø10X16 MM SP=1 MM
56 15543021 HEXAGON BOLT M12X105 MM
57 12646921 WASHER Ø12X28 MM
58 4677753 SCREW CONNECTOR
59 15978030 HEXAGON BOLT M14X105 MM
60 4604279 SPRING WASHER Ø14X32 MM SP=4 MM
61 13517221 STUD M8X12X30 MM
62 16979731 NUT M10X1,25
63 11198479 SPRING WASHER Ø10X27 MM SP=2,8
64 16605624 HEXAGON BOLT M8X25 MM (8.8)
66 4862376 COVER
67 17883387 RUBBER PLUG
68 61315661 HEXAGON BOLT M8X30
69 17277681 O-RING Ø5,2 MM SP=1,7 MM
70 4861291 TRANSMITTER
71 4860432 RING
