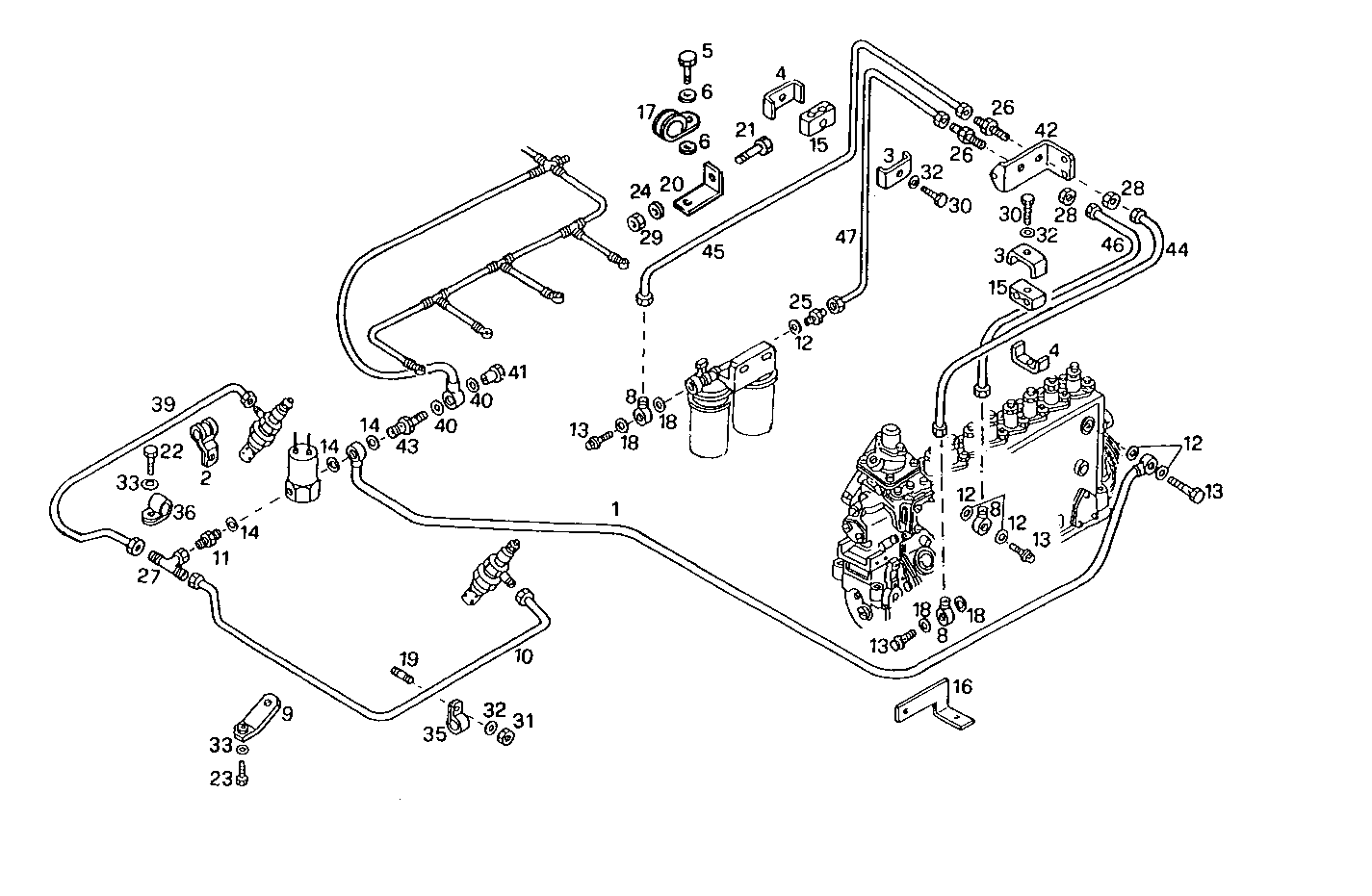

| Item |
Part number |
Description |
|
1 |
98498482 |
FUEL LINE [from 116190] |
|
2 |
4617069 |
FASTENING BRACKET |
|
3 |
4644288 |
CLIP |
|
4 |
4644289 |
CLIP |
|
5 |
16602124 |
SCREW M5X16 MM |
|
6 |
17094501 |
WASHER Ø5X10X1 MM |
|
8 |
4742913 |
BANJO COUPLING |
|
9 |
4802310 |
RETAINER |
|
10 |
4855814 |
FUEL LINE LEFT |
|
11 |
500302990 |
THREADED UNION M10X1 - M12X1,5 |
|
12 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
13 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
14 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
15 |
4871771 |
RUBBER LUG |
|
16 |
98498769 |
FASTENING BRACKET [from 116190] |
|
17 |
17314790 |
FASTENING BRACKET Ø8 MM |
|
18 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
19 |
13540821 |
STUD M6X12X14 MM |
|
20 |
99465295 |
FASTENING BRACKET |
|
21 |
16602424 |
SCREW M5X30 MM |
|
22 |
16043024 |
HEXAGON BOLT M8X12 MM (8.8) |
|
23 |
16043124 |
SCREW M8X14 MM |
|
24 |
17089471 |
SPRING WASHER Ø16X8 MM SP=1,4 MM |
|
25 |
16500211 |
THREADED UNION |
|
26 |
16502411 |
THREADED UNION |
|
27 |
16505714 |
T-COUPLING |
|
28 |
16508811 |
NUT M16X1,5 |
|
29 |
17037931 |
HEXAGON NUT M8X1,25 |
|
31 |
17037821 |
HEXAGON NUT M6X1 |
|
32 |
17088474 |
WASHER Ø6X12 MM |
|
35 |
17314590 |
RETAINER Ø6 MM |
|
36 |
17316190 |
PIPE CLIP Ø6 MM |
|
39 |
98428309 |
FUEL LINE RIGHT |
|
40 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
41 |
98469675 |
THREADED PLUG M12X1 |
|
42 |
98454431 |
FASTENING BRACKET |
|
43 |
98469450 |
BYPASS VALVE |
|
44 |
98498474 |
FUEL LINE |
|
45 |
500305496 |
FUEL LINE |
|
46 |
98454445 |
FUEL LINE |
|
47 |
500305494 |
FUEL LINE |
