8280SRC20.00

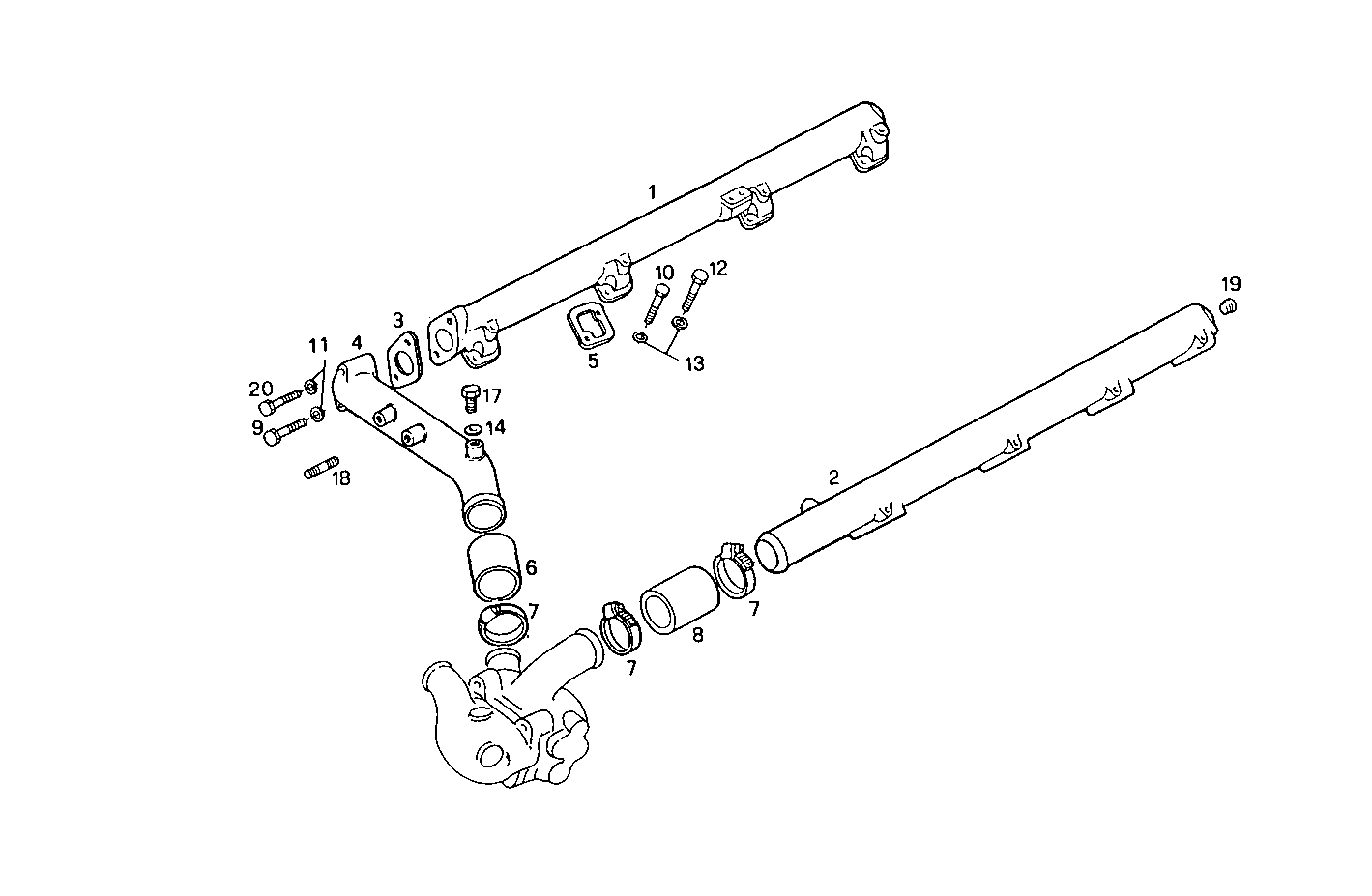

3210.198 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 99465794 | WATER MANIFOLD Ø65-75 MM [from 307843] |
| 2 | 4821288 | WATER MANIFOLD |
| 3 | 98469577 | FLAT ENGINE GASKET |
| 4 | 4807830 | WATER PIPE |
| 5 | 98418857 | FLAT ENGINE GASKET |
| 6 | 98420476 | WATER HOSE |
| 7 | 17764891 | CLIP Ø40/60 MM |
| 8 | 98420477 | WATER HOSE |
| 9 | 16605824 | HEXAGON BOLT M8X35 MM |
| 10 | 16606624 | HEXAGON BOLT M8X80 MM |
| 11 | 17089874 | WASHER Ø8X22 MM |
| 12 | 16605924 | SCREW M8X40 MM |
| 13 | 12646721 | WASHER Ø8X20 MM |
| 14 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 17 | 10300640 | LOCK PLUG M14X1,5 |
| 18 | 13516521 | STUD M8X12 MM |
| 19 | 10270150 | LOCK PLUG M24X1,5 |
| 20 | 16606524 | HEXAGON BOLT M8X70 MM |
