8280SRC21.00

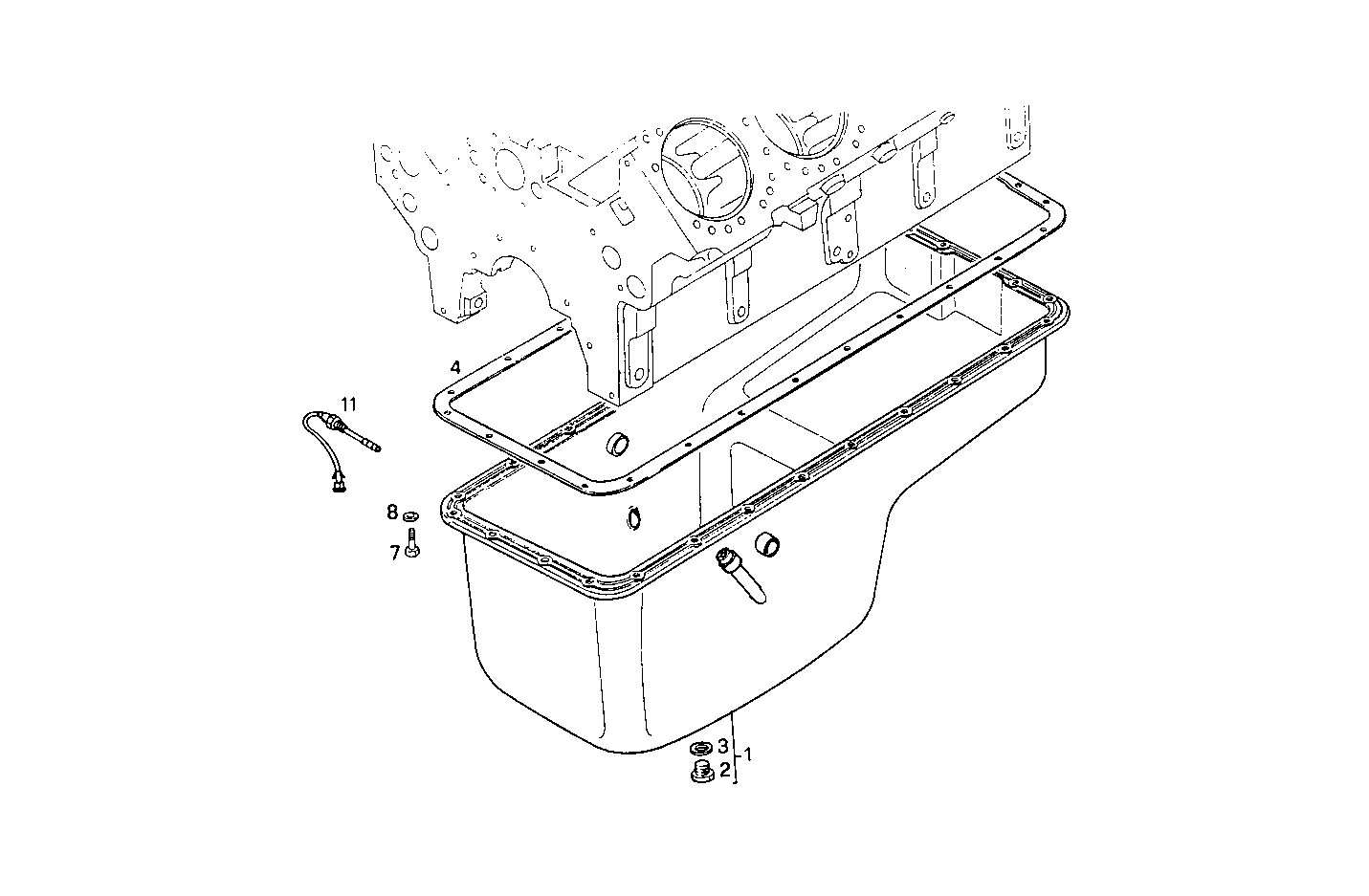

0420.115 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4799596 | OIL SUMP ASSY |
| 2 | 16993411 | THREADED PLUG M22X1,5 |
| 3 | 16508460 | WASHER 22x27x1,5 |
| 4 | 4799333 | OIL SUMP GASKET |
| 7 | 10929824 | HEXAGON BOLT M10X1,25X25 MM |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 11 | 4860504 | SENSOR L=93 MM |
