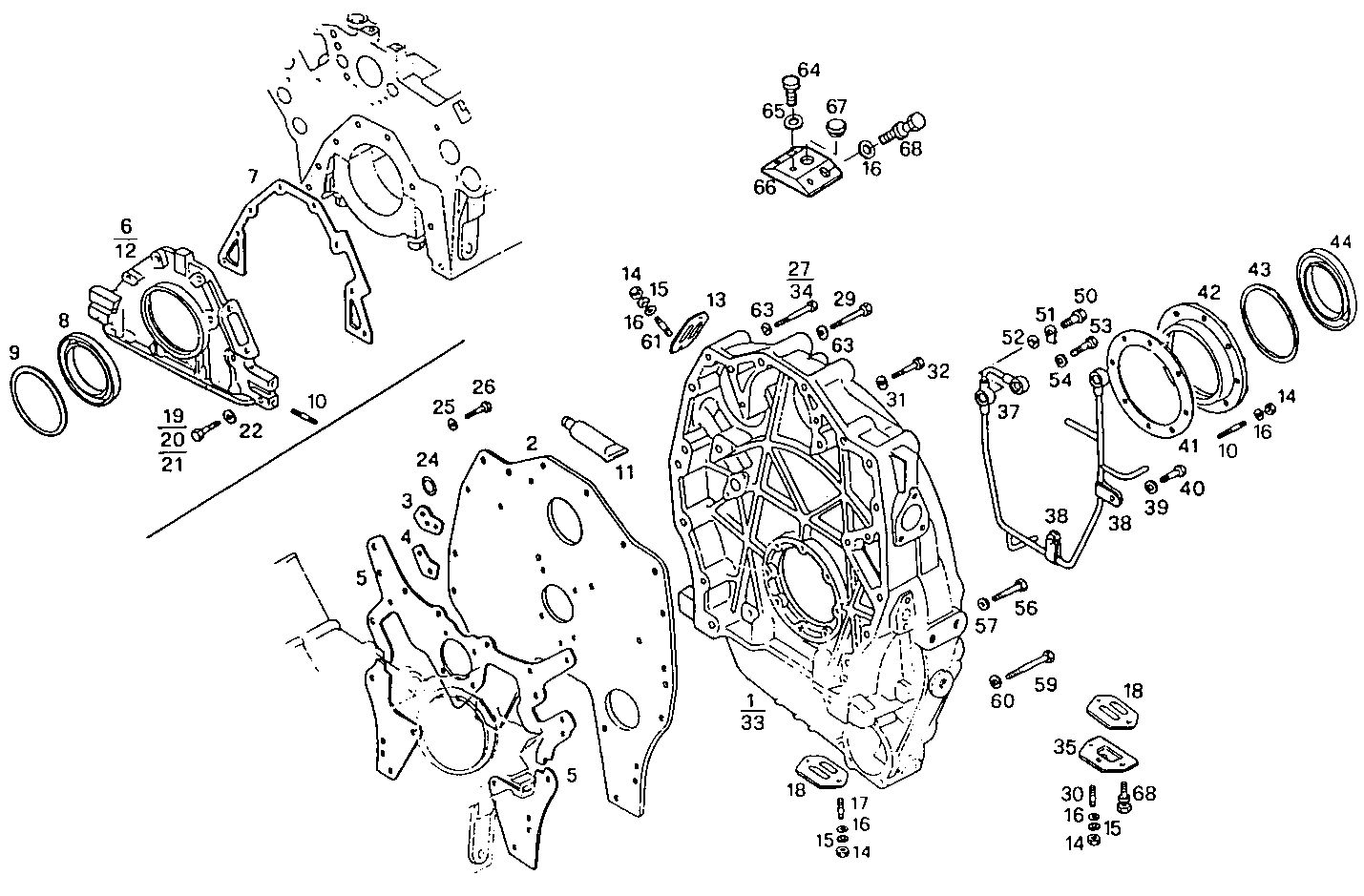

| Item |
Part number |
Description |
|
1 |
99447984 |
REAR C.CASE COVER ASSY [up to 307842] |
|
2 |
4831135 |
PLATE |
|
3 |
4831139 |
PLATE LEFT |
|
4 |
4831138 |
PLATE RIGHT |
|
5 |
4804903 |
FLAT ENGINE GASKET |
|
6 |
99440758 |
FRONT C.CASE COVER ASSY [from 235184] |
|
7 |
4863506 |
FLAT ENGINE GASKET |
|
8 |
98499175 |
SHAFT SEAL |
|
9 |
4714245 |
RING [up to 235183] |
|
10 |
13543121 |
STUD M8X16 MM |
|
11 |
1905685 |
ADHESIVE/STICKER LOCTITE |
|
12 |
4815562 |
FRONT C.CASE COVER [up to 235183] |
|
13 |
4695921 |
COVER |
|
14 |
17037931 |
HEXAGON NUT M8X1,25 |
|
15 |
17089574 |
WASHER Ø8X16 MM |
|
16 |
17094914 |
WASHER 8x16 |
|
17 |
13516521 |
STUD M8X12 MM |
|
18 |
4706083 |
COVER |
|
19 |
16606024 |
SCREW M8X45 MM |
|
20 |
16605924 |
SCREW M8X40 MM |
|
21 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
24 |
17281681 |
O-RING Ø13,9 MM SP=2,6 MM |
|
25 |
17090274 |
WASHER Ø10X20 MM |
|
26 |
15970730 |
HEXAGON BOLT M10X25 MM |
|
27 |
15972521 |
HEXAGON BOLT M10X135 MM |
|
29 |
15972721 |
HEXAGON BOLT M10X145 MM |
|
30 |
13543221 |
STUD M8X16X18 MM |
|
31 |
17095304 |
WASHER Ø12X24 MM |
|
32 |
15541630 |
HEXAGON BOLT M12X100 MM |
|
33 |
99465182 |
REAR C.CASE COVER ASSY [from 307843] |
|
34 |
15971821 |
SCREW M10X1,25X100 |
|
35 |
99447987 |
CONNECTING PLATE Ø12 MM |
|
37 |
4723982 |
OIL LINE |
|
38 |
852410 |
FASTENING BRACKET |
|
39 |
13550301 |
WASHER Ø8,15 MM |
|
40 |
16042924 |
SCREW M8X1,25X10 MM |
|
41 |
4863494 |
FLAT ENGINE GASKET |
|
42 |
4729209 |
SUPPORT |
|
43 |
4819210 |
RING [up to 328262] |
|
44 |
98499177 |
SHAFT SEAL |
|
50 |
4503811 |
SCREW CONNECTOR M10X1,25 |
|
51 |
852409 |
LOCKING PLATE Ø10,5 MM |
|
52 |
10260160 |
SEAL GASKET Ø10X14 MM SP=1 MM |
|
53 |
11903714 |
SCREW CONNECTOR M8 |
|
54 |
10260060 |
SEAL GASKET Ø8X12X1 MM |
|
56 |
15543021 |
HEXAGON BOLT M12X105 MM |
|
57 |
12646921 |
WASHER Ø12X28 MM |
|
59 |
15978030 |
HEXAGON BOLT M14X105 MM |
|
60 |
4604279 |
SPRING WASHER Ø14X32 MM SP=4 MM |
|
61 |
13543021 |
STUD M8X16X14 |
|
63 |
11198474 |
SPRING WASHER Ø10X27 MM |
|
64 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
66 |
4862376 |
COVER |
|
67 |
17883387 |
RUBBER PLUG |
|
68 |
61315661 |
HEXAGON BOLT M8X30 |
