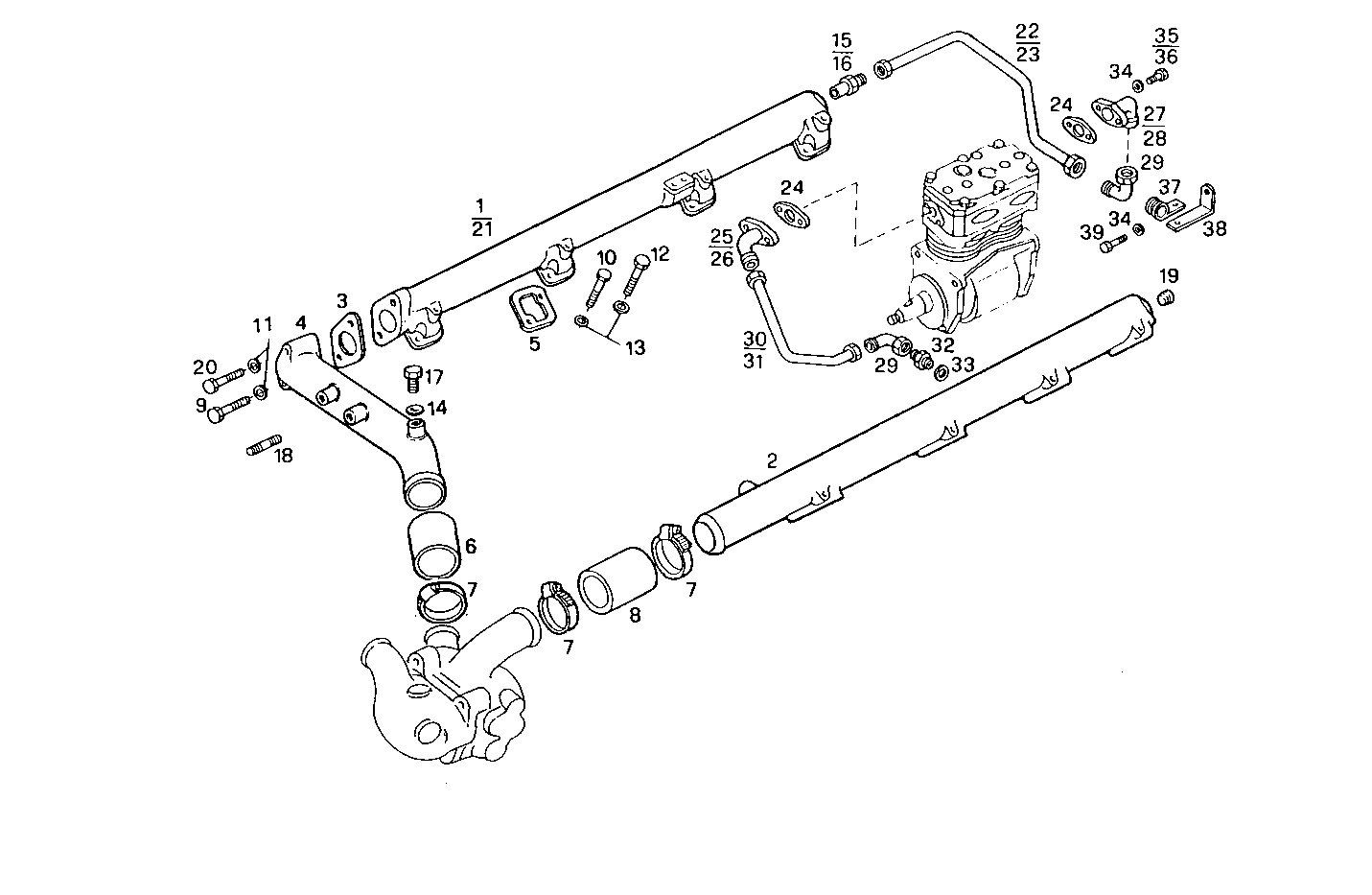

| Item |
Part number |
Description |
|
1 |
4821286 |
WATER MANIFOLD |
|
2 |
4821288 |
WATER MANIFOLD |
|
3 |
98469577 |
FLAT ENGINE GASKET |
|
4 |
4807830 |
WATER PIPE |
|
5 |
98418857 |
FLAT ENGINE GASKET |
|
6 |
98420476 |
WATER HOSE |
|
7 |
17764891 |
CLIP �40/60 MM |
|
8 |
98420477 |
WATER HOSE |
|
9 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
10 |
16606624 |
HEXAGON BOLT M8X80 MM |
|
11 |
17089874 |
WASHER �8X22 MM |
|
12 |
16605924 |
SCREW M8X40 MM |
|
13 |
12646721 |
WASHER �8X20 MM |
|
14 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
15 |
4821148 |
SCREW CONNECTOR [up to 307842] |
|
16 |
4824478 |
THREADED UNION [from 307843] |
|
17 |
10300611 |
LOCK PLUG M14X1,5 |
|
18 |
13516521 |
STUD M8X12 MM |
|
19 |
16994950 |
PLUG M24X1,5 |
|
20 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
21 |
99465794 |
WATER MANIFOLD �65-75 MM [from 307843] |
|
22 |
4821140 |
WATER PIPE �16 MM [up to 307842] |
|
23 |
99470505 |
WATER PIPE �15 MM [from 307843] |
|
24 |
4863497 |
FLAT ENGINE GASKET |
|
25 |
4821139 |
FLANGED SOCKET [up to 307842] |
|
26 |
4765060 |
ELBOW COUPLING [from 307843] |
|
27 |
99470516 |
FLANGED SOCKET ASSY [from 307843] |
|
29 |
16512119 |
ELBOW COUPLING |
|
30 |
4821137 |
WATER PIPE �16 MM [up to 307842] |
|
31 |
99465786 |
WATER PIPE [from 307843] |
|
32 |
4741602 |
THREADED UNION LEFT |
|
33 |
98429280 |
SEAL GASKET �20X26 MM SP=1,5 MM |
|
34 |
17089474 |
SPRING WASHER �8X16 MM SP=1,4 MM |
|
35 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
36 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
37 |
17315190 |
FASTENING BRACKET ENGINE |
|
38 |
99465802 |
FASTENING BRACKET BUNDY |
|
39 |
16505924 |
SCREW |
