8280SRC21.00

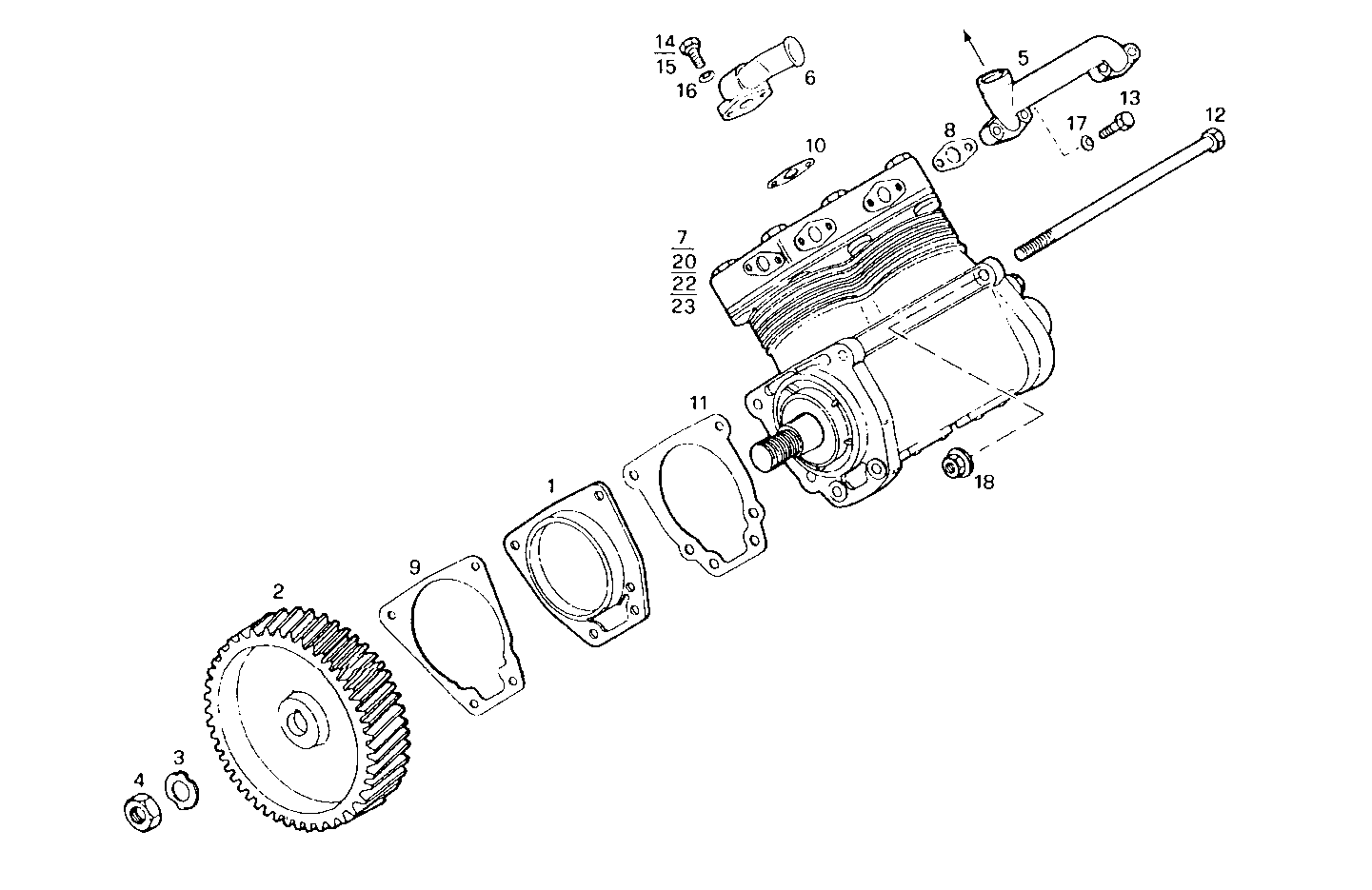

3800.018 AIR COMPRESSOR

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 4672628 SPACING BAR
2 4688638 COMP. DRIVE GEAR
3 4709364 LOCKING PLATE
4 4709365 HEXAGON NUT
5 4717885 CONNECTING PIPE
6 4774579 SUCTION LINE
7 4862091 AIR COMPRESSOR ASSY WABCO [up to 417852]
8 4863497 FLAT ENGINE GASKET
9 4863515 FLAT ENGINE GASKET
10 4863538 FLAT ENGINE GASKET
11 4864032 FLAT ENGINE GASKET
12 16162230 HEXAGON BOLT M10X1,25X290 MM
13 16605624 HEXAGON BOLT M8X25 MM (8.8)
14 16605924 SCREW M8X40 MM
15 16606024 SCREW M8X45 MM
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
17 17089574 WASHER Ø8X16 MM
18 14059411 HEXAGON NUT M10X1,25
20 98452939 AIR COMPRESSOR ASSY BENDIX [up to 415889]
22 4860565 AIR COMPRESSOR ASSY WABCO
23 98465003 AIR COMPRESSOR ASSY BENDIX [from 415890]
