8280SRC21.00

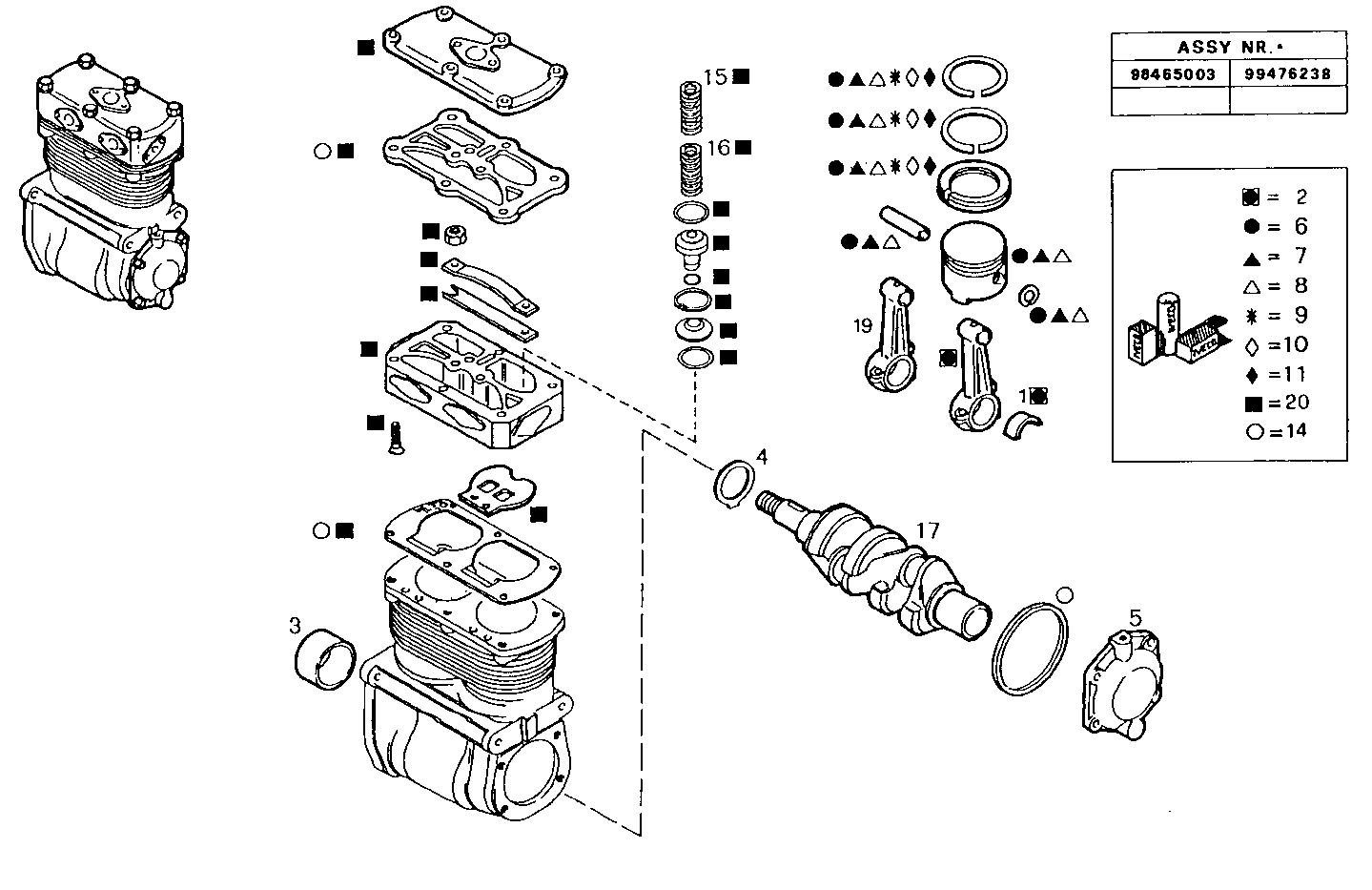

3830.014 AIR COMPRESSOR (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 9918517 | HALF-BEARING |
| 2 | 79069742 | KIT-AIR COMPRESSOR |
| 3 | 79098371 | BUSH |
| 4 | 79098372 | RING |
| 5 | 93159347 | COVER |
| 6 | 93161302 | KIT-AIR COMPRESSOR Ø80 MM |
| 7 | 93161303 | KIT-AIR COMPRESSOR Ø80,2MM |
| 8 | 93161304 | KIT-AIR COMPRESSOR Ø80,5MM |
| 9 | 93161305 | KIT-AIR COMPRESSOR Ø80 MM |
| 10 | 93161306 | KIT-AIR COMPRESSOR Ø80,2MM |
| 11 | 93161307 | KIT-AIR COMPRESSOR Ø80,5MM |
| 14 | 93161411 | KIT-AIR COMPRESSOR |
| 17 | 93190963 | COMPR.CRANKSHAFT |
| 19 | 93190969 | COMPRESS.CONN.ROD ASSY |
| 20 | 93161842 | KIT-AIR COMPRESSOR |
