8280SRC21.00

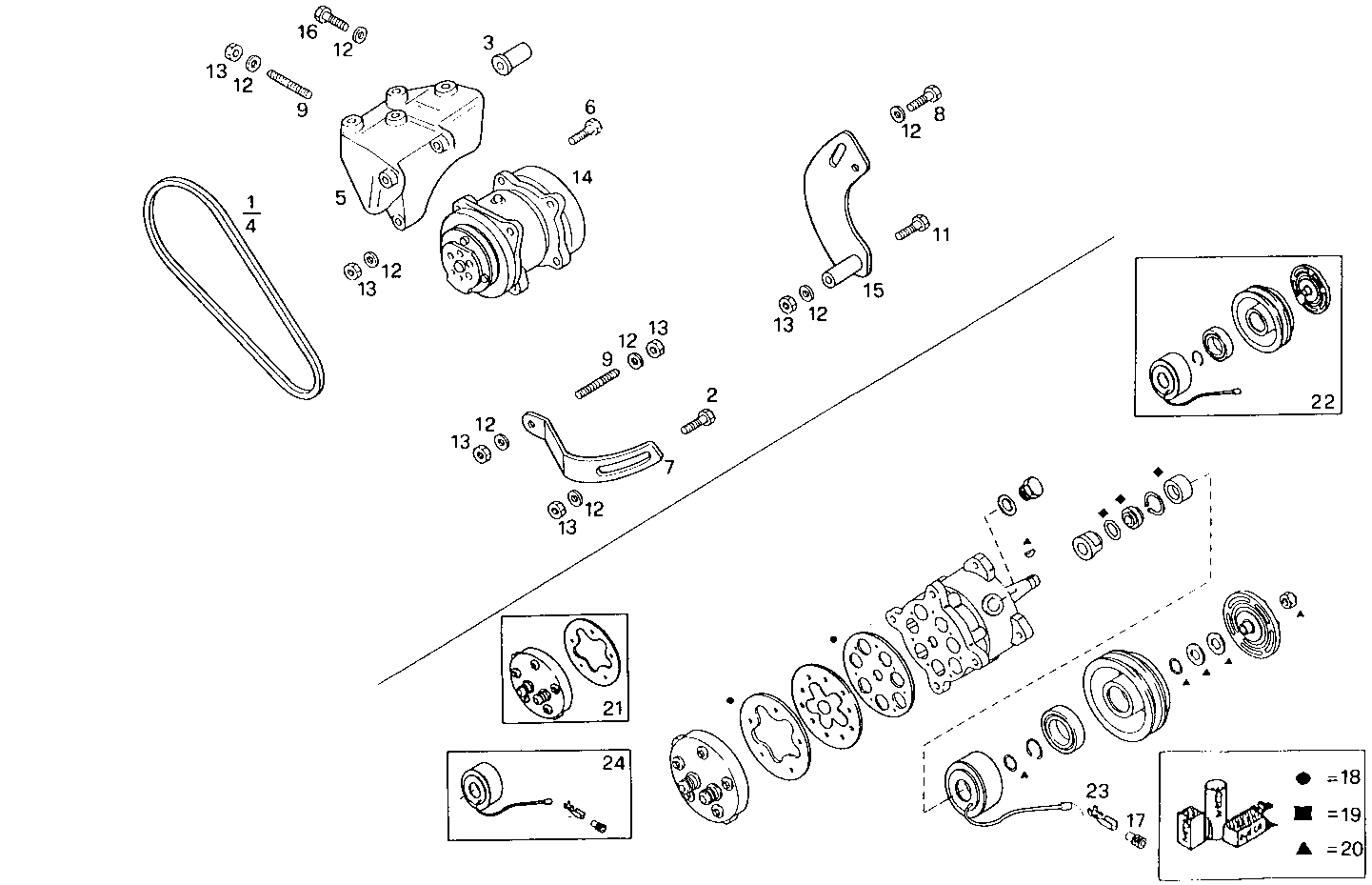

3900.001 COMPRESSOR AIR CONDITIONING
| Item | Part number | Description |
|---|---|---|
| 1 | 4716471 | V-BELT |
| 2 | 4786733 | THREADED PIN |
| 3 | 4810441 | BEARING BUSH |
| 4 | 4838527 | V-BELT |
| 5 | 4859863 | SUPPORT |
| 6 | 4860036 | HEXAGON BOLT |
| 7 | 4860037 | BRACE/STRUT |
| 8 | 11227934 | HEXAGON BOLT |
| 9 | 13546321 | STUD M10X25 MM |
| 11 | 15971821 | SCREW M10X1,25X100 |
| 12 | 17095004 | WASHER Ø10X18X2 MM |
| 13 | 17153021 | HEXAGON NUT M10X1,25 |
| 14 | 98462948 | AIR COND.COMPRESS. |
| 15 | 99431245 | BRACE/STRUT ASSY |
| 16 | 15971630 | HEXAGON BOLT M10X90 MM [up to ...] |
| 17 | 4861936 | RUBBER BUSH YELLOW |
| 18 | 93161547 | KIT-SEAL.GASKETS |
| 19 | 93161548 | KIT-SEAL.GASKETS |
| 20 | 93161549 | KIT-AIR CONDITION |
| 21 | 93192364 | HEADPIECE |
| 22 | 93192365 | SOLENOID ASSY |
| 23 | 98435370 | TERMINAL SEZ 0,5-1,5 MMQ |
| 24 | 93192576 | SOLENOID |
