8280SRC21.10

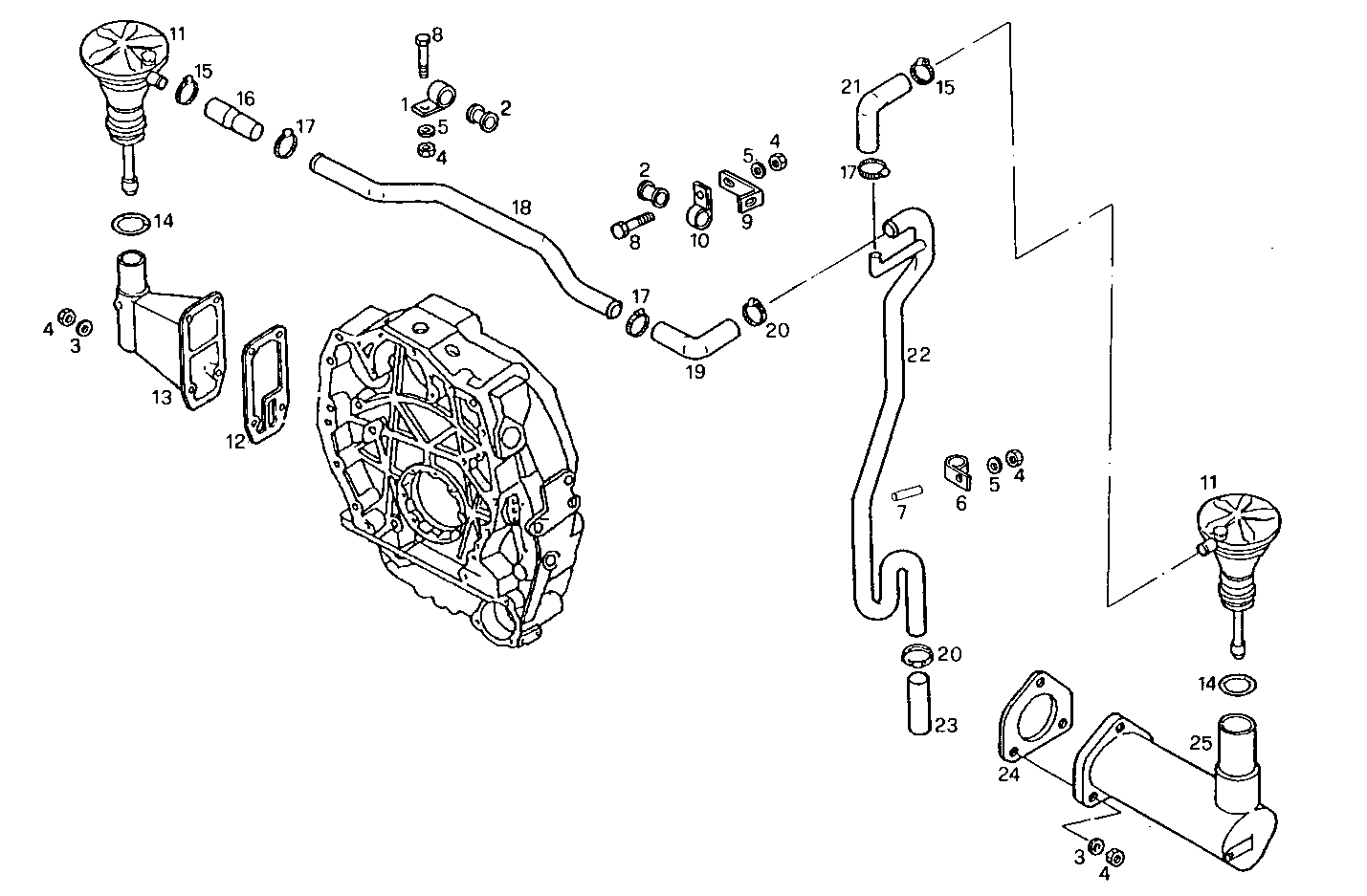

0450.110 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4760226 FASTENING BRACKET
2 4747140 RUBBER PAD
3 17094914 WASHER 8x16
4 17037931 HEXAGON NUT M8X1,25
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 17317490 FASTENING BRACKET Ø30 MM
7 17816111 SPACING BAR Ø8,5X18 MM SP=8 MM
8 16605624 HEXAGON BOLT M8X25 MM (8.8)
9 4807826 RETAINER
10 4810595 FASTENING BRACKET
11 61320629 BREATHER
12 4863495 FLAT ENGINE GASKET
13 99465199 SUPPORT RIGHT
14 98438032 O-RING
15 17764692 CLIP Ø25/40 MM
16 99452230 RUBBER SLEEVE Ø50 MM
17 17764592 CLIP Ø20/32 MM
18 99470502 BREATHER PIPE
19 4865232 RUBBER SLEEVE
20 17764792 HOSE CLIP Ø32-50 MM
21 98437331 RUBBER SLEEVE
22 99470570 BREATHER PIPE Ø15 MM
23 99470789 RUBBER SLEEVE Ø30 MM L=300 MM
24 4863490 FLAT ENGINE GASKET
25 99447187 SUPPORT LEFT
