8280SRC21.10

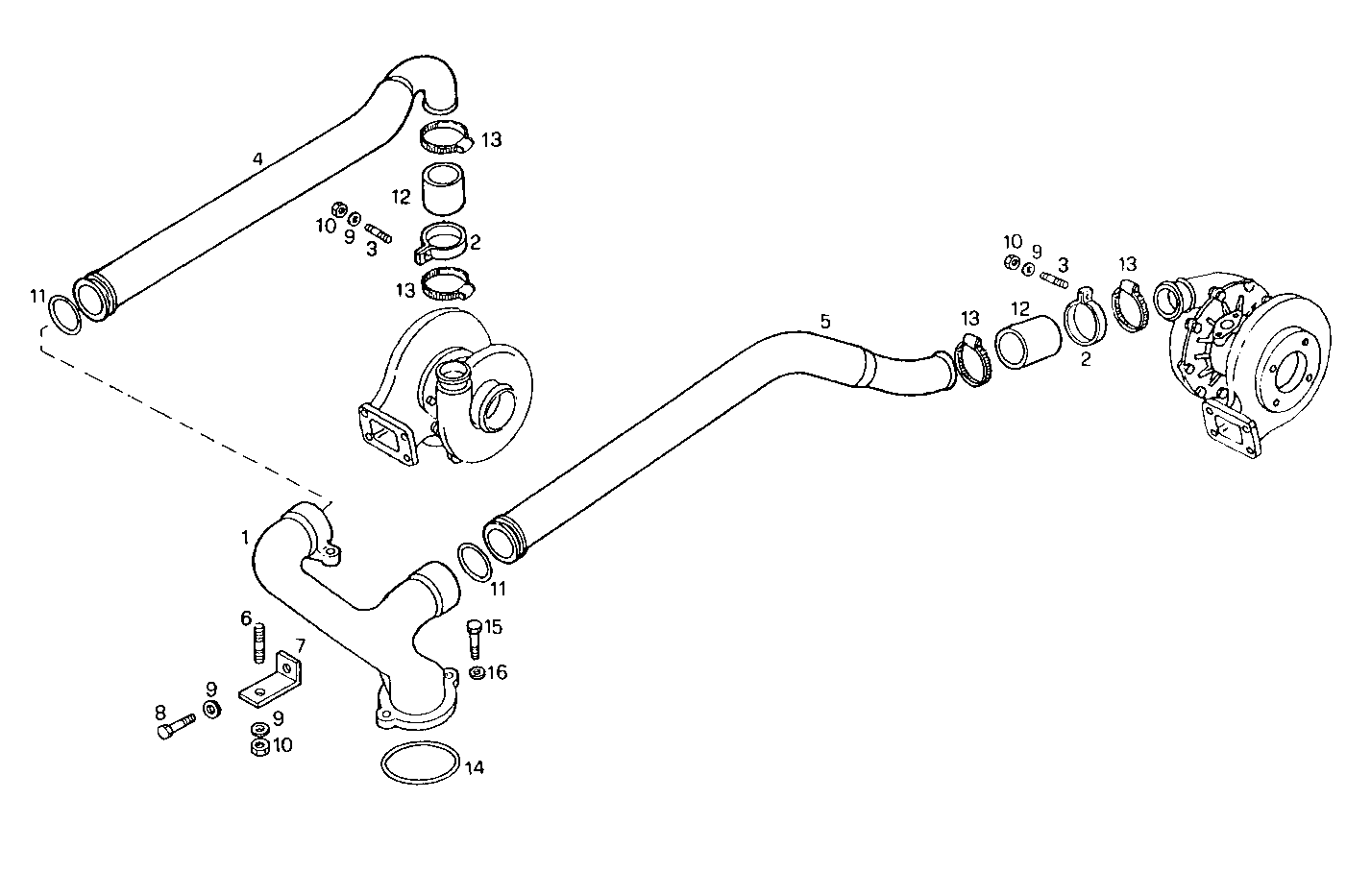

2420.147 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 98164535 AIR HOOD
2 4807824 PIPE CLIP
3 13517021 STUD M8X25 MM
4 99465744 AIR PIPE/DUCT [from 307843]
5 99447188 AIR PIPE/DUCT [from 307843]
6 13516621 STUD M8X16 MM
7 98164596 RETAINER
8 16605524 HEXAGON BOLT M8X20 MM
9 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
10 17037931 HEXAGON NUT M8X1,25
11 14471781 O-RING Ø66 MM SP=5,33 MM
12 98420479 WATER HOSE
13 17764891 CLIP Ø40/60 MM
14 17291181 O-RING Ø91,67 MM SP=3,53 MM
15 16605924 SCREW M8X40 MM
16 17094914 WASHER 8x16
