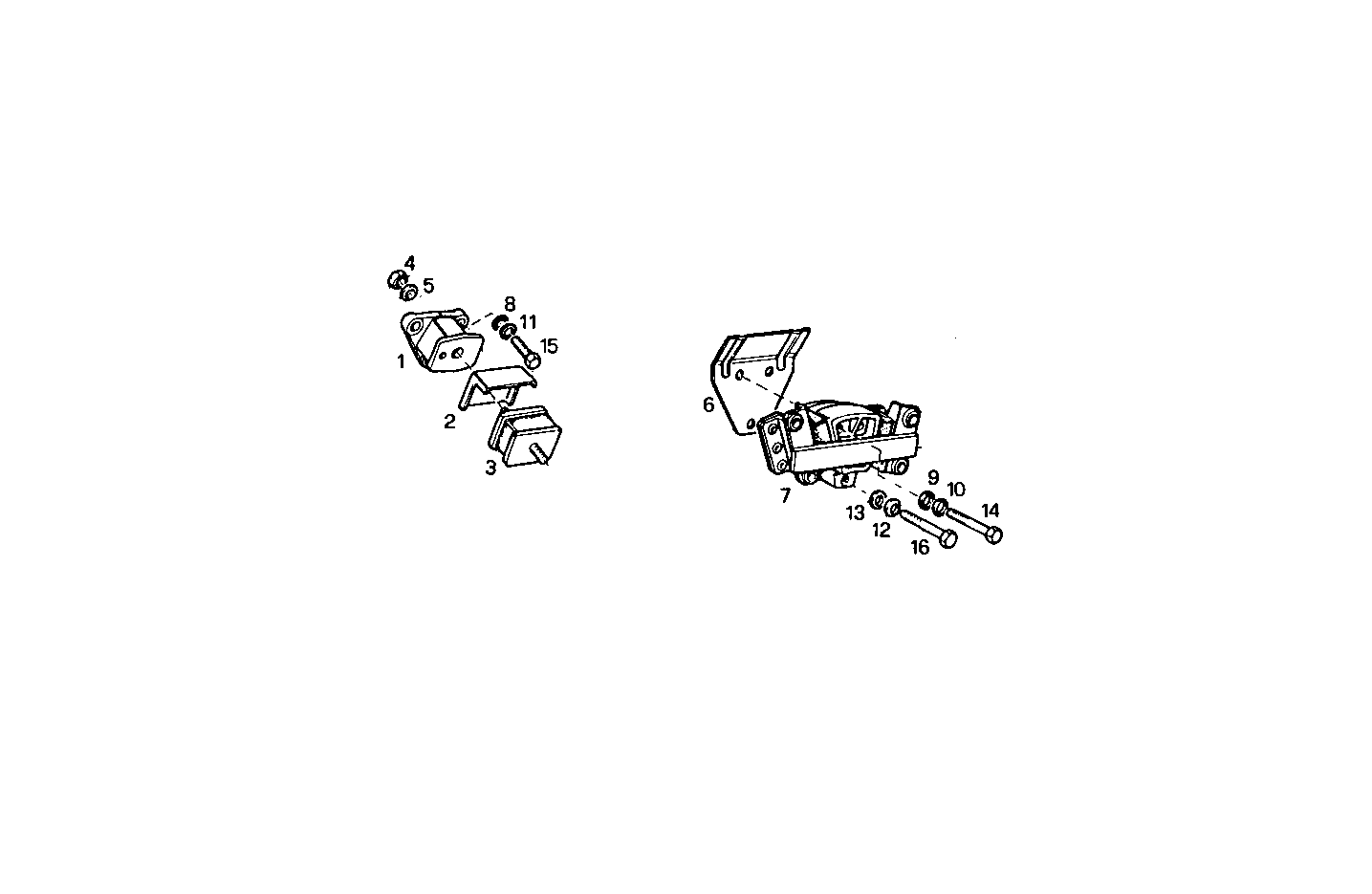

A04110001 ENGINE SUSPENSION - truck type
| Item | Part number | Description |
|---|---|---|
| 1 | 4677247 | FRONT ENG. MOUNT |
| 2 | 4677251 | PROTECTION |
| 3 | 4677249 | ENGINE SILENTBLOCK |
| 4 | 4609027 | UNION NUT |
| 5 | 4622654 | WASHER |
| 6 | 4697695 | PROTECTION |
| 7 | 4692272 | ENGINE SILENTBLOCK |
| 8 | 10520001 | WASHER �12X22 MM |
| 9 | 10520201 | SPRING WASHER �16,4 MM |
| 10 | 11194271 | WASHER �16X32X3,4 MM |
| 11 | 11198671 | SPRING WASHER �13 MM |
| 12 | 11200371 | SPRING WASHER �19,4 MM |
| 13 | 14497001 | WASHER |
| 14 | 11369624 | SCREW |
| 15 | 15540624 | SCREW |
| 16 | 15985624 | SCREW |
