8281i03.00

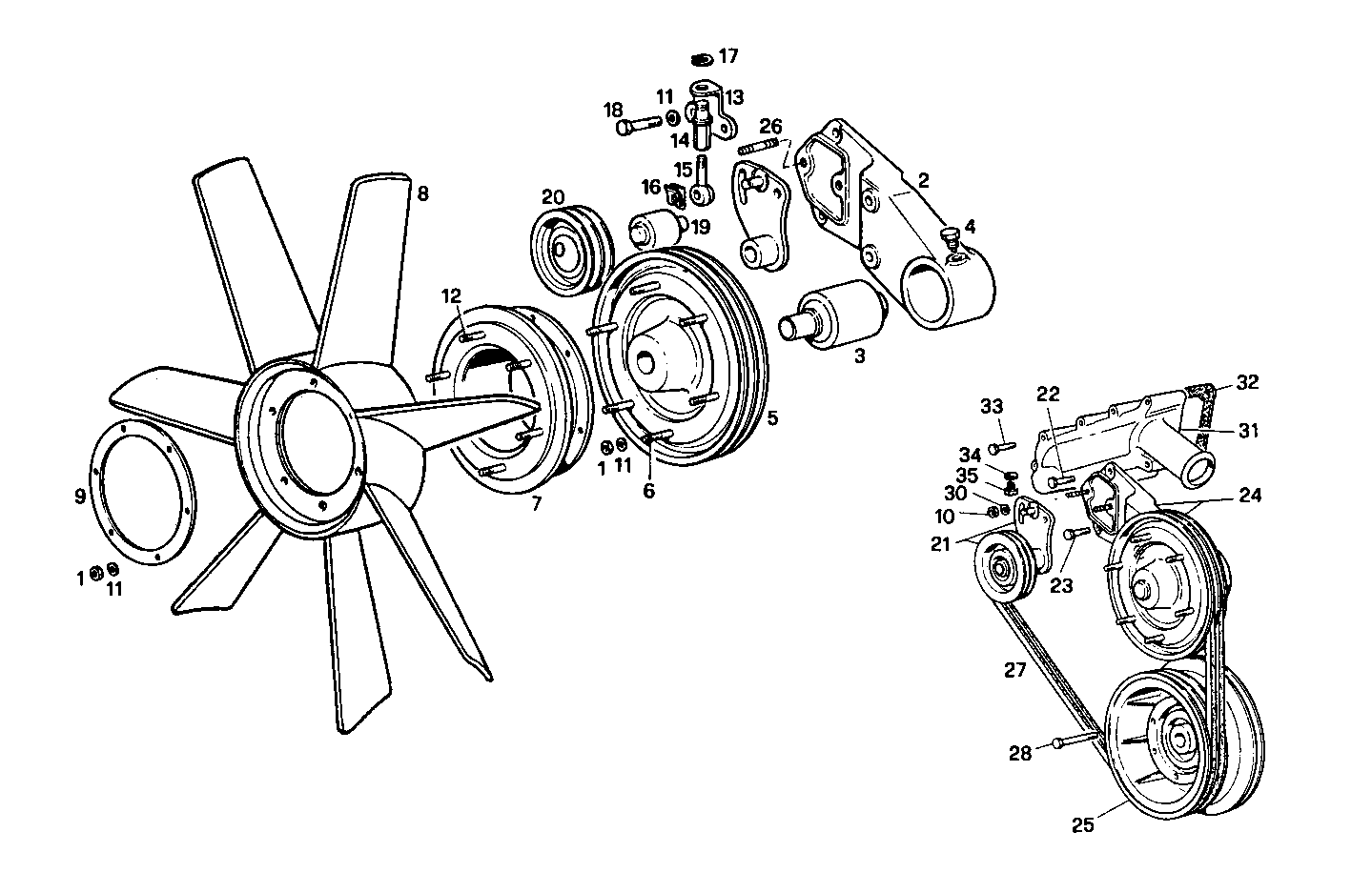

A08020007 OVERSIZE PUSHER FAN - high position
| Item |
Part number |
Description |
|
1 |
17037931 |
HEXAGON NUT M8X1,25 |
|
2 |
4750226 |
SUPPORT |
|
3 |
4708256 |
ENGINE BEARINGS |
|
4 |
4606033 |
SCREW |
|
5 |
4750425 |
WATER PUMP PULLEY |
|
6 |
13516821 |
STUD M8X12X20 MM |
|
7 |
4936688 |
HUB |
|
8 |
4935522 |
FAN Ø650 MM |
|
9 |
4933279 |
RING |
|
10 |
13598014 |
CASTLE NUT |
|
11 |
11193879 |
SPRING WASHER Ø8X16 MM |
|
12 |
13516621 |
STUD M8X16 MM |
|
13 |
4718512 |
RETAINER |
|
14 |
4699000 |
NUT |
|
15 |
4699001 |
TIE ROD |
|
16 |
4699549 |
CLIP |
|
17 |
13400676 |
CIRCLIP |
|
18 |
16043421 |
HEXAGON BOLT M8X20 MM |
|
19 |
4731484 |
ENGINE BEARINGS |
|
20 |
4732585 |
WATER PUMP PULLEY |
|
21 |
4734285 |
BELT TENSIONER ASSY |
|
22 |
16045821 |
HEXAGON BOLT M8X130 MM |
|
23 |
16046321 |
HEXAGON BOLT M8X160 MM |
|
24 |
4751127 |
SUPPORT ASSY |
|
25 |
4750423 |
WATER PUMP PULLEY |
|
26 |
13449721 |
STUD M10X15X30 |
|
27 |
500370647 |
V-BELT |
|
28 |
14256530 |
LOCKING SCREW |
|
30 |
4513436 |
SUPPORT RING Ø10X21X2 MM |
|
31 |
4808086 |
HEAT EXANGER BODY |
|
32 |
4863521 |
FLAT ENGINE GASKET |
|
33 |
16046121 |
HEXAGON BOLT M8X1,25X100 |
|
34 |
10260960 |
GASKET |
|
35 |
4753536 |
PLUG |
