8281i03.00

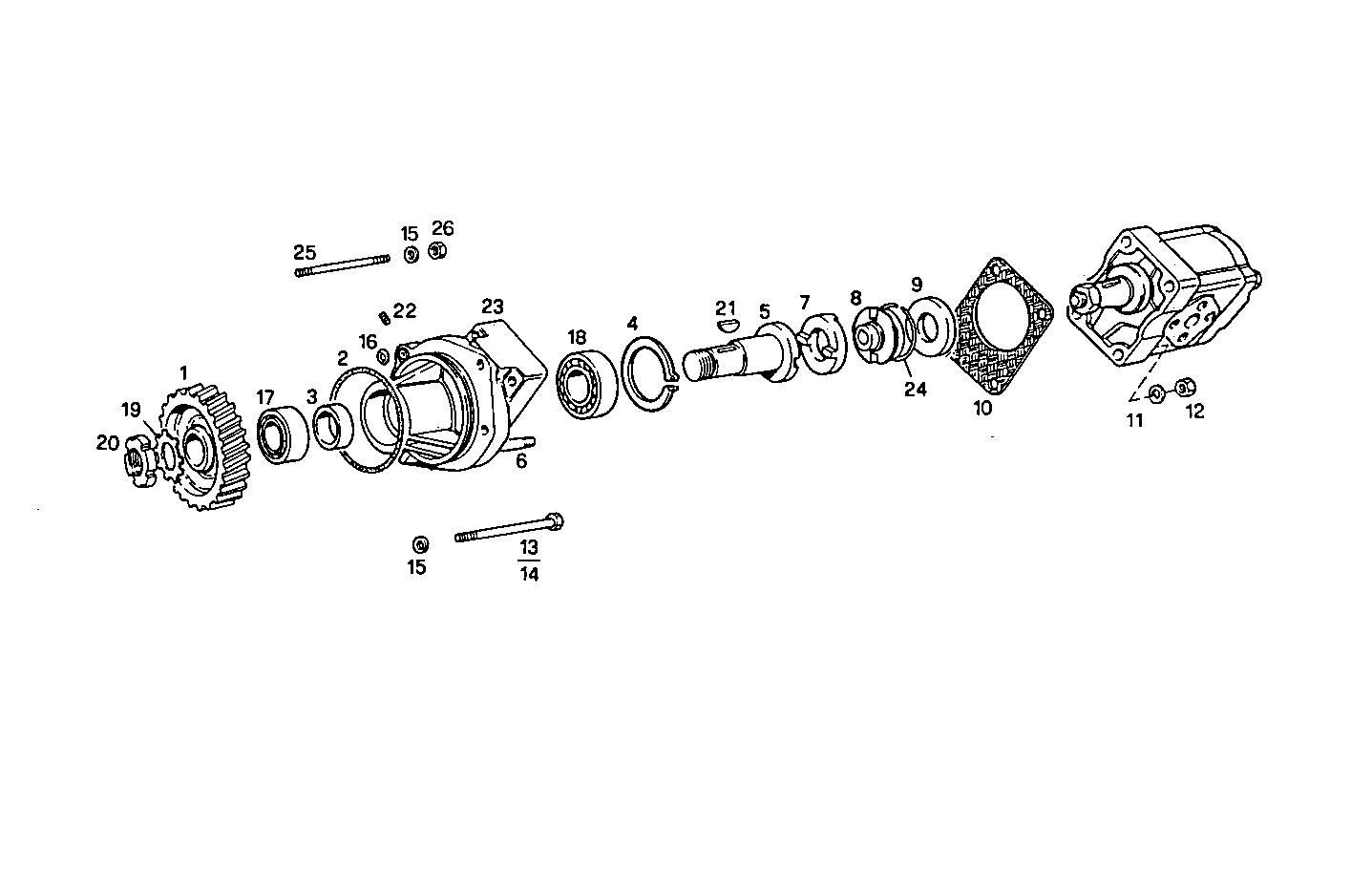

A09080019 ARRANGED FOR HYDRAULIC PUMP - loose

Iveco/FPT ARRANGED FOR HYDRAULIC PUMP

Item Part number Description
1 4671828 DRIVE GEAR
2 17291781 O-RING Ø110,72 MM SP=3,53
3 8013559 SPACING BAR
4 16873973 CIRCLIP
5 8013530 SHAFT
6 16745224 STUD M6X12X30
7 4526899 RING
8 4547495 CONNECTOR SLEEVE
9 4677821 RING
10 4863489 FLAT ENGINE GASKET
11 17088474 WASHER Ø6X12 MM
12 17037821 HEXAGON NUT M6X1
13 15972221 SCREW M10X1,25X120
14 15972821 HEXAGON BOLT M10X150 MM
15 17090174 SPRING WASHER Ø10X20 MM
16 17277981 O-RING 1,78x9,25
17 8013560 DRIVE BEARING
18 8013561 DRIVE BEARING
19 8013562 WASHER
20 8013563 FASTENING RING
21 17224220 KEY
22 17436774 THREADED INSERT M6
23 8013557 SUPPORT
24 4526900 CIRCLIP
25 13546321 STUD M10X25 MM
26 17038221 HEXAGON NUT M10
