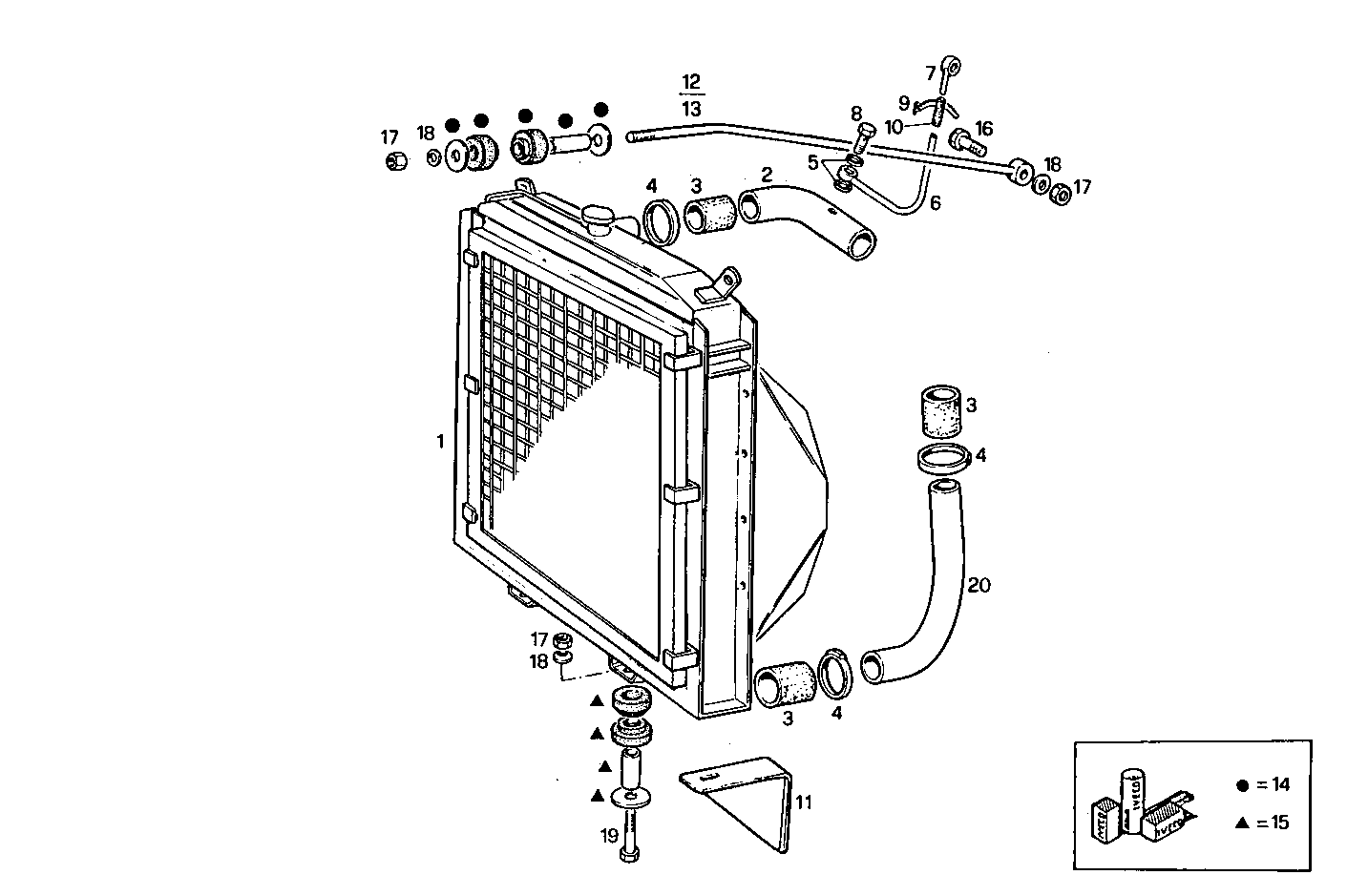

| Item |
Part number |
Description |
|
1 |
8009968 |
WATER RADIATOR ASSY |
|
2 |
4931682 |
WATER PIPE |
|
3 |
10143486 |
RUBBER SLEEVE |
|
4 |
12174890 |
CLIP Ø62-82 MM |
|
5 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
6 |
8014076 |
WATER PIPE |
|
7 |
8014075 |
PIPE SOCKET |
|
8 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
9 |
12173690 |
CLIP Ø14-22 MM |
|
10 |
4927825 |
WATER HOSE |
|
11 |
4232851 |
SUPPORT |
|
12 |
4931160 |
TIE ROD RIGHT |
|
13 |
4931159 |
TIE ROD LEFT |
|
14 |
8090413 |
KIT-RADIATOR A.S. COMPLETE |
|
15 |
8090977 |
KIT-RADIATOR A.S. COMPLETE |
|
16 |
15541021 |
HEXAGON BOLT M12X1,25X60 MM |
|
17 |
16101511 |
HEXAGON NUT M12X1,25 |
|
18 |
11198671 |
SPRING WASHER Ø13 MM |
|
19 |
15541221 |
HEXAGON BOLT M12X1,25X70 MM [up to 565948] |
|
20 |
4933510 |
WATER PIPE |
