8281i03.00

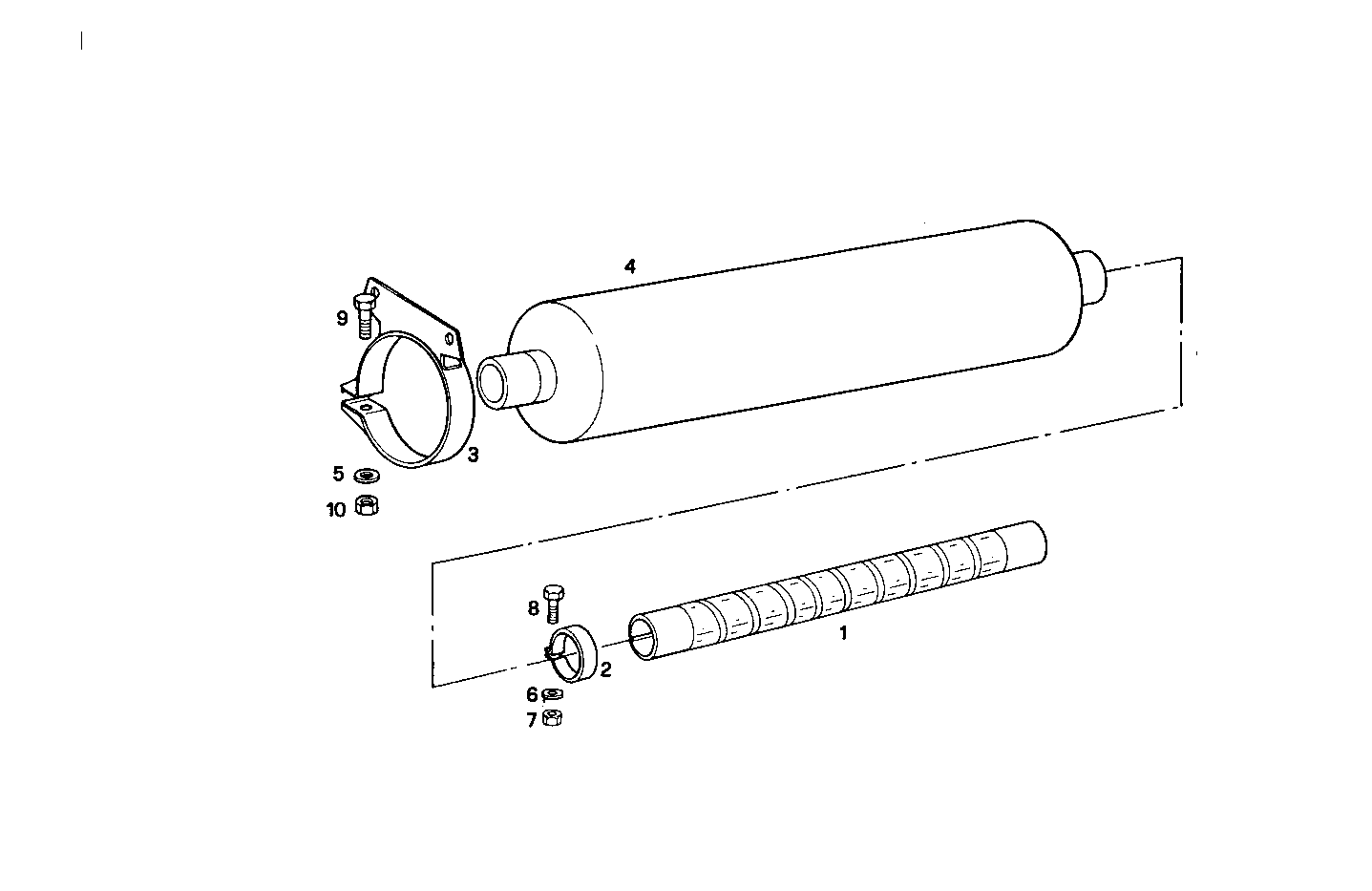

A23030011 HORIZONTAL SILENCER
| Item | Part number | Description |
|---|---|---|
| 1 | 4514684 | EXHAUST HOSE |
| 2 | 4514685 | CLIP |
| 3 | 4621724 | CLIP |
| 4 | 4686859 | SILENCER |
| 5 | 11198071 | SPRING WASHER Ø8X15 SP=1,4 MM |
| 6 | 11198371 | SPRING WASHER Ø10X20 MM |
| 7 | 12164740 | HEXAGON NUT M10X1,25 |
| 8 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 9 | 16043621 | HEXAGON BOLT M8X25 MM |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
