8281i03.00

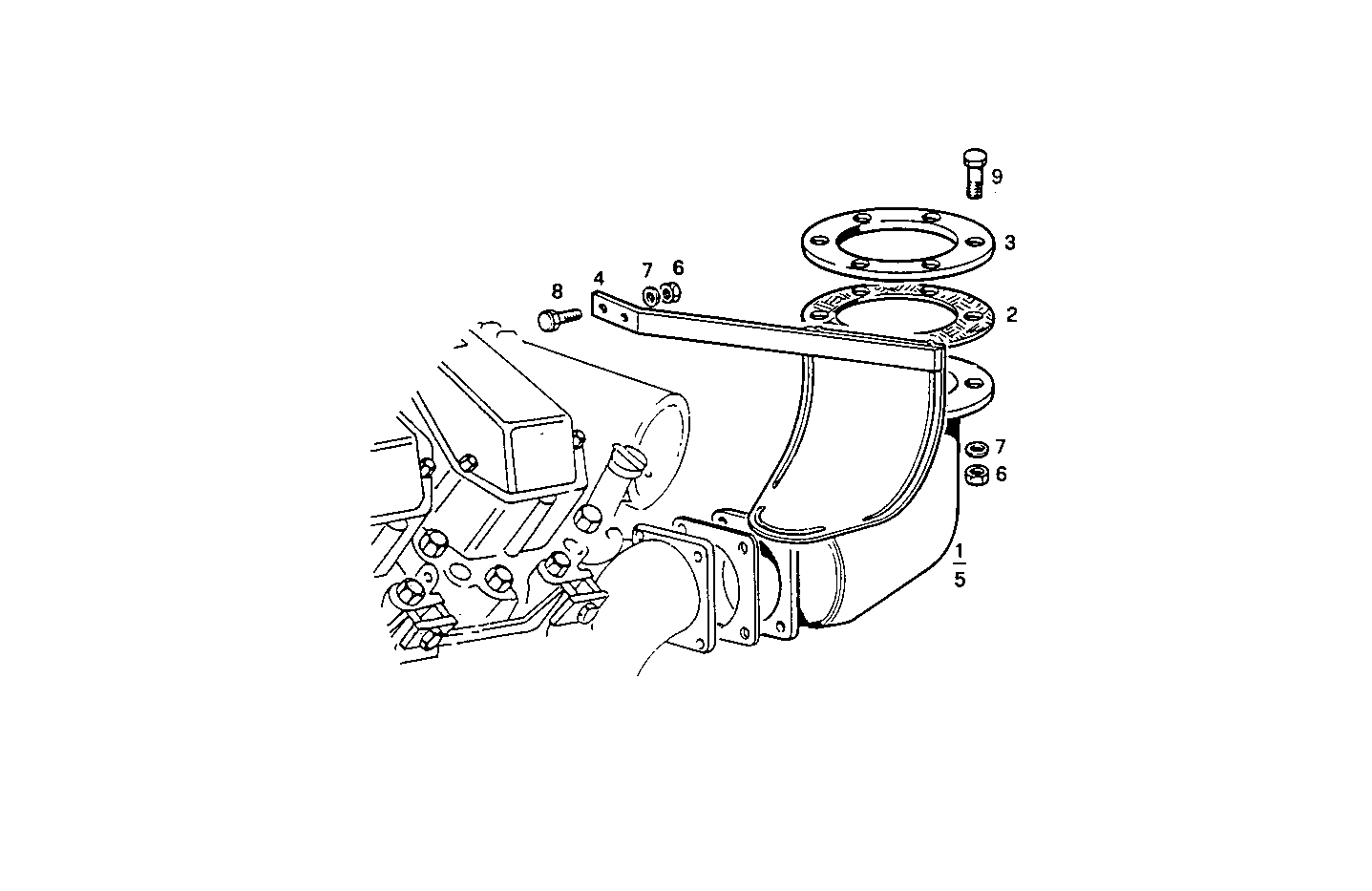

A40000004 UPWARD REAR EXHAUST ELBOW - with compressor
| Item | Part number | Description |
|---|---|---|
| 1 | 8107518 | EXHAUST ELBOW RIGHT |
| 2 | 8009606 | GASKET |
| 3 | 4919183 | FLANGE |
| 4 | 4931622 | PROTECTION |
| 5 | 4935694 | EXHAUST ELBOW LEFT |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 11193879 | SPRING WASHER Ø8X16 MM |
| 8 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 9 | 16625734 | HEXAGON BOLT M8X35 |
