8281i03.00

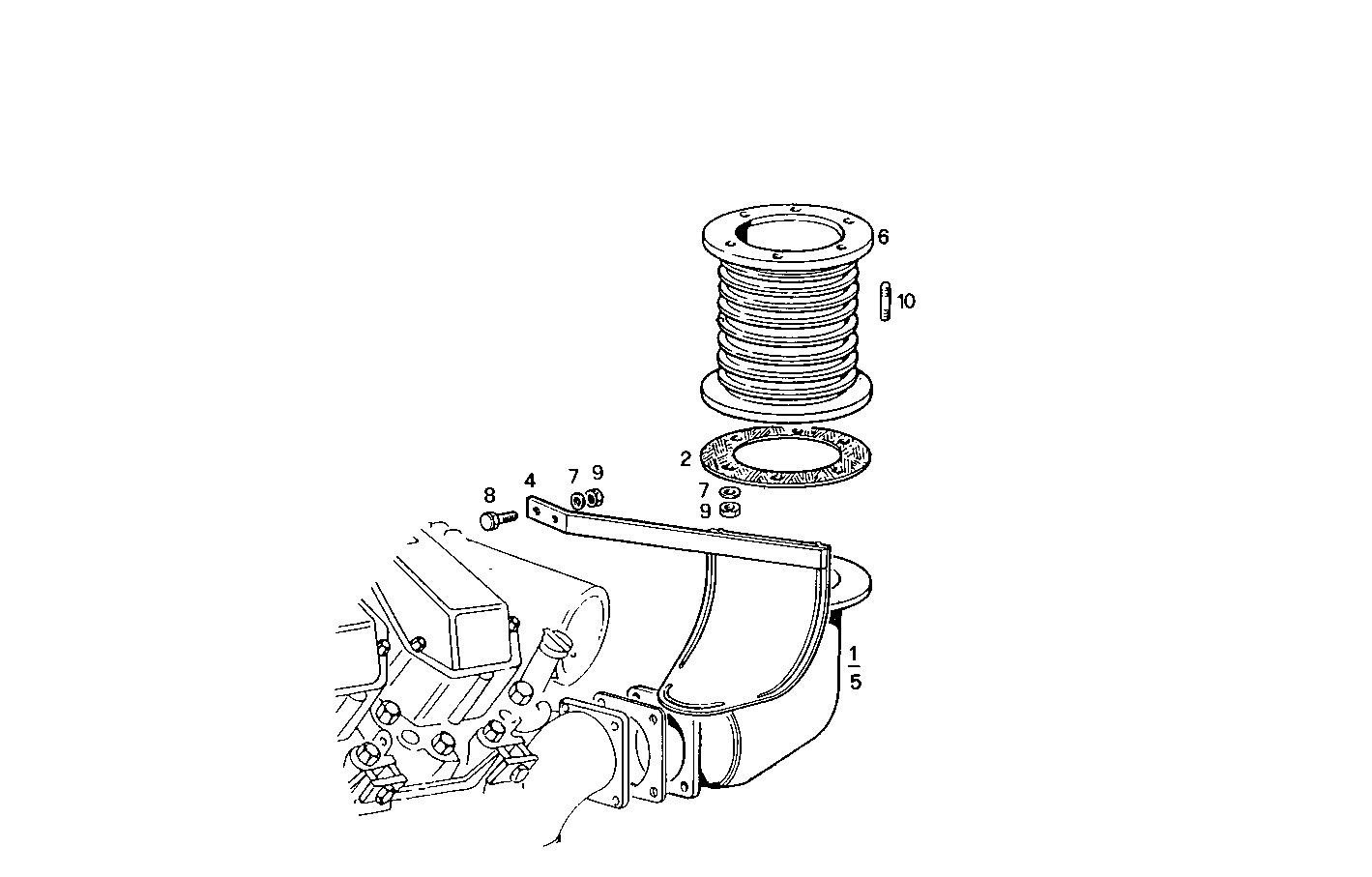

A40010002 TURNING EXHAUST ELBOW WITH BELLOWS - without compressor
| Item | Part number | Description |
|---|---|---|
| 1 | 8110591 | EXHAUST ELBOW RIGHT |
| 2 | 8009606 | GASKET |
| 4 | 4931622 | PROTECTION |
| 5 | 4935694 | EXHAUST ELBOW LEFT |
| 6 | 4935378 | EXHAUST BELLOWS |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 13516921 | STUD M8X12X22 MM |
