8281i03.00

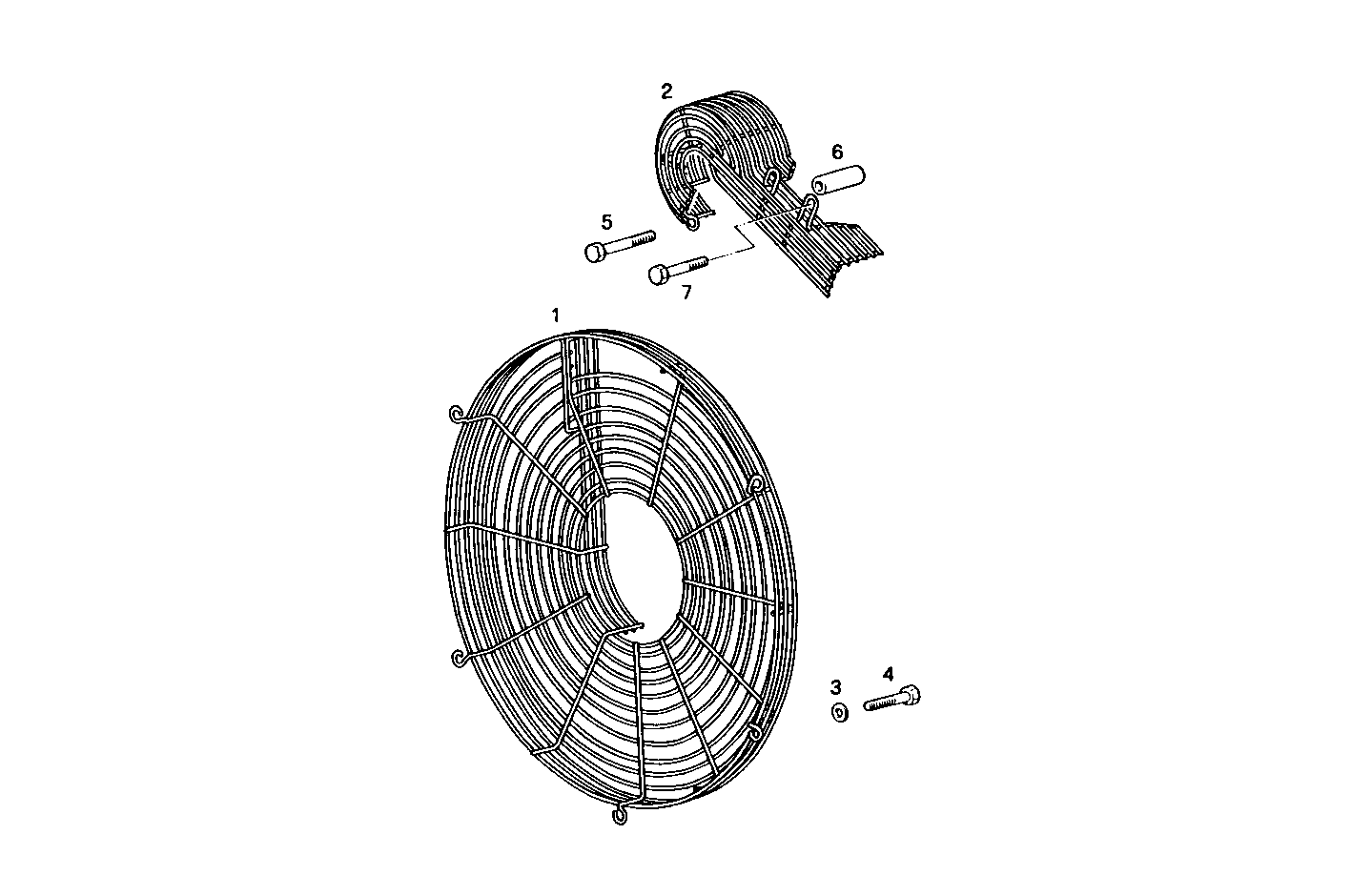

A48010005 GUARD - for fan and belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8102339 | PROTECTION |
| 2 | 8101182 | PROTECTION |
| 3 | 11193971 | SPRING WASHER Ø8,4 MM |
| 4 | 16043221 | HEXAGON BOLT M8X16 MM |
| 5 | 11307021 | HEXAGON BOLT M10X40 MM |
| 6 | 8101243 | SPACING BAR |
| 7 | 15542321 | HEXAGON BOLT M12X1,25X170 MM |
