8281i03.00

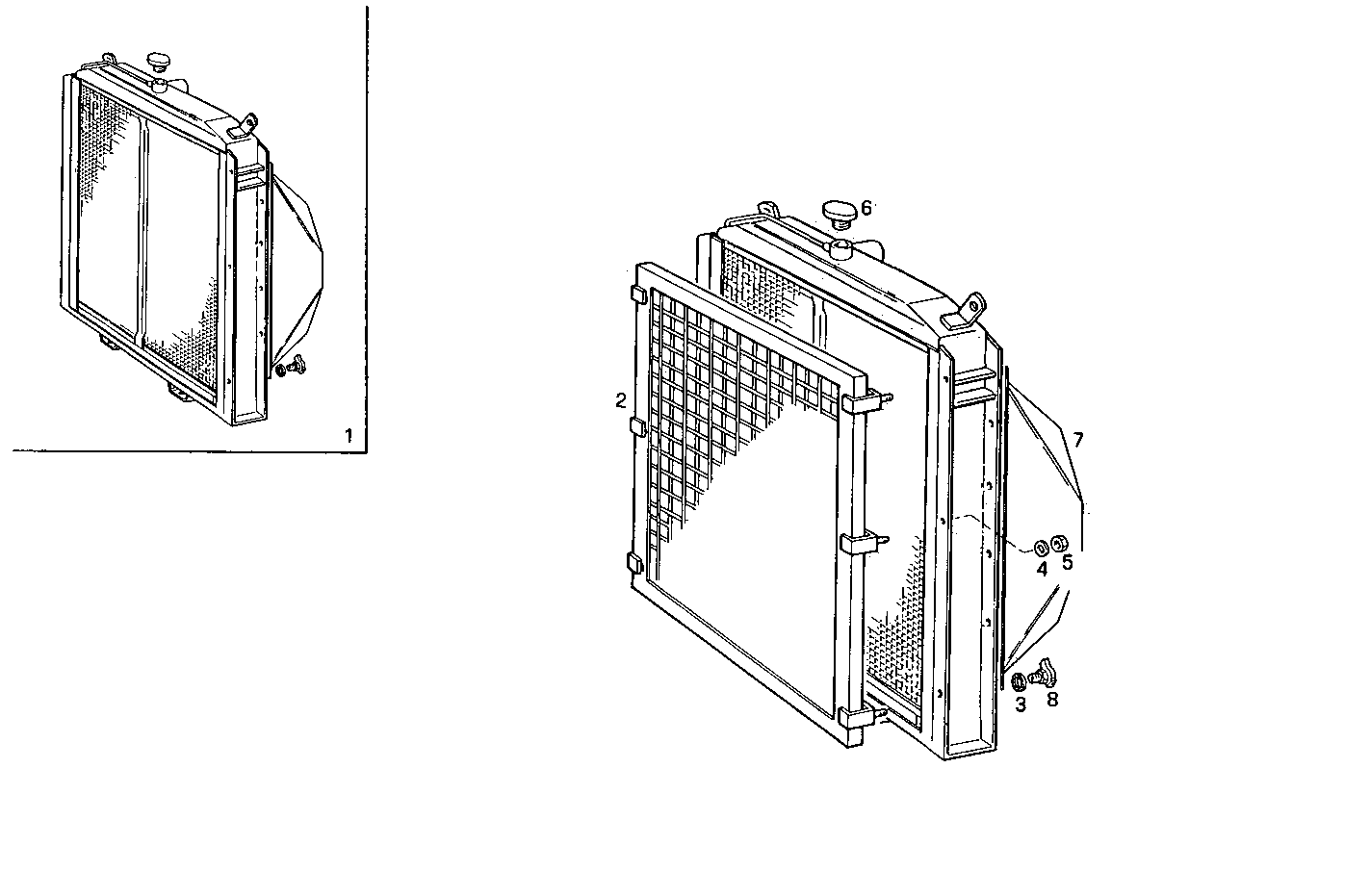

T2240001 RADIATOR - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 4930997 | WATER RADIATOR ASSY |
| 2 | 4931989 | PROTECTION |
| 3 | 10296680 | SEAL GASKET Ø16,2 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 4930369 | PLUG |
| 7 | 4933412 | AIR HOOD |
| 8 | 10849390 | DRAIN COCK |
