8281I03.00A803

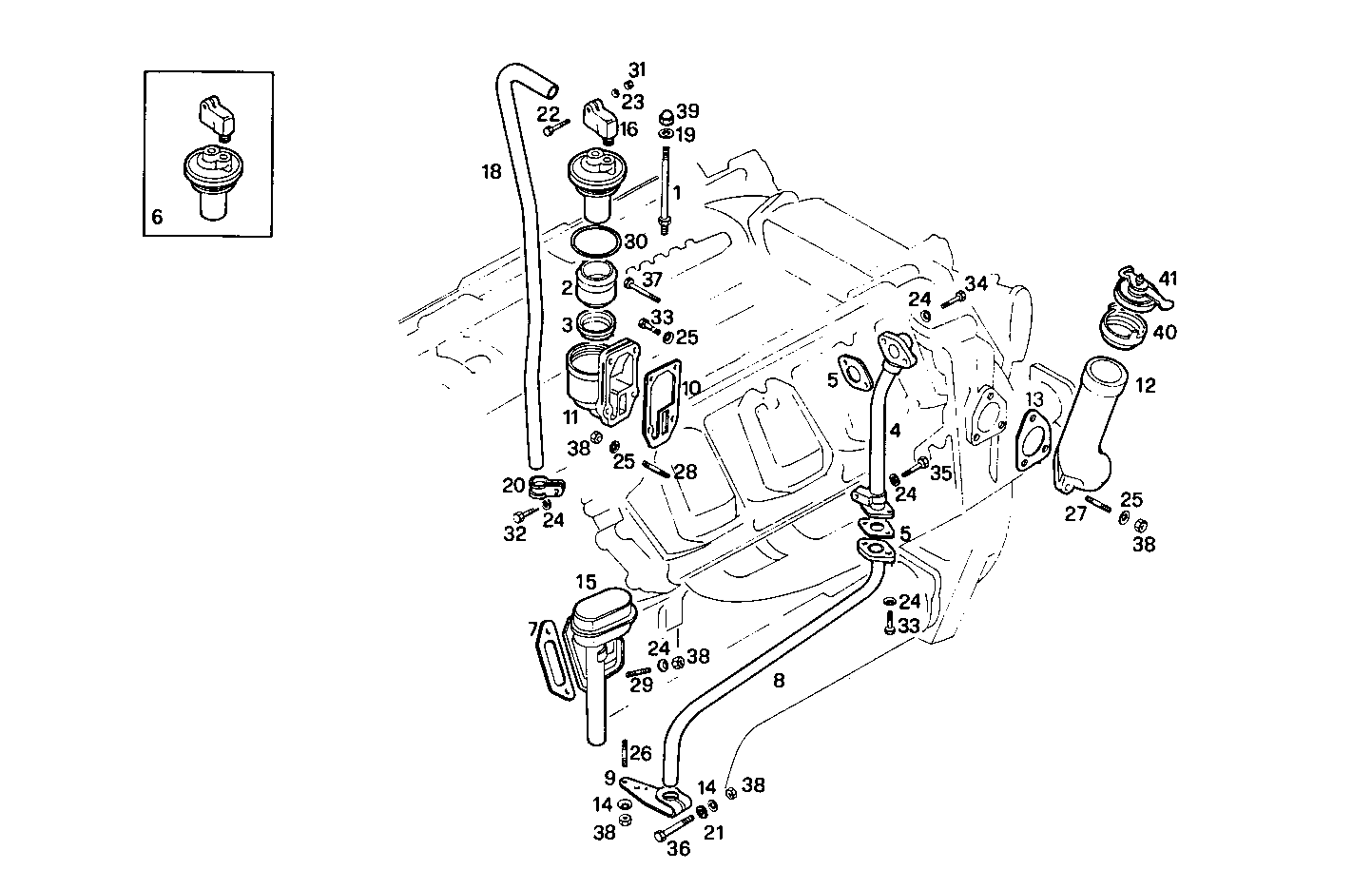

0450.031 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4816498 | STUD |
| 2 | 4653223 | BEARING HOUSING |
| 3 | 4653228 | RUBBER GASKET |
| 4 | 4672725 | PIPE TOP |
| 5 | 4863531 | FLAT ENGINE GASKET |
| 6 | 4816783 | COVER |
| 7 | 4863491 | FLAT ENGINE GASKET |
| 8 | 4673572 | BREATHER PIPE |
| 9 | 4673574 | RETAINER |
| 10 | 4863495 | FLAT ENGINE GASKET |
| 11 | 4687332 | SUPPORT |
| 12 | 4687394 | FILLER NECK |
| 13 | 4863490 | FLAT ENGINE GASKET |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 15 | 4696239 | BREATHER |
| 16 | 4709332 | THREADED UNION |
| 18 | 4702172 | BREATHER PIPE |
| 19 | 4858605 | WASHER Ø8X12 MM |
| 20 | 10450690 | PIPE CLIP Ø20 MM |
| 21 | 17094914 | WASHER 8x16 |
| 22 | 16604024 | HEXAGON BOLT M6X35 MM |
| 23 | 17088474 | WASHER Ø6X12 MM |
| 24 | 17089574 | WASHER Ø8X16 MM |
| 25 | 17089874 | WASHER Ø8X22 MM |
| 26 | 16729224 | STUD M8X16 MM |
| 27 | 16729424 | STUD M8X1,25X25 |
| 28 | 13517221 | STUD M8X12X30 MM |
| 29 | 13543121 | STUD M8X16 MM |
| 30 | 17290781 | O-RING Ø78,97X3,53 MM |
| 31 | 17037821 | HEXAGON NUT M6X1 |
| 32 | 16043011 | SCREW |
| 33 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 34 | 16605734 | HEXAGON BOLT M8X30 MM |
| 35 | 16605824 | HEXAGON BOLT M8X35 MM |
| 36 | 16605924 | SCREW M8X40 MM |
| 37 | 16606524 | HEXAGON BOLT M8X70 MM |
| 38 | 17037931 | HEXAGON NUT M8X1,25 |
| 39 | 16109611 | HEXAGON NUT M8X1,25 |
| 40 | 61228426 | PLUG |
| 41 | 61688466 | PLUG |
